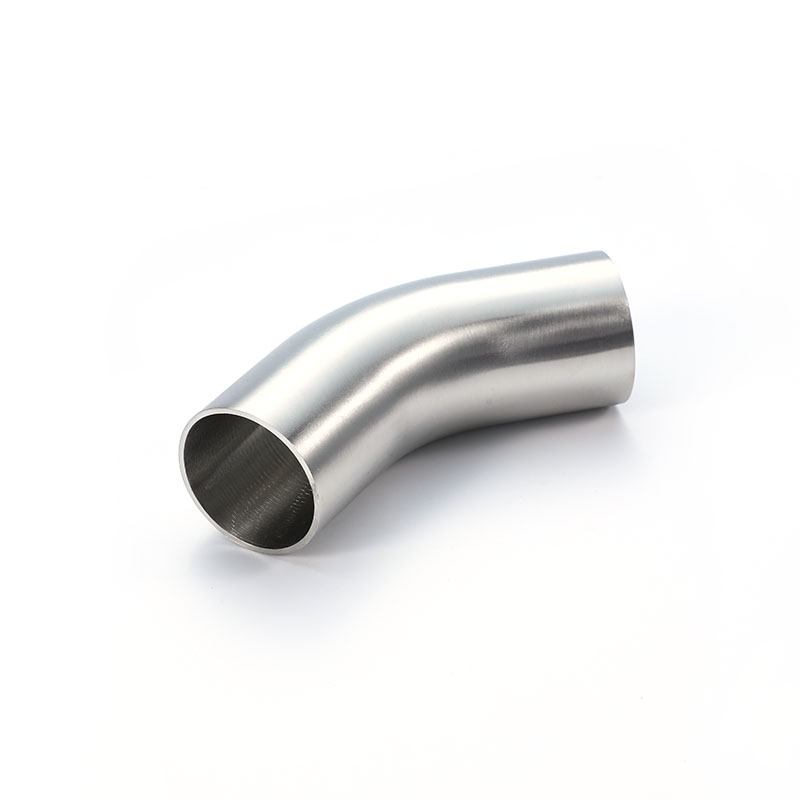

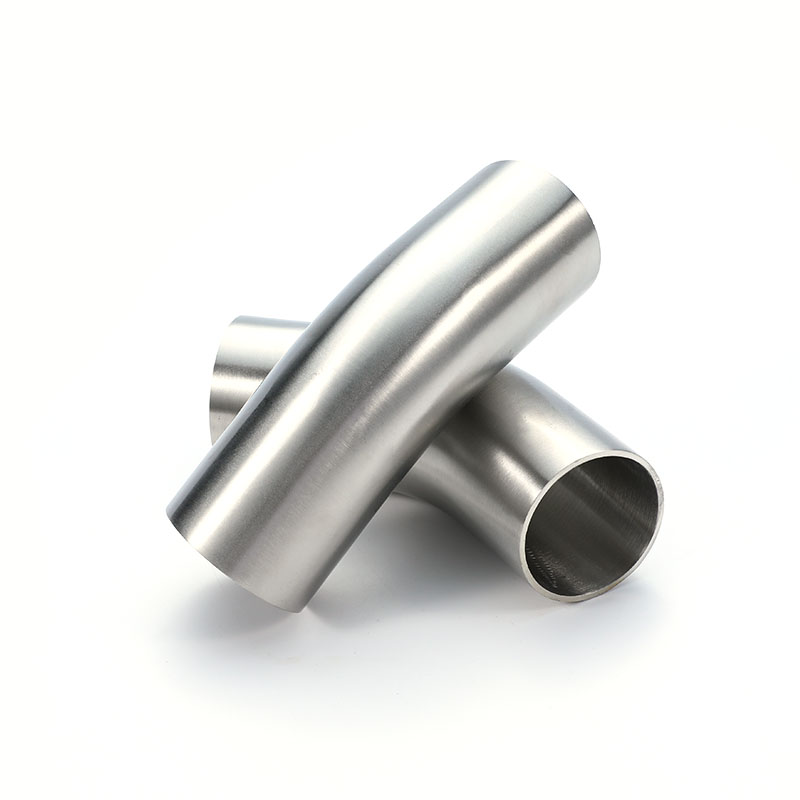

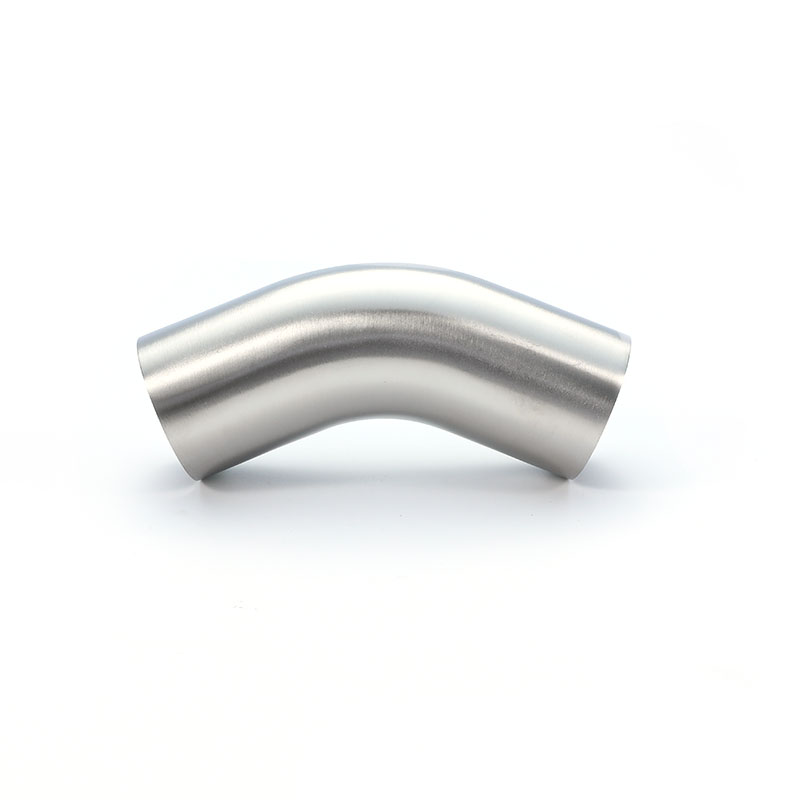

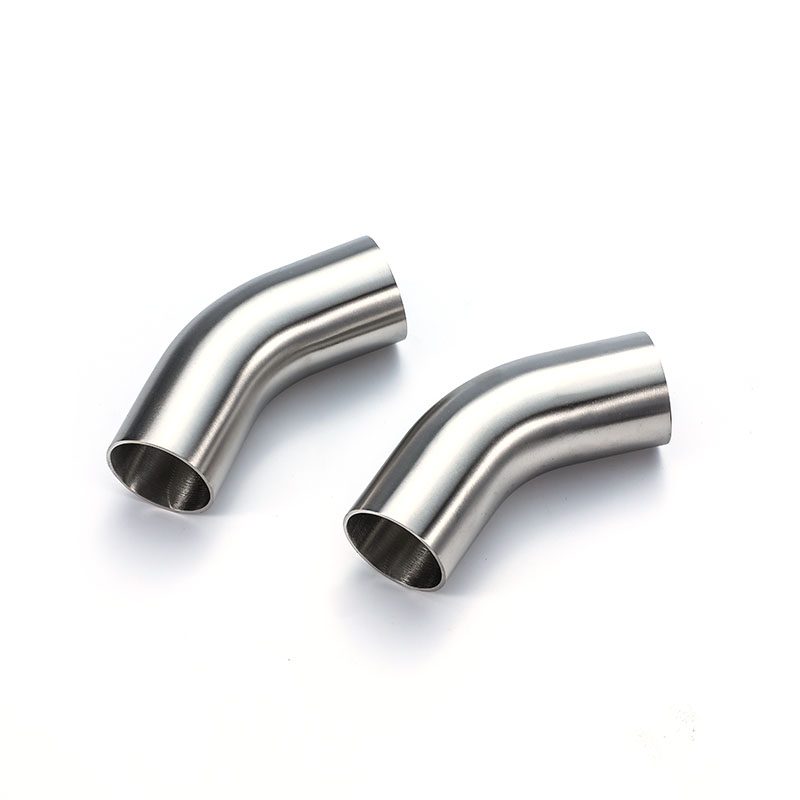

This long 45° welding elbow is designed specifically for high-purity fluid transfer. The extended section reduces turbulence and the risk of particle shedding when changing flow direction. Manufactured to strict BPE SF-grade internal surface requirements, it ensures consistent polishing in the weld area and is suitable for pharmaceutical injectables, pure water systems, and liquid handling processes. Its design facilitates easier handling of the welding heat-affected zone, ensuring compliance with system validation requirements.
| Size | A | R | L1 | T | ||||||
| 1/2" | 12.7 | 19.1 | 57.2 | 1.65 | ||||||
| 3/4" | 19.05 | 28.6 | 57.2 | 1.65 | ||||||
| 1" | 25.4 | 38.1 | 57.2 | 1.65 | ||||||
| 1 1/2" | 38.1 | 57.2 | 63.5 | 1.65 | ||||||
| 2" | 50.8 | 76.2 | 76.2 | 1.65 | ||||||
| 2 1/2" | 63.5 | 95.3 | 85.7 | 1.65 | ||||||
| 3" | 76.2 | 114.3 | 92.1 | 1.65 | ||||||
| 4" | 101.6 | 152.4 | 114.3 | 2.11 | ||||||
| 6" | 152.4 | 288.6 | 158.8 | 2.77 | ||||||
This 45° welding elbow is manufactured to DIN sanitary standards and is used in piping systems to provide a smooth change of direction, reducing fluid flow resistance. Made from high-quality 304/316L ...
See Details
90° welded elbows are primarily used in sanitary piping systems requiring right-angle turns. The product utilizes automatic welding and multi-stage polishing processes to ensure weld strength and sani...
See Details
Standard 90° SMS welded elbows are primarily used for right-angle connections in sanitary piping systems and are common basic components in Nordic dairy and beverage engineering. They are manufactured...
See Details
The long-radius 90° elbow is suitable for high-speed fluid transfer and significantly reduces pressure drop and turbulence caused by sharp turns. It is commonly used in large beverage plants, dairy pr...
See Details
This extended concentric reducer features a longer, progressively tapered design, achieving a smooth and symmetrical flow transition between different pipe diameters, thus reducing shock and pressure ...
See Details
This 90° clamp elbow provides a solution that combines quick installation with high cleanliness, and is commonly used in process piping for dairy products, flavorings, and fermentation liquids. The cl...
See Details
180° elbows are used for system return lines or U-shaped piping configurations, commonly found in circulating cooling, heat exchange systems, and bidirectional conveying processes. They are manufactur...
See Details
Clamp-type tees are suitable for food companies with multiple recipes and batches, allowing for quick switching of branch connections. Assembly can be completed without welding, significantly reducing...
See Details
This 90° welded elbow features a highly compatible, internationally standardized design for right-angle turns, adapting to pipe sizes in various regions. We utilize deep-arc cold bending to prevent wr...
See Details
Welded ISO/IDF tees are suitable for stable flow splitting and combining processes. The three-way junction is designed with rounded corners to minimize impact and stagnation of fluids during distribut...
See Details
This 45° long-radius welding elbow features a longer bending radius, allowing for a smoother fluid transition while changing direction, thus reducing turbulence and pressure loss. We use thickened pip...
See Details
This 90° welded elbow features precise bending and a mirror-polished inner surface, making it ideal for pharmaceutical piping systems requiring complete cleanability and verifiability. We maintain str...
See Details
