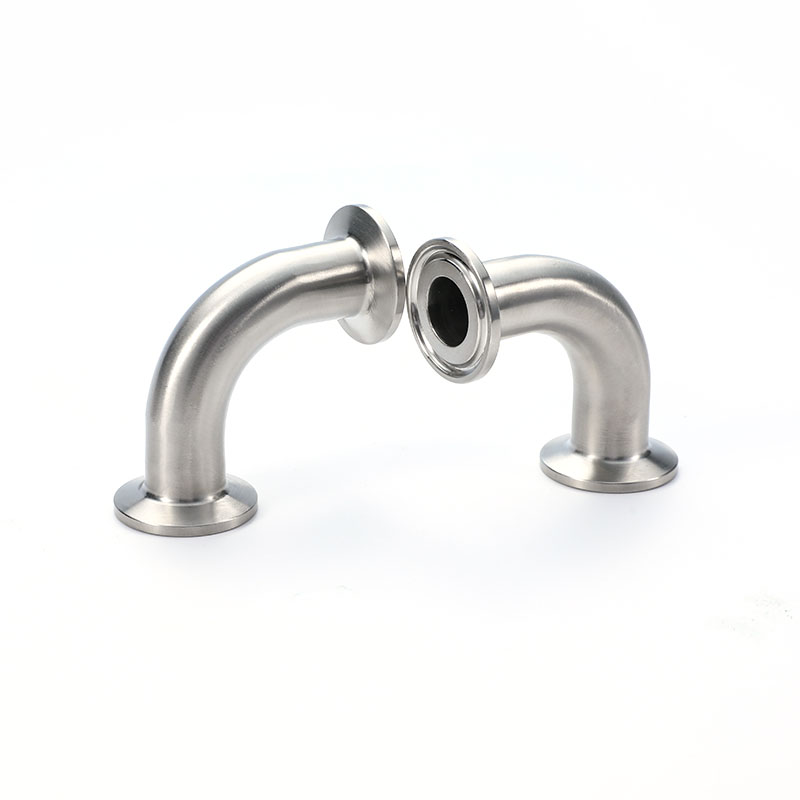

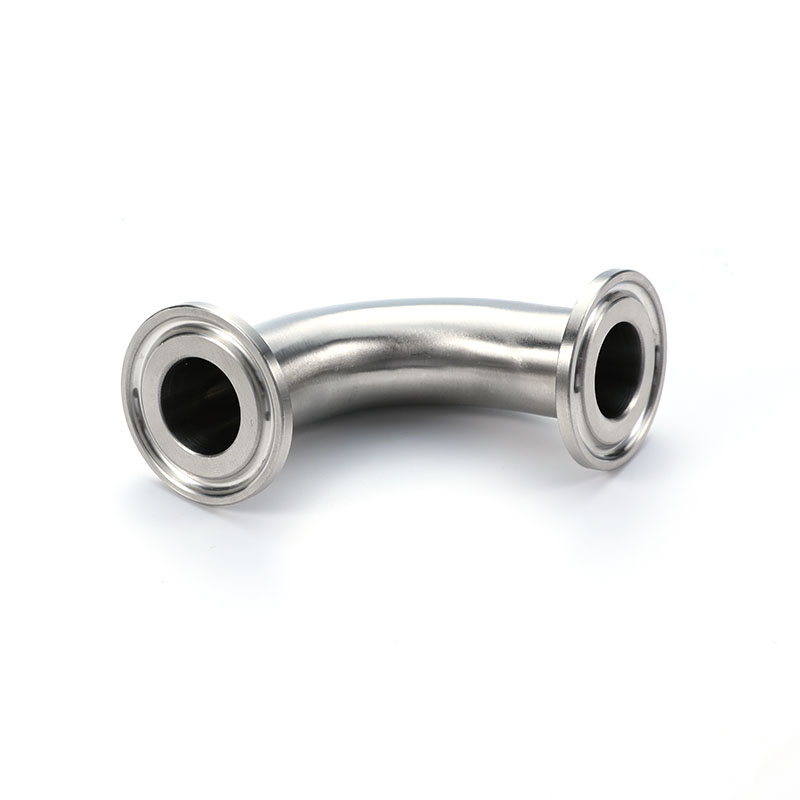

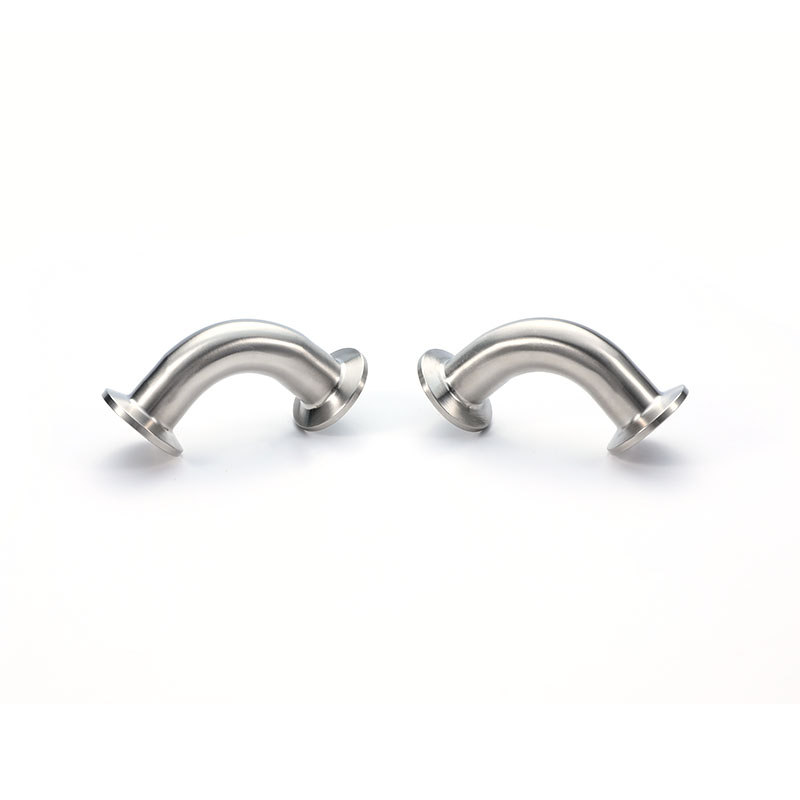

This 90° clamp elbow provides a solution that combines quick installation with high cleanliness, and is commonly used in process piping for dairy products, flavorings, and fermentation liquids. The clamp design facilitates equipment maintenance and seal replacement, and allows for installation without welding. The inner surface is mirror-polished to prevent product residue, making it a key component for improving maintenance efficiency in American food processing lines.
| Size | L1 | K1 | T | ||||||||
| 1/2" | 50.8 | 50.5 | 1.65 | ||||||||
| 1 1/2" | 69.9 | 50.5 | 1.65 | ||||||||
| 2" | 88.9 | 64 | 1.65 | ||||||||
| 2 1/2" | 108 | 77 | 1.65 | ||||||||
| 3" | 127 | 91 | 1.65 | ||||||||
| 4" | 168.2 | 119 | 2.1 | ||||||||
