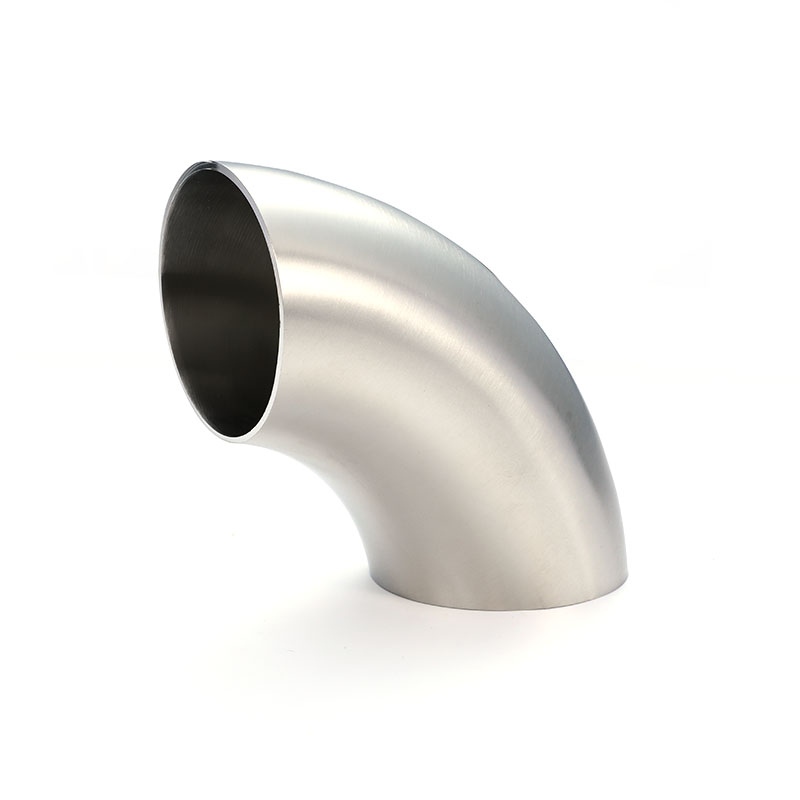

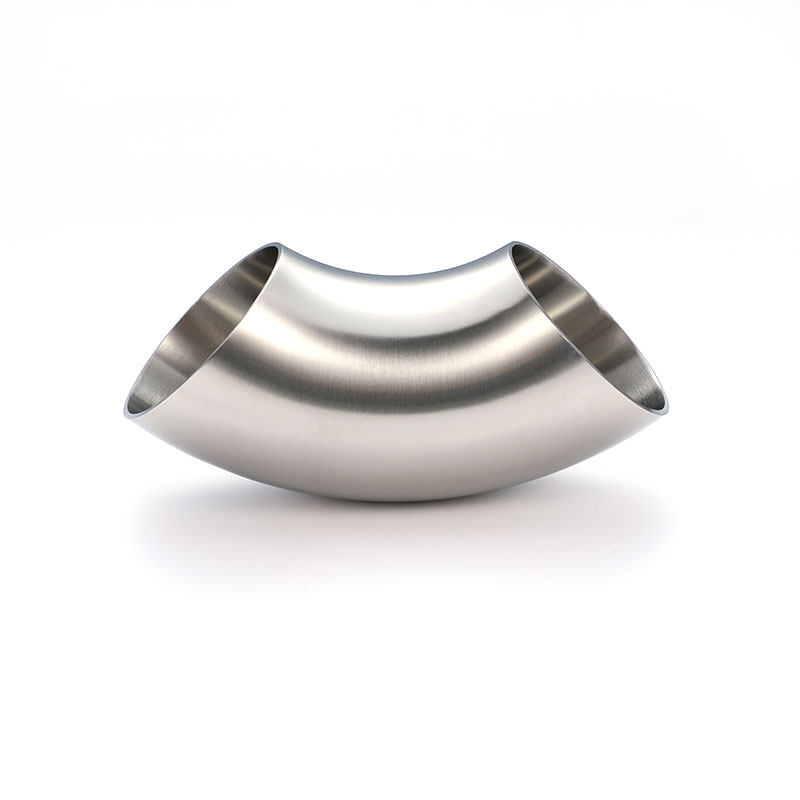

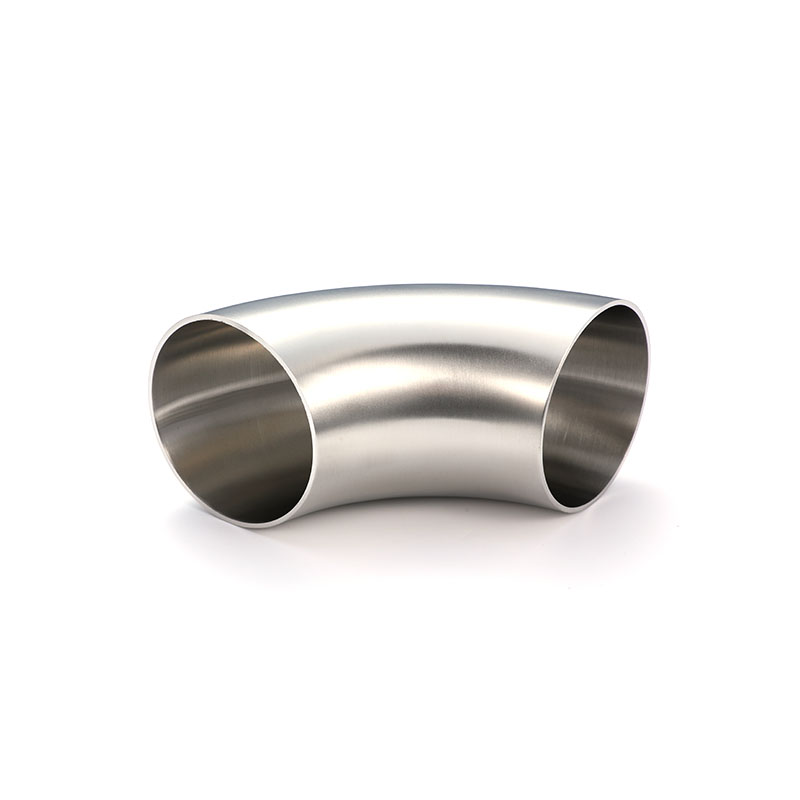

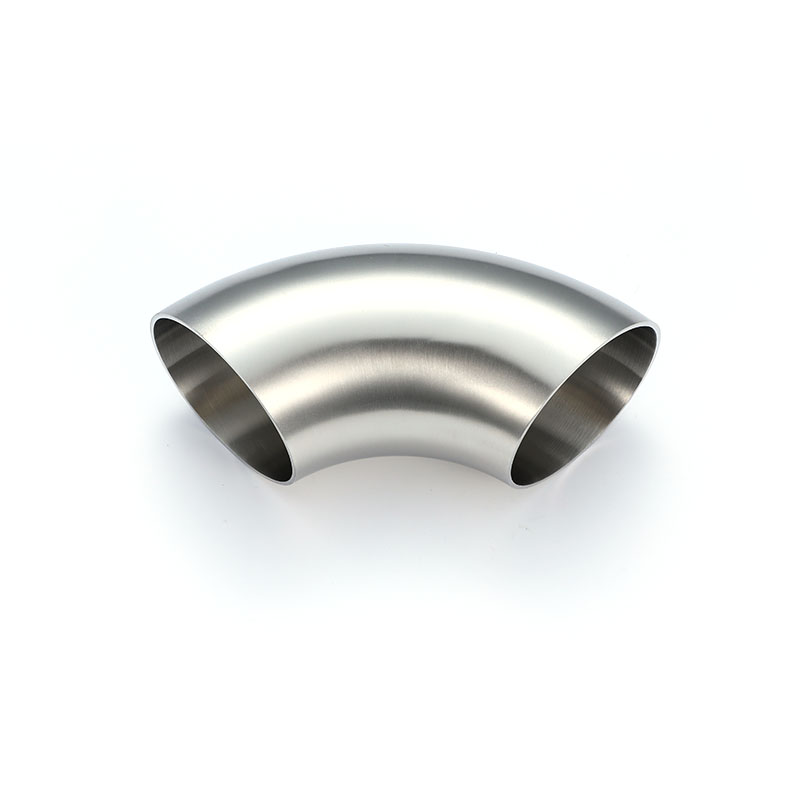

This 90° welded elbow features a highly compatible, internationally standardized design for right-angle turns, adapting to pipe sizes in various regions. We utilize deep-arc cold bending to prevent wrinkling and wall thickness concentration at the bend, ensuring stable flow and excellent flushing performance. The inner surface is polished to a mirror finish, making it suitable for fluid transport requiring strict hygiene standards, including liquid milk, fruit juices, and functional beverages. Its robust and durable structure makes it a standard elbow model commonly used by multinational equipment manufacturers.
| Size | A | R | L1 | T | ||
| 1" | 25.4 | 33.5 | 33.5 | 1.2/1.5 | ||
| 1 1/4" | 32 | 38 | 38 | 1.2/1.5 | ||
| 1 1/2" | 38.1 | 48.5 | 48.5 | 1.2/1.5 | ||
| 2" | 50.8 | 60.5 | 60.5 | 1.2/1.5 | ||
| 2 1/2" | 63.5 | 83.5 | 83.5 | 2 | ||
| 3" | 76.2 | 88.5 | 88.5 | 2 | ||
| 3 1/2" | 89 | 103.5 | 103.5 | 2 | ||
| 4" | 101.6 | 127 | 127 | 2 | ||
| 4 1/2" | 114.3 | 152.4 | 152.4 | 2 | ||
| 5" | 127 | 190.5 | 190.5 | 2.77 | ||
| 6" | 152.4 | 228.6 | 228.6 | 2.77 | ||
90° welded elbows are primarily used in sanitary piping systems requiring right-angle turns. The product utilizes automatic welding and multi-stage polishing processes to ensure weld strength and sani...
