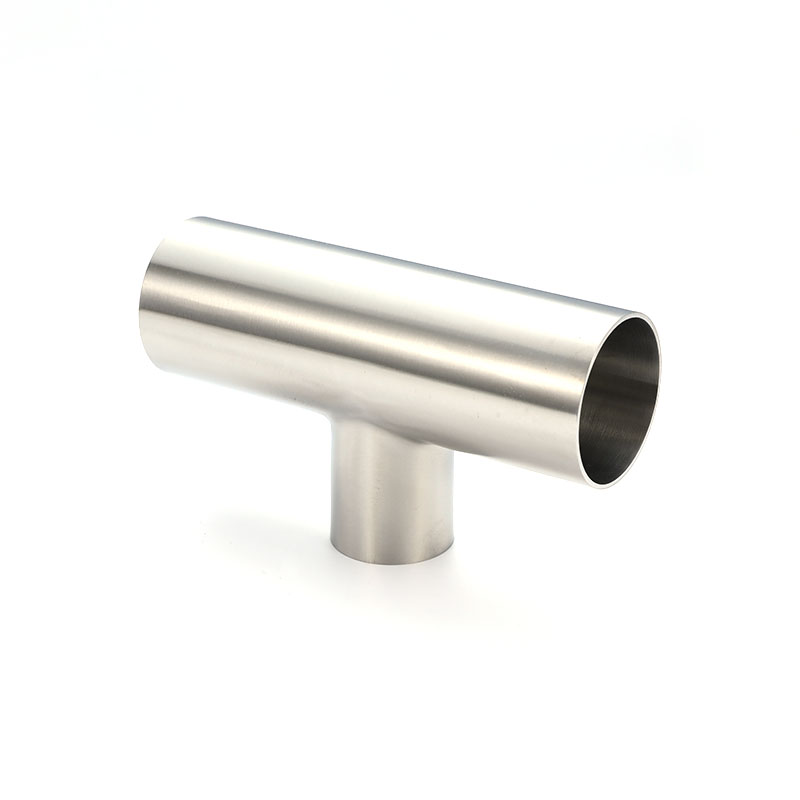

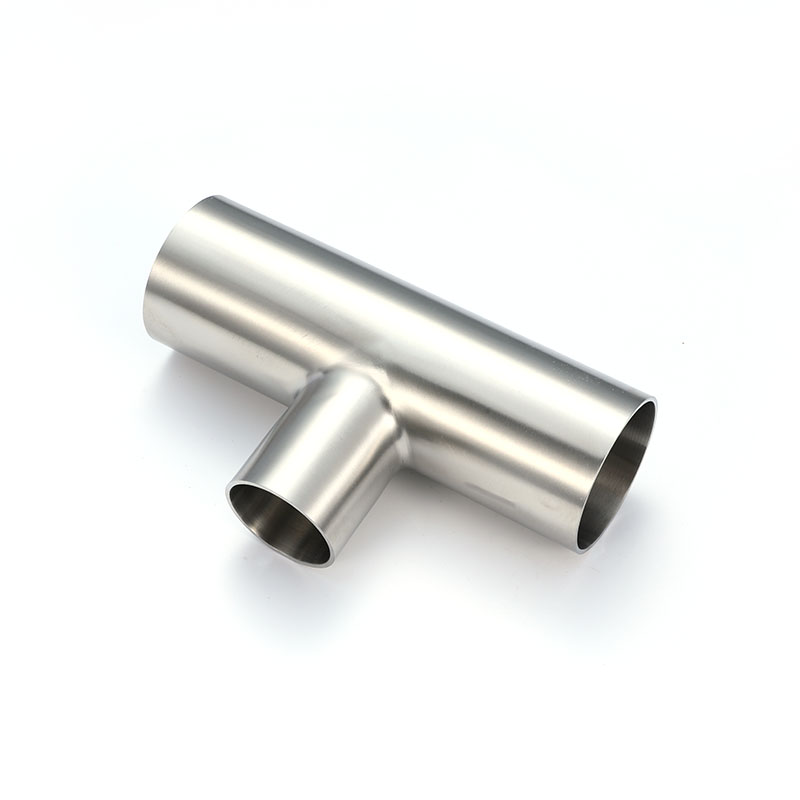

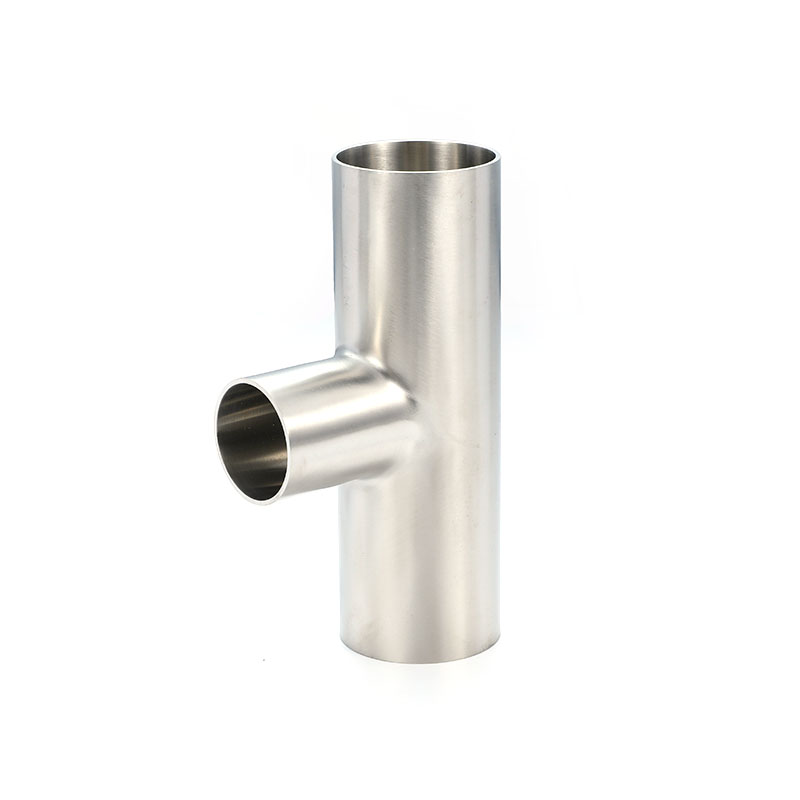

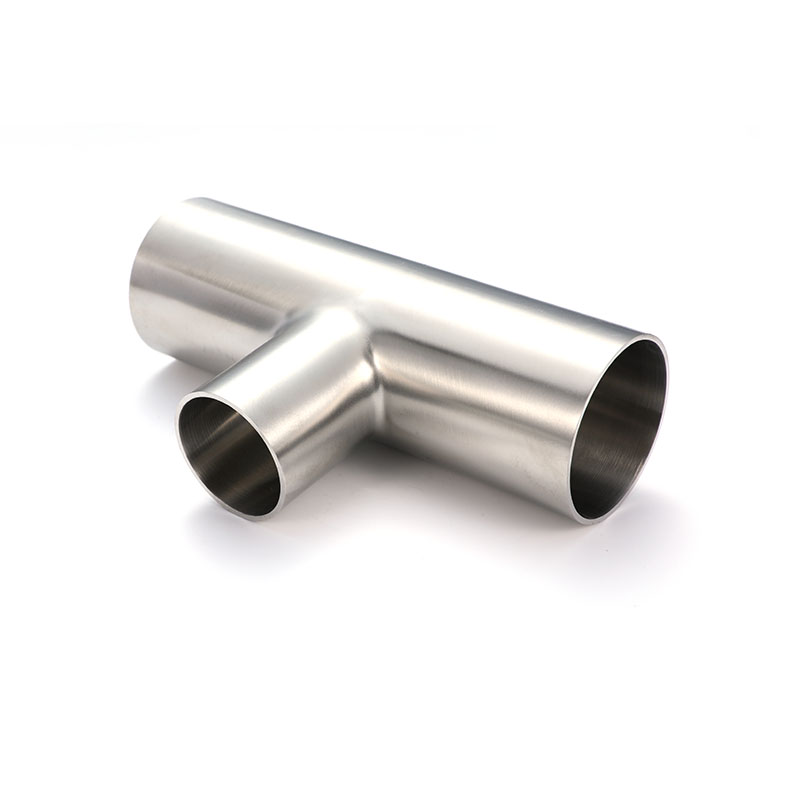

Welded ISO/IDF tees are suitable for stable flow splitting and combining processes. The three-way junction is designed with rounded corners to minimize impact and stagnation of fluids during distribution, making them particularly suitable for continuous production lines. The welded connection ensures high strength and sealing performance, capable of withstanding prolonged exposure to cleaning solutions and pressure fluctuations. These tees are commonly used in global food processing equipment, such as dairy mixing stations, raw material blending systems, and fruit pulp filling lines.
| Size | A | L1 | T | |||||
| 1" | 25.4 | 33.5 | 1.2/1.5 | |||||
| 1 1/4" | 31.8 | 38.1 | 1.2/1.5 | |||||
| 1 1/2" | 38.1 | 48.5 | 1.2/1.5 | |||||
| 2" | 50.8 | 60.5 | 1.2/1.5 | |||||
| 2 1/2" | 63.5 | 83.5 | 2 | |||||
| 3" | 76.2 | 88.5 | 2 | |||||
| 3 1/2" | 88.9 | 103.5 | 2 | |||||
| 4" | 1016 | 127 | 2 | |||||
| Size | A | L1 | T | |||
| 1" | 25.4 | 33.5 | 1.2/1.5 | |||
| 1 1/4" | 32 | 38 | 1.2/1.5 | |||
| 1 1/2" | 38 | 48.5 | 1.2/1.5 | |||
| 2" | 51 | 60.5 | 1.2/1.5 | |||
| 2 1/2" | 63.5 | 83.5 | 2 | |||
| 3" | 76 | 88.5 | 2 | |||
| 3 1/2" | 89 | 103.5 | 2 | |||
| 4" | 101.6 | 127 | 2 | |||
