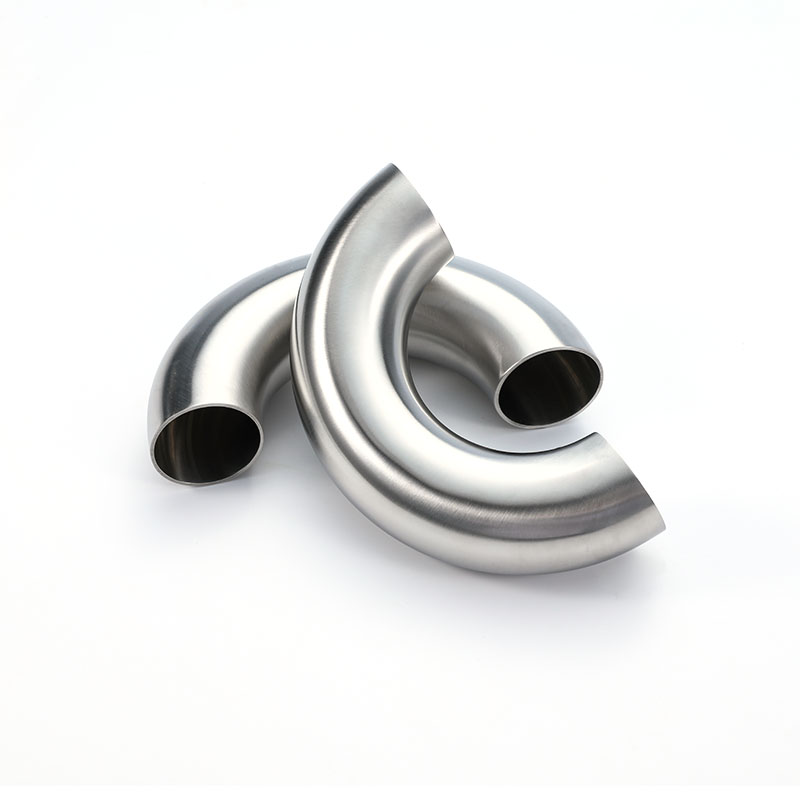

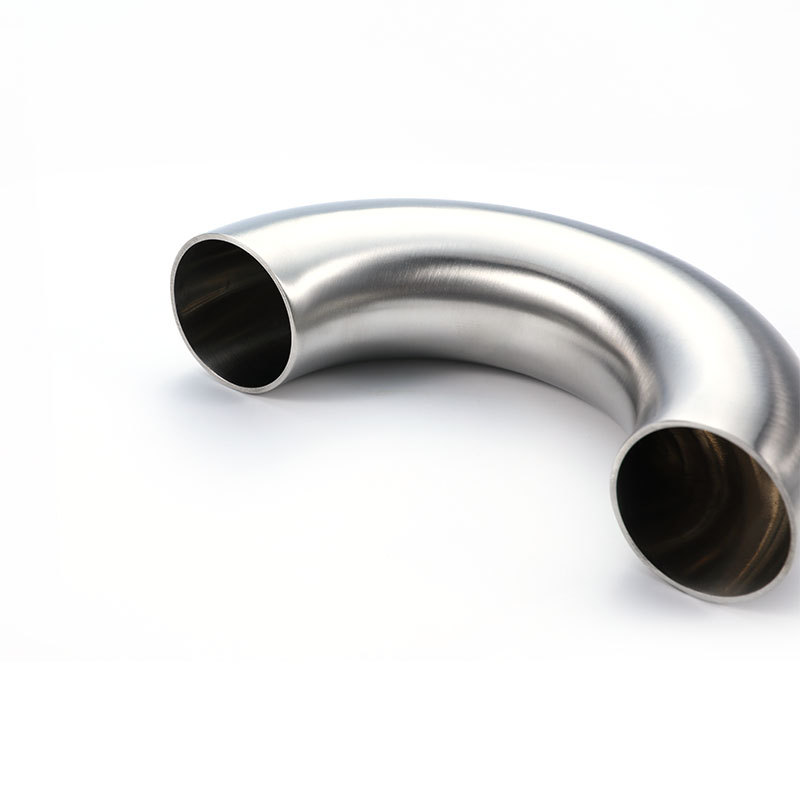

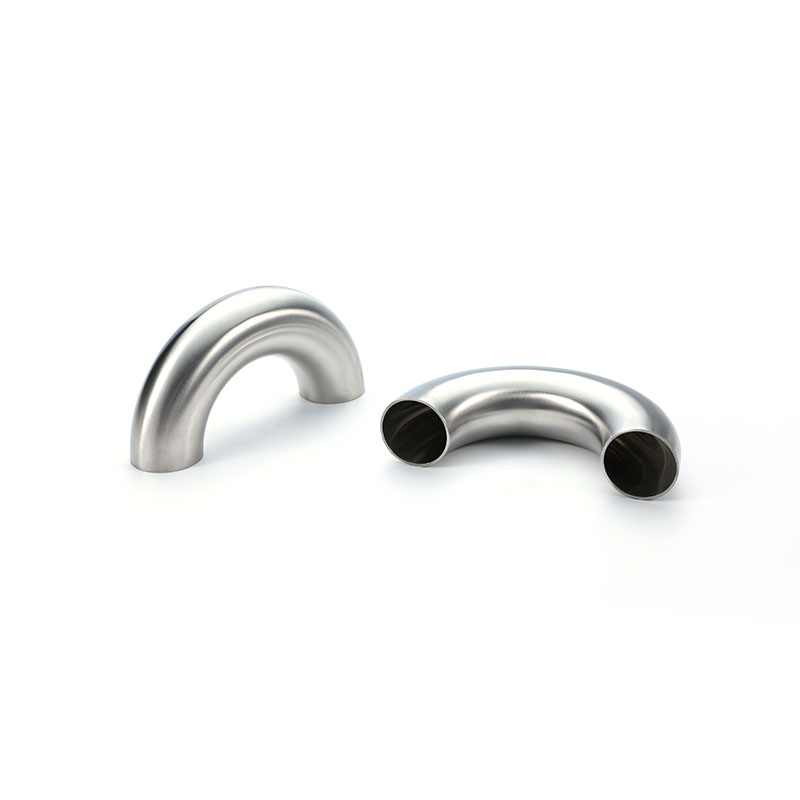

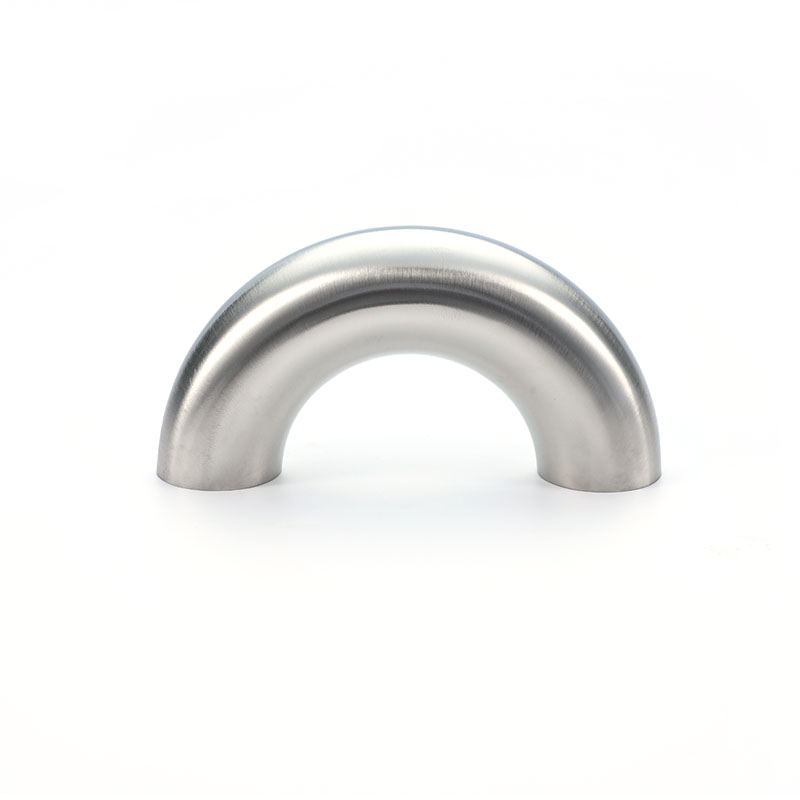

180° elbows are used for system return lines or U-shaped piping configurations, commonly found in circulating cooling, heat exchange systems, and bidirectional conveying processes. They are manufactured with a precise bending radius to ensure stable fluid flow during the reversal of direction. The inner wall is treated to meet 3A sanitary standards, making them suitable for the transport of highly sensitive materials such as milk and nutritional fluids. They are ideal U-shaped bend components for production lines with significant process layout constraints.
| Size | A | L1 | L2 | |||
| 1/2" | 25.4 | 76.2 | 38.1 | |||
| 1 1/2" | 38.1 | 114.3 | 57.2 | |||
| 2" | 50.8 | 152.4 | 76.2 | |||
| 2 1/2" | 63.5 | 190.5 | 95.3 | |||
| 3" | 76.2 | 228.6 | 114.3 | |||
| 4" | 101.6 | 304.8 | 152.4 | |||
