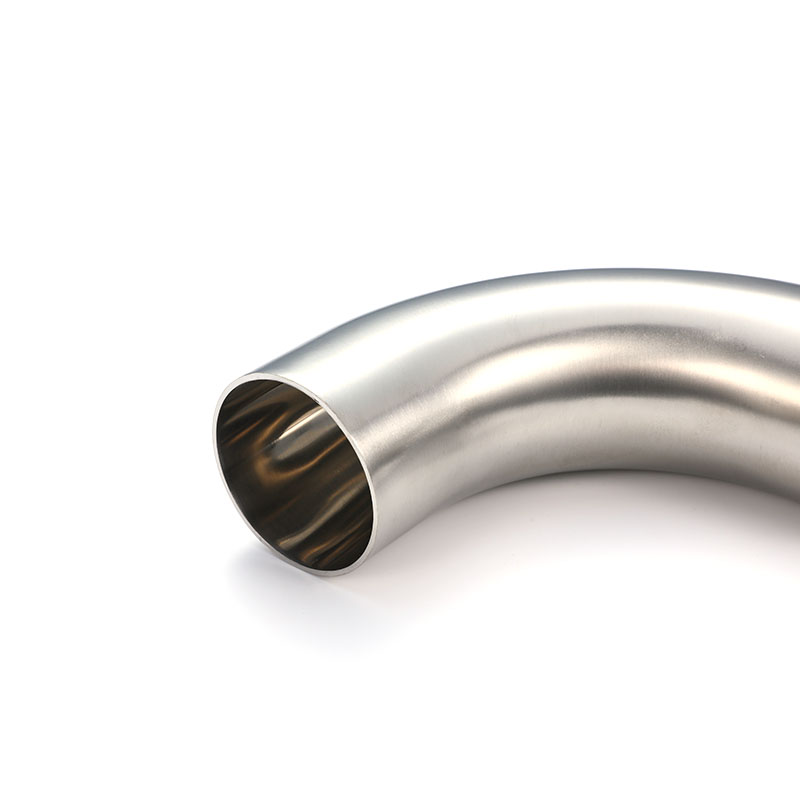

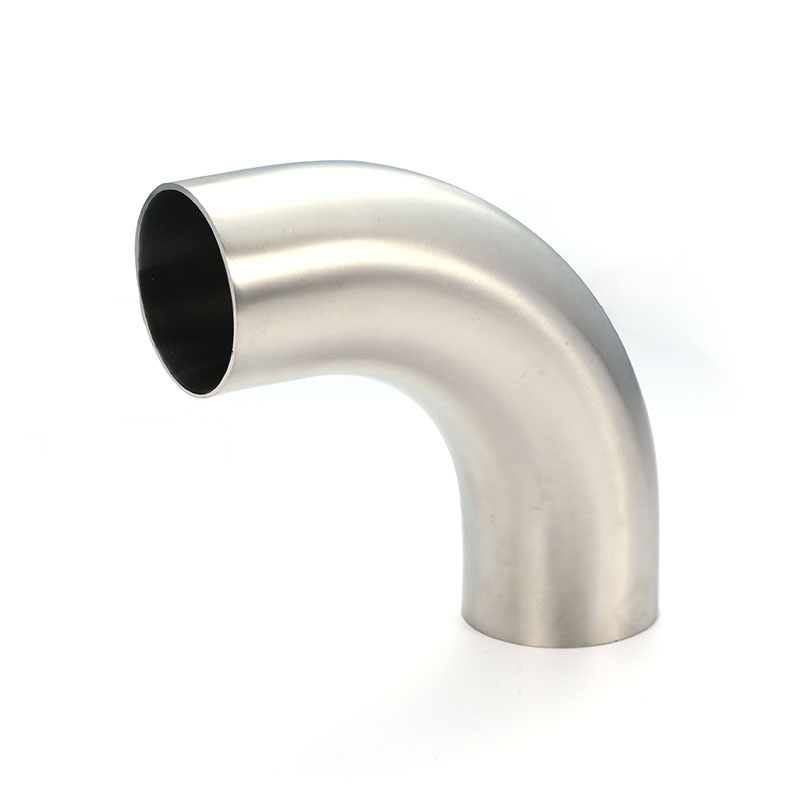

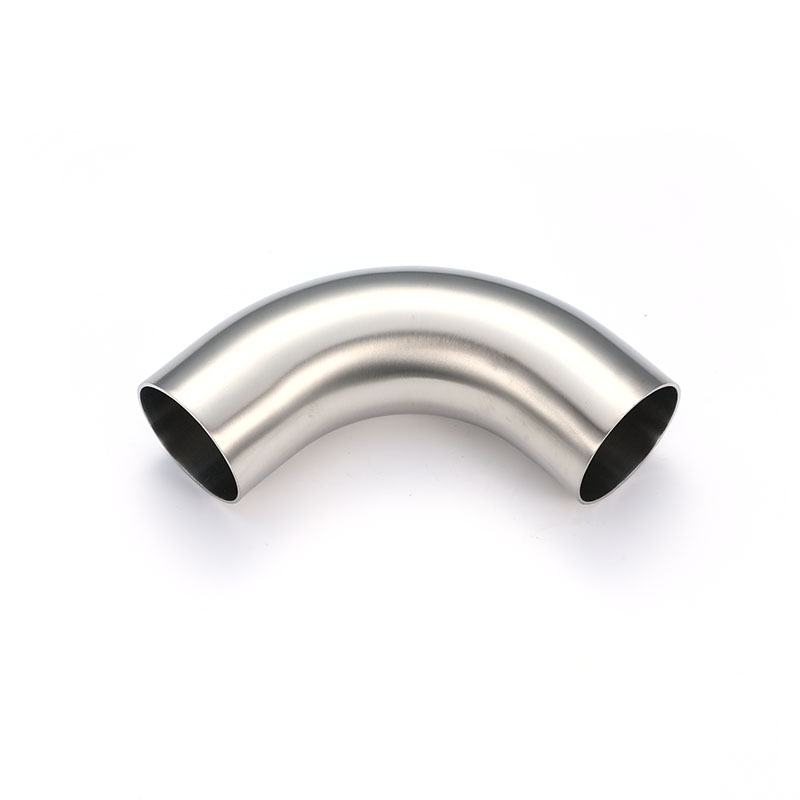

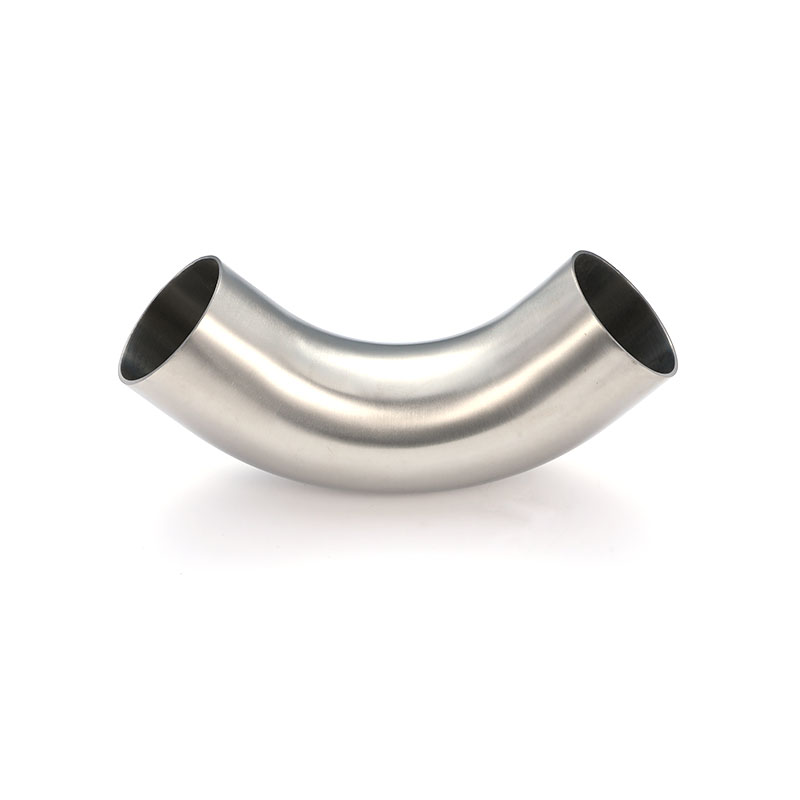

The long-radius 90° elbow is suitable for high-speed fluid transfer and significantly reduces pressure drop and turbulence caused by sharp turns. It is commonly used in large beverage plants, dairy product raw material transportation, and mixing processes. We use high-pressure-rated piping materials and sanitary welding processes to ensure that this elbow remains stable during long-term, high-frequency operation. The extended arc section creates a smoother flow path, reducing impact and wear on particulate media, resulting in an enhanced performance elbow design.
| Size | A | R | L1 | T | |
| 25 | 25.4 | 38.1 | 55 | 1.25/1.5 | |
| 38 | 38.1 | 57.2 | 70 | 1.25/1.5 | |
| 51 | 50.8 | 76.2 | 82 | 1.25/1.5 | |
| 63 | 63.5 | 95.2 | 105 | 1.5/2 | |
| 76 | 76.2 | 114.3 | 110 | 1.6/2 | |
| 102 | 101.6 | 152.4 | 150 | 2 | |
| 104 | 104 | 152.4 4 | 150 | 2 | |
| 127 | 129 | 190.5 | 254 | 2 | |
| 152.4 | 152.4 | 228.6 | 292 | 2 | |
| 203.2 | 203.2 | 305 | 381 | 2 | |
