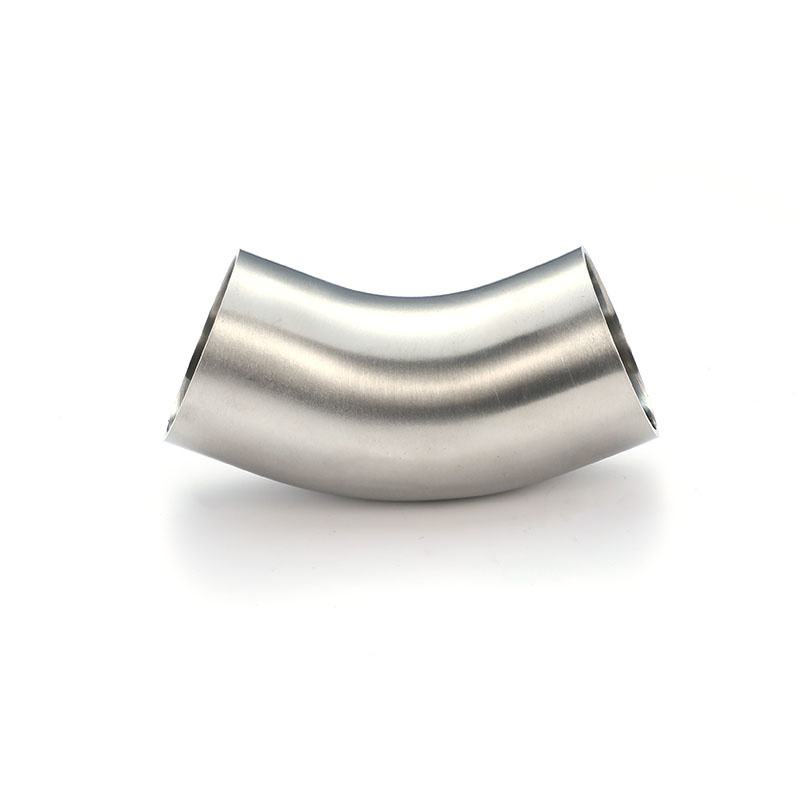

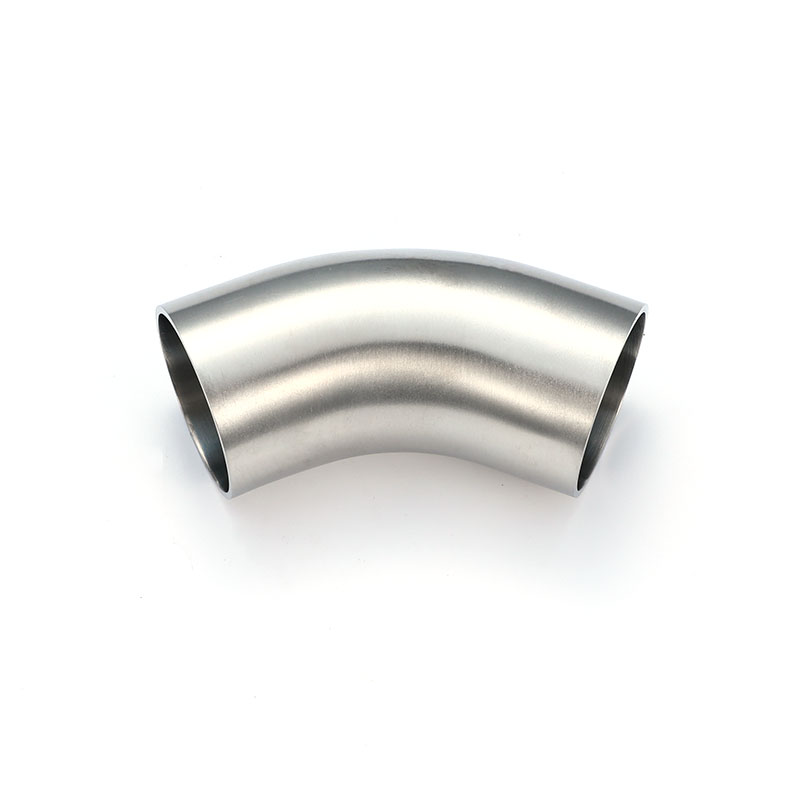

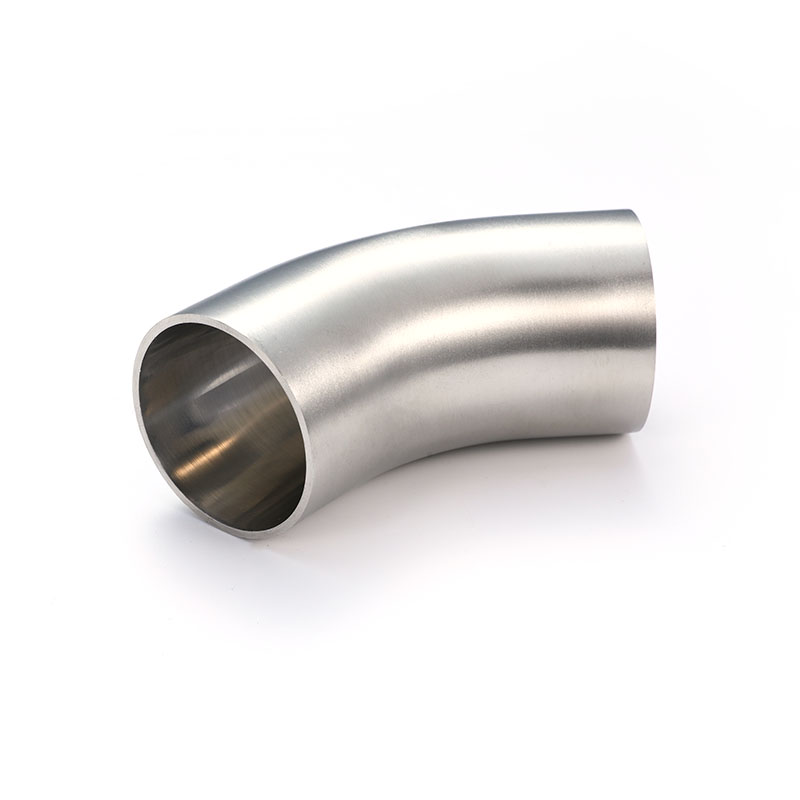

This 45° long-radius welding elbow features a longer bending radius, allowing for a smoother fluid transition while changing direction, thus reducing turbulence and pressure loss. We use thickened pipe blanks to ensure stability even under large diameters and continuous high-pressure conditions. The long-radius design is particularly suitable for process pipelines in dairy, beverage, and chemical liquid systems where maintaining media integrity is crucial. The surface finish meets sanitary requirements, and the welding joints are easy to connect.
| Size | A | R | L1 | T | ||
| 1" | 25.4 | 38.1 | 30.2 | 1.65 | ||
| 1 1/2" | 38.1 | 57.2 | 41.3 | 1.65 | ||
| 2" | 50.8 | 76.2 | 58.7 | 1.65 | ||
| 21/2" | 63.5 | 95.3 | 76.2 | 1.65 | ||
| 3" | 76.2 | 114.3 | 93.7 | 1.65 | ||
| 4" | 101.6 | 152.4 | 122.2 | 2.11 | ||
Compared to standard 90° elbows, this long-radius design features a larger bending radius, reducing fluid impact and pressure drop, making it suitable for high-speed fluid or large-particle material c...
