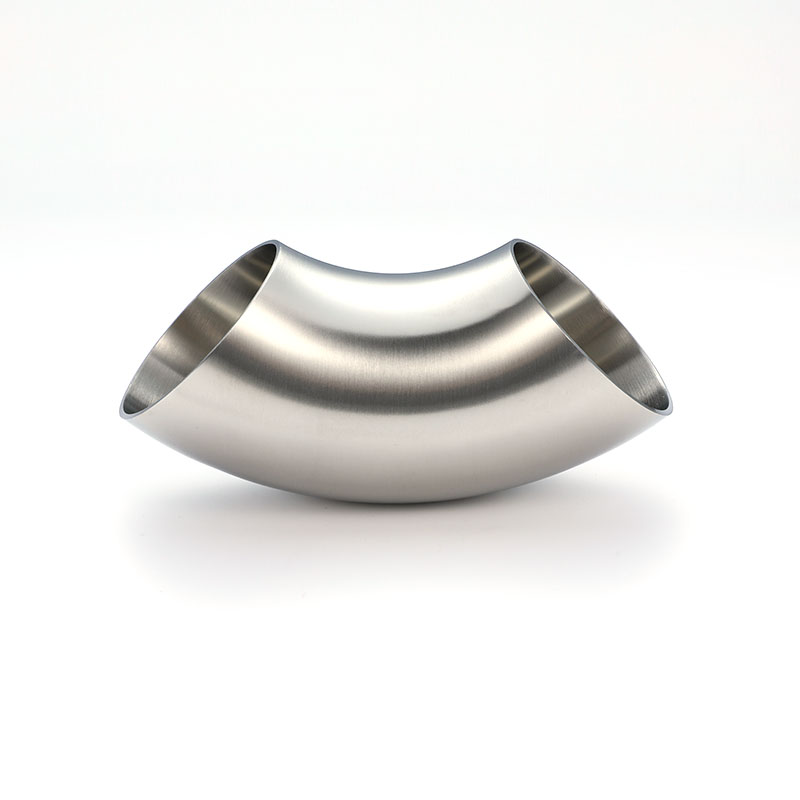

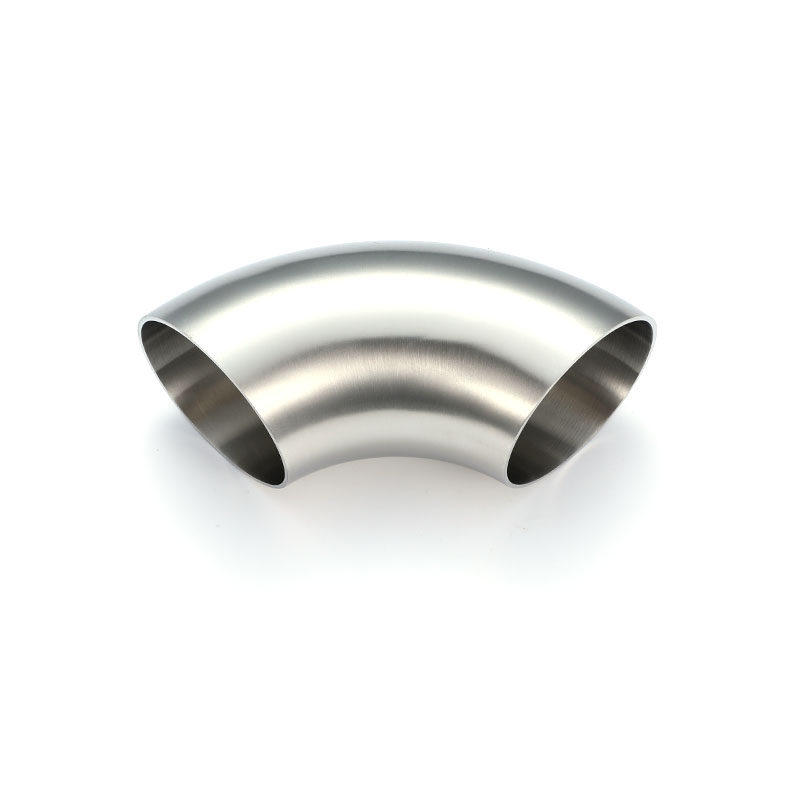

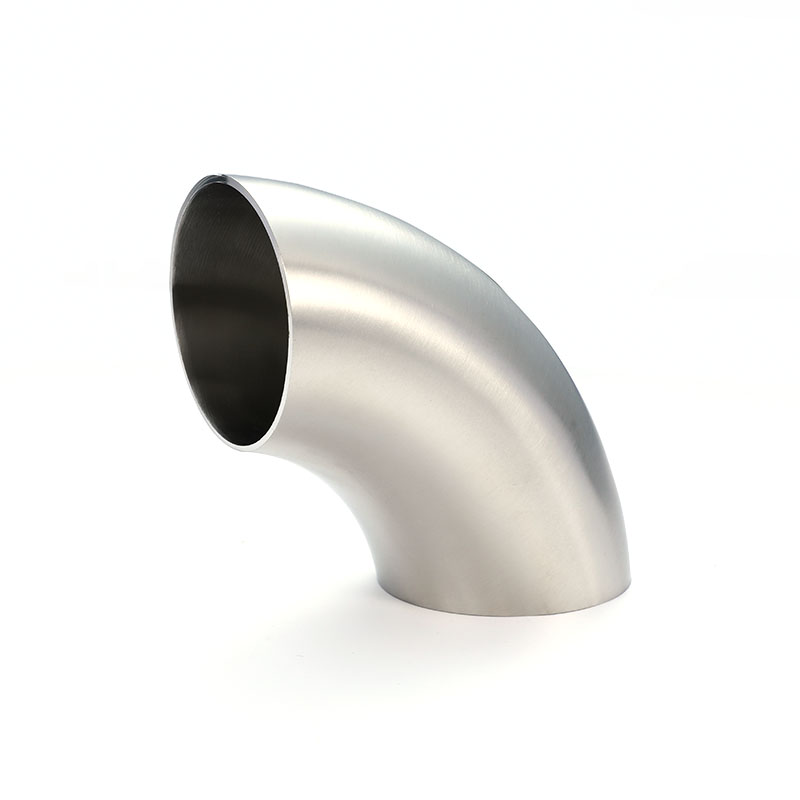

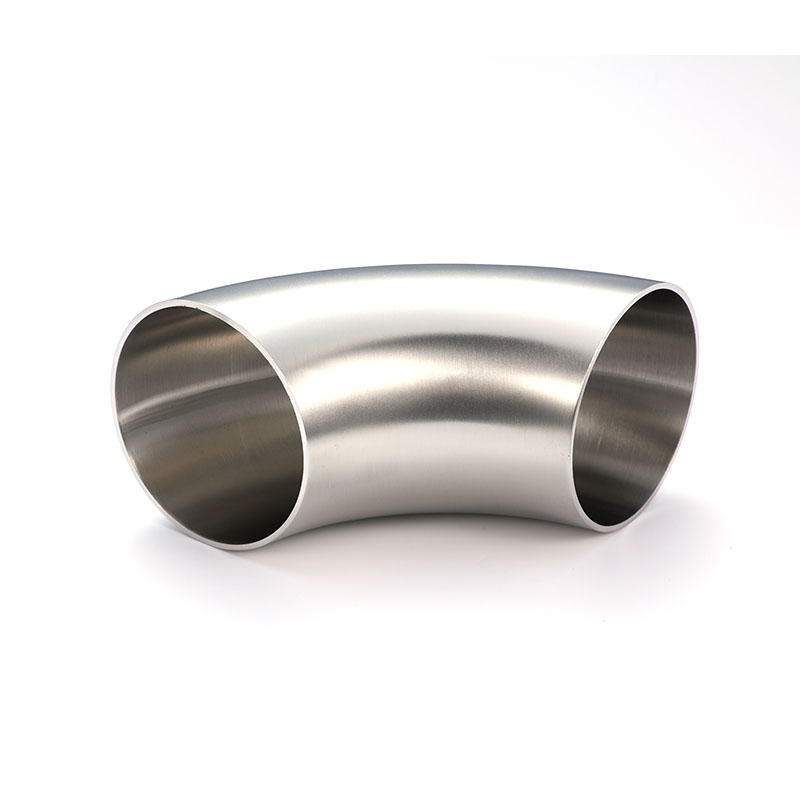

90° welded elbows are primarily used in sanitary piping systems requiring right-angle turns. The product utilizes automatic welding and multi-stage polishing processes to ensure weld strength and sanitary standards, and is suitable for CIP/SIP cleaning. Its compact structure makes it ideal for use around equipment frames, tanks, and in densely piped areas. The standardized DIN port ensures seamless connection with pumps, valves, and other pipe fittings, making it the most commonly used elbow type in conventional process pipelines.

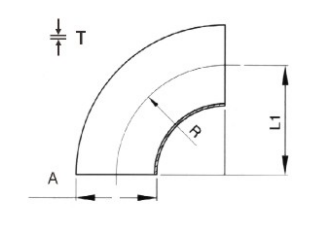

| Size | A | R | L1 | T | |
| DN10 | 12/13 | 26 | 35.8 | 1.5 | |
| DN15 | 18/19 | 35 | 39.5 | 1.5 | |
| DN20 | 22/23 | 40 | 41.6 | 1.5 | |
| DN25 | 28/29 | 50 | 60.7 | 1.5 | |
| DN32 | 34/35 | 55 | 62.8 | 1.5 | |
| DN40 | 40/41 | 60 | 64.9 | 1.5 | |
| DN50 | 52/53 | 70 | 69 | 1.5 | |
| DN65 | 70 | 80 | 73 | 2 | |
| DN80 | 85 | 90 | 92.3 | 2 | |
| DN100 | 104 | 100 | 96.4 | 2 | |
| DN125 | 129 | 187 | 135.2 | 2 | |
| DN150 | 154 | 225 | 156.7 | 2 | |
This 45° welding elbow is manufactured to DIN sanitary standards and is used in piping systems to provide a smooth change of direction, reducing fluid flow resistance. Made from high-quality 304/316L ...
See Details
The 180° elbow is used to create a U-shaped return flow path and is commonly used in heat exchangers, jacketed tanks, or process systems requiring circulating return flow. The product features a preci...
See Details
This 90° clamp elbow provides a solution that combines quick installation with high cleanliness, and is commonly used in process piping for dairy products, flavorings, and fermentation liquids. The cl...
See Details
The clamp-type tee is designed based on the ISO/IDF universal dimension system, allowing for quick connection with quick-release components from different countries. Its structure is particularly suit...
See Details
This 45° short-radius welding elbow features a compact arc design, making it ideal for applications with strict space requirements, such as within equipment or in densely packed piping areas. We utili...
See Details
This long-radius 90° elbow features a smoother curve, making it ideal for high-speed fluid or low-solids liquid transfer, minimizing media impact. We use highly ductile steel in the manufacturing proc...
See Details
Short-type welded tees are used for branching and merging designs in compact areas. We utilize a one-piece, three-branch structure to ensure the interior remains clean and free of dead spaces, even u...
See Details
This standard welded tee is made of corrosion-resistant steel and features a one-piece molded design, suitable for most conventional branching requirements in SA process pipelines. Its branch connecti...
See Details
We designed this long-bodied tee fitting for customers with higher requirements for fluid velocity and flow distribution uniformity. The extended main pipe structure reduces the impact of flow velocit...
See Details
Welded reducers are used in SA piping systems to provide a smooth transition between pipes of different diameters. We offer both concentric and eccentric designs to accommodate different installation ...
See Details
This 90° clamp elbow is designed for systems requiring quick adjustments or frequent disassembly, such as validation areas and filter outlet connections. We utilize a highly polished clamp face to ens...
See Details
This welded tee fitting features a strictly symmetrical structure and high-purity polishing, ensuring uniform fluid distribution between the main and branch pipes. We have implemented precise transiti...
See Details
