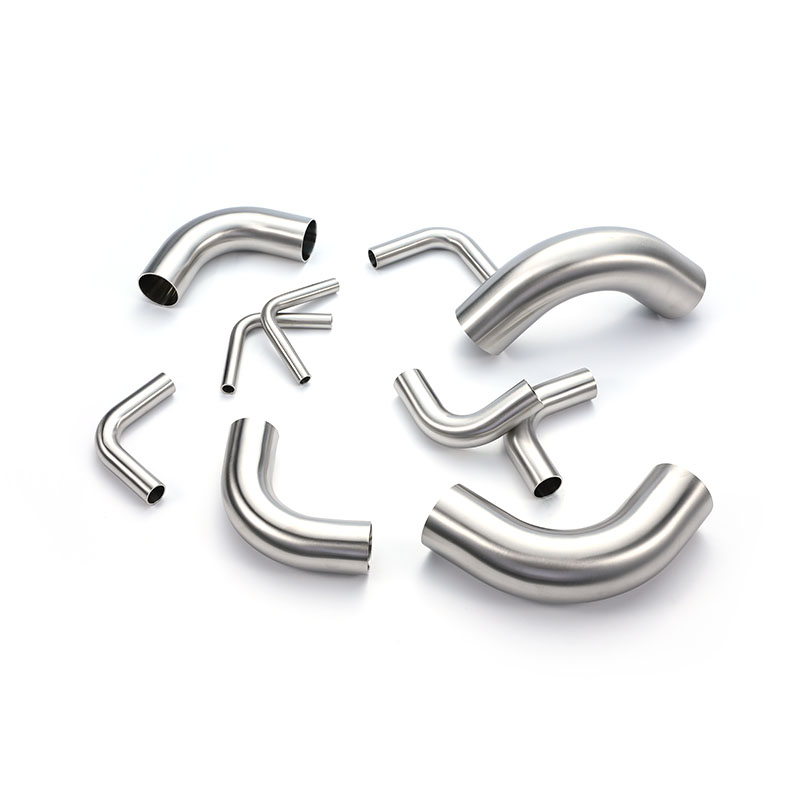

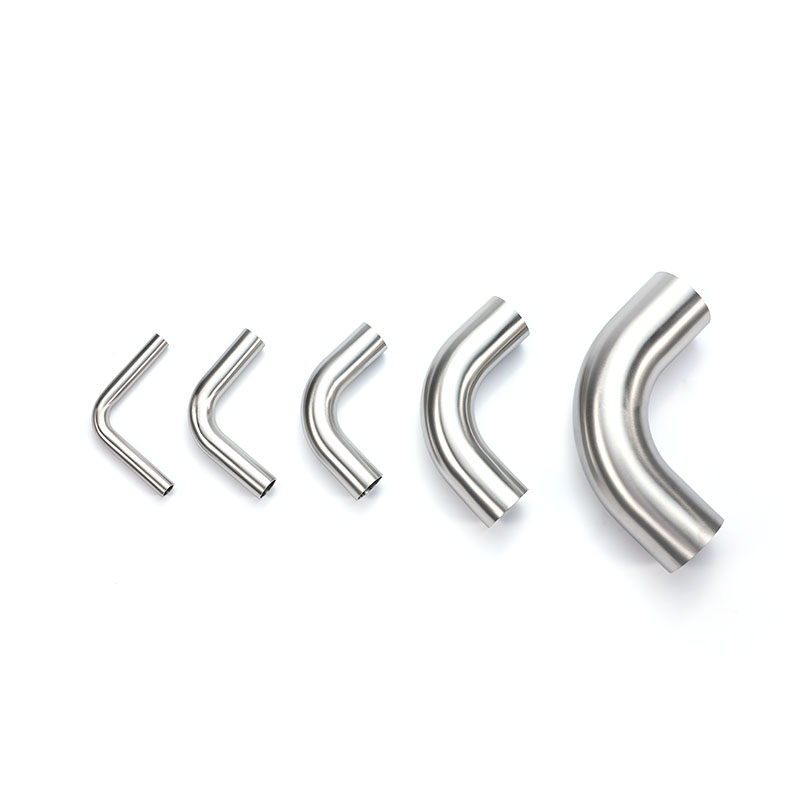

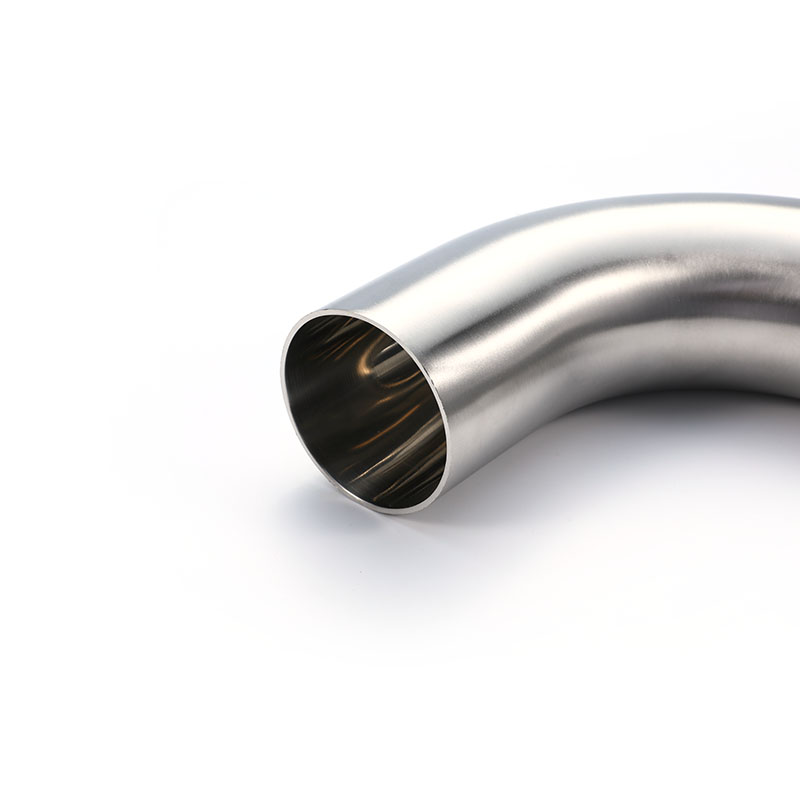

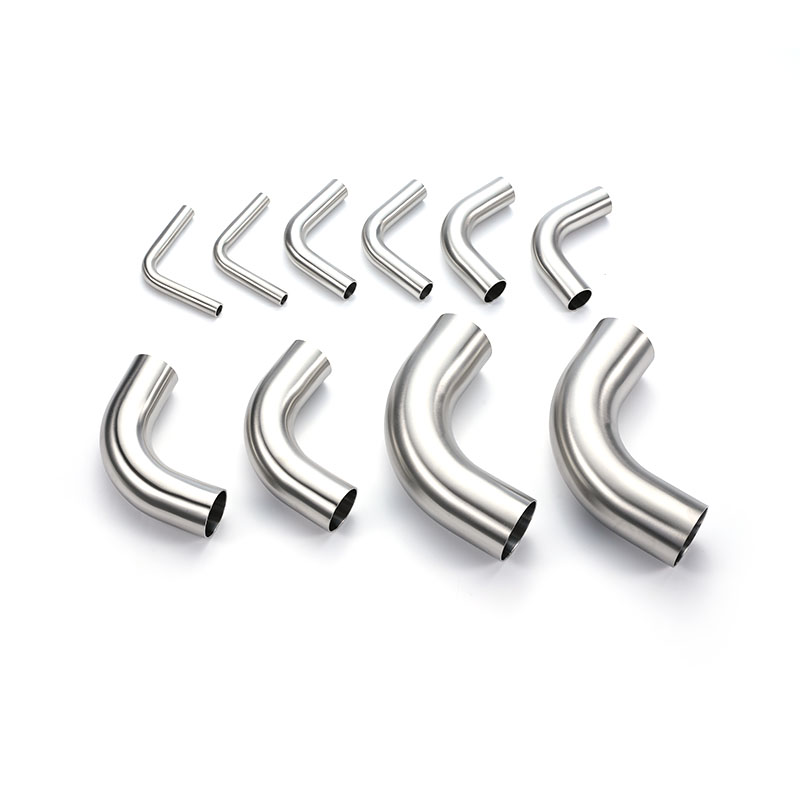

This 90° welded elbow features precise bending and a mirror-polished inner surface, making it ideal for pharmaceutical piping systems requiring complete cleanability and verifiability. We maintain strict concentricity at the welded ends, providing optimal docking conditions for orbital welding machines. The clean and precise 90° turn is suitable for medium to large-scale process modules, effectively reducing dead spaces and ensuring traceability of the fluid path.
| Size | A | R | L1 | T | ||||||
| 1/2" | 12.7 | 19.1 | 76.2 | 1.65 | ||||||
| 3/4" | 19.05 | 28.6 | 76.2 | 1.65 | ||||||
| 1" | 25.4 | 38.1 | 76.2 | 1.65 | ||||||
| 1 1/2" | 38.1 | 57.2 | 95.3 | 1.65 | ||||||
| 2" | 50.8 | 76.2 | 120.7 | 1.65 | ||||||
| 2 1/2" | 63.5 | 95.3 | 139.7 | 1.65 | ||||||
| 3" | 76.2 | 114.3 | 158.8 | 1.65 | ||||||
| 4" | 101.6 | 152.4 | 203.2 | 2.11 | ||||||
| 6" | 152.4 | 228.6 | 292 | 2.77 | ||||||
