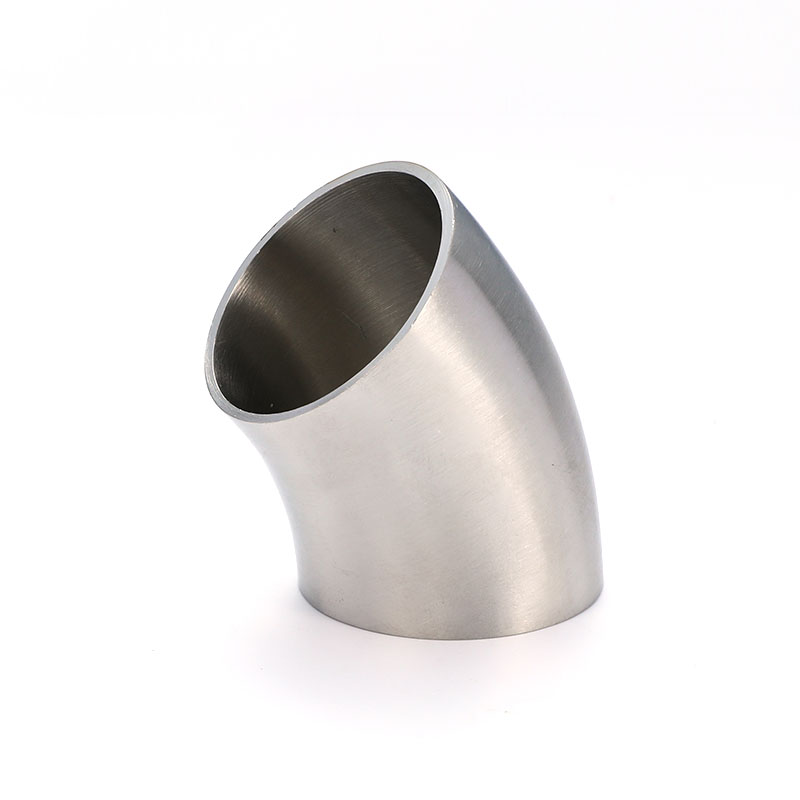

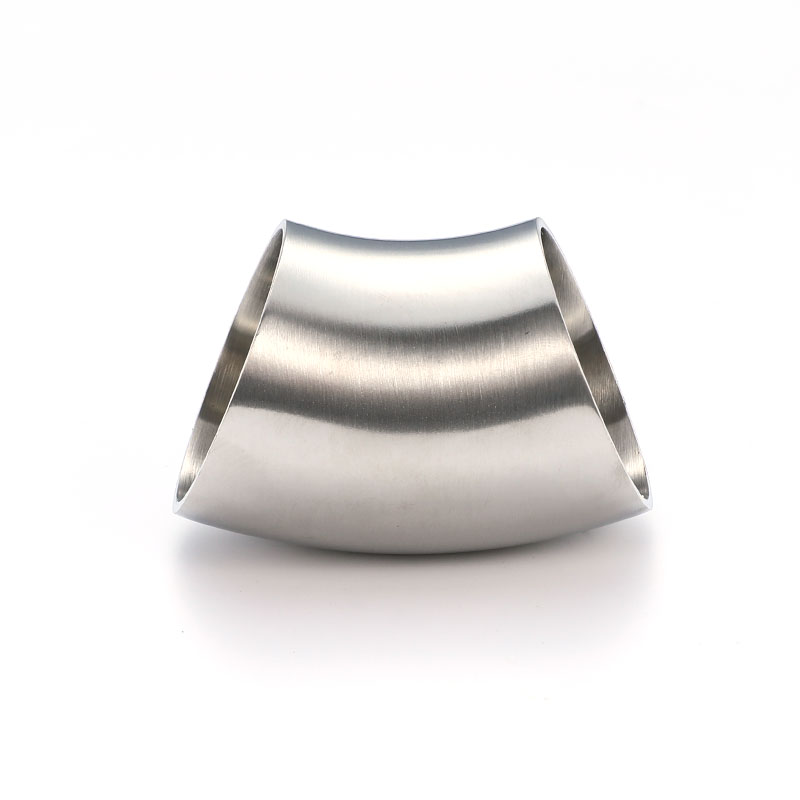

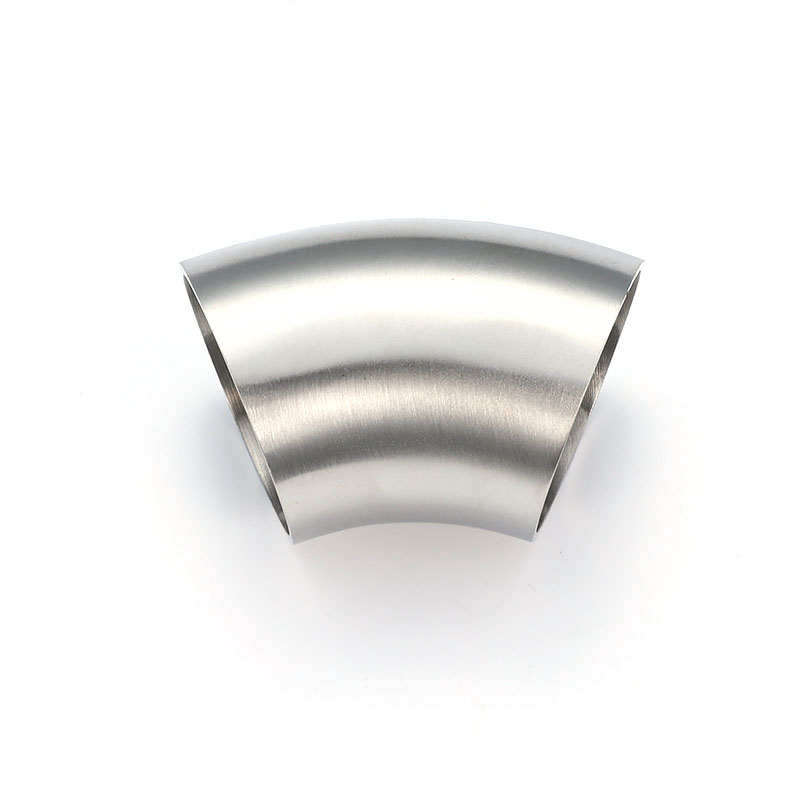

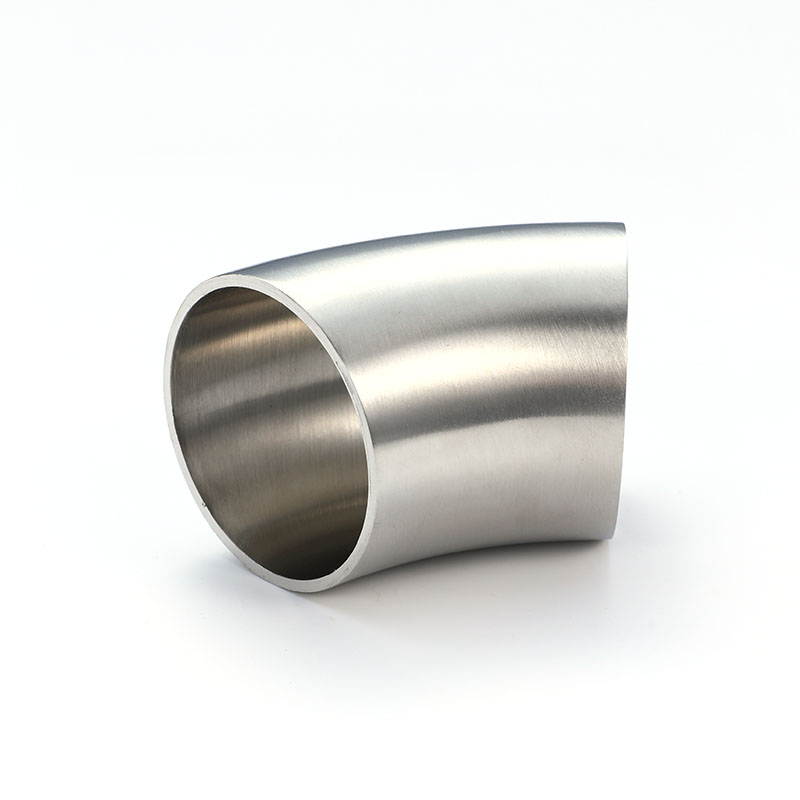

This 45° short-radius welding elbow features a compact arc design, making it ideal for applications with strict space requirements, such as within equipment or in densely packed piping areas. We utilize precision cold working and internal and external polishing processes to ensure smooth, unobstructed flow in high-purity media transfer applications. The BS standard dimensions ensure consistent sizing and quick compatibility with various imperial sanitary piping systems. The product offers excellent corrosion resistance and welding consistency, facilitating quick positioning and installation on-site.
| Size | A | R | L1 | T | ||
| 1" | 25.4 | 38.1 | 15.8 | 1.65 | ||
| 11/2" | 38.1 | 57.2 | 23.7 | 1.65 | ||
| 2" | 50.8 | 76.2 | 31.8 | 1.65 | ||
| 21/2" | 63.5 | 95.3 | 39.6 | 1.65 | ||
| 3" | 76.2 | 114.3 | 47.5 | 1.65 | ||
| 4" | 101.6 | 152.4 | 63.2 | 2.11 | ||
