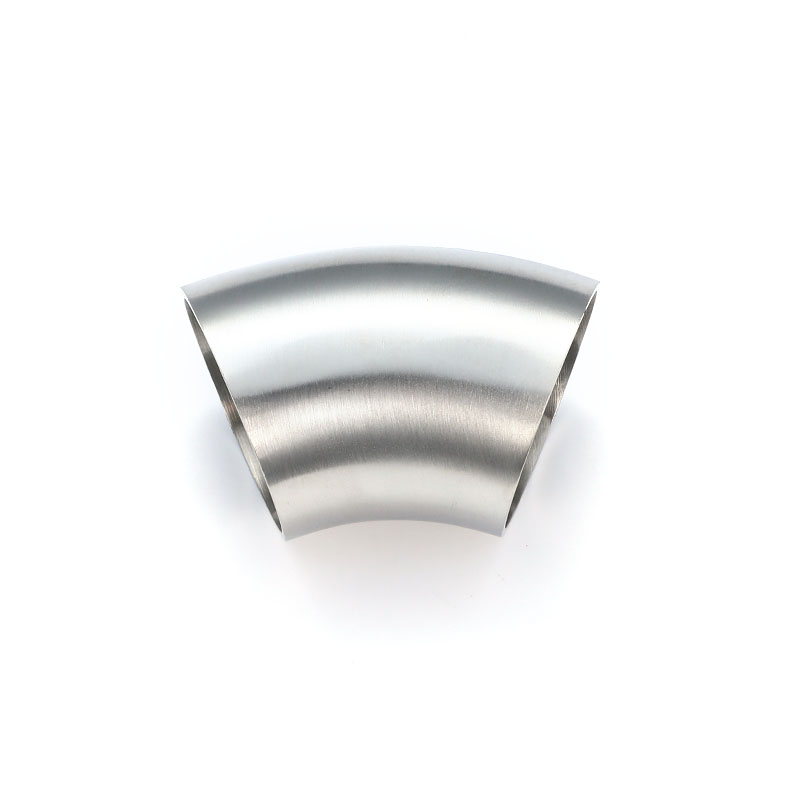

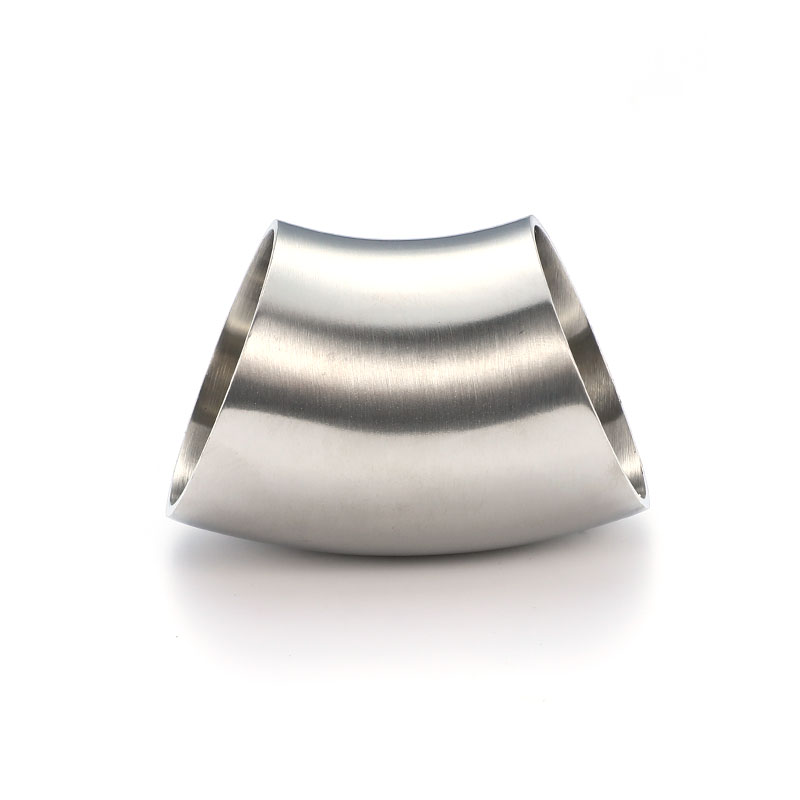

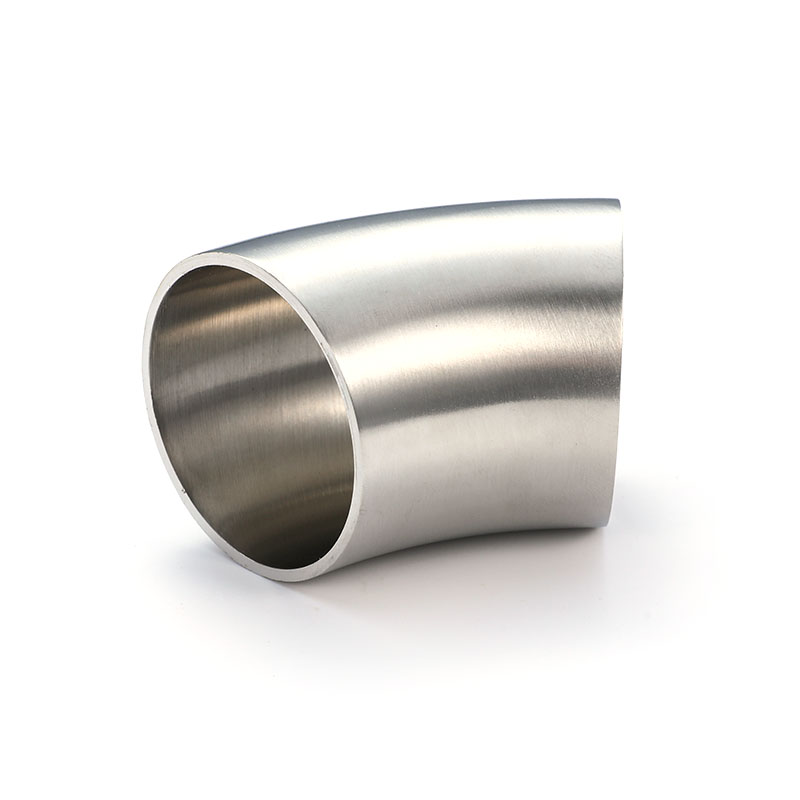

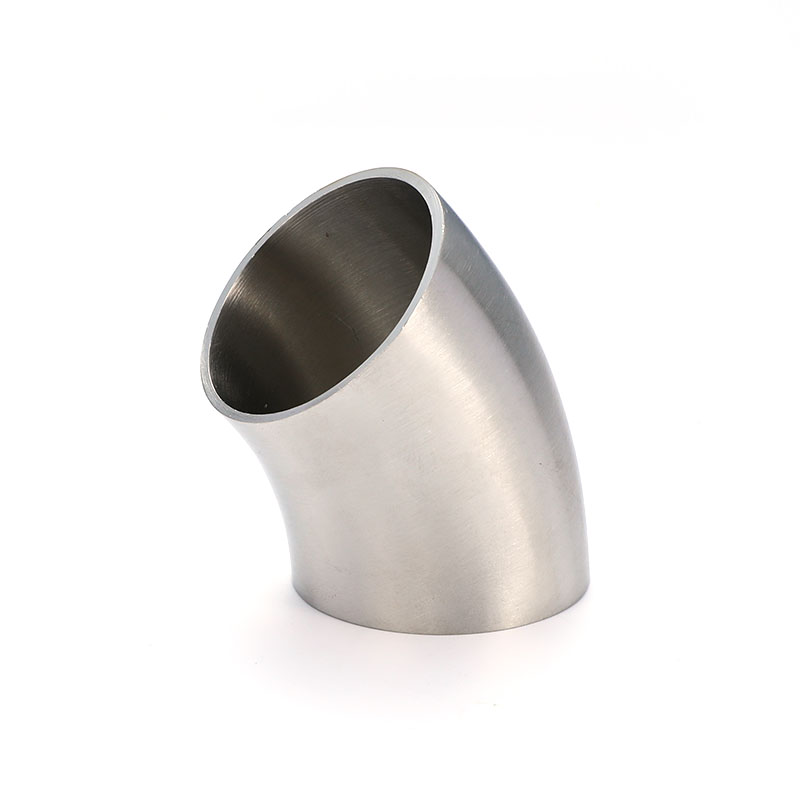

This 45° welding elbow is manufactured according to SMS standards and is suitable for medium-angle directional adjustments in Nordic piping systems. The compact design of the bend reduces the space required for equipment installation. Made from deep-drawn 304/316L stainless steel with a finely polished inner surface, it ensures smooth flow and prevents residue buildup when handling media in the dairy, beverage, and other industries. The precisely sized welding ports make it suitable for conventional conveying, liquid handling, and filling systems, and it is a commonly used turning component in Nordic food processing equipment.
| Size | A | R | L1 | T | |||
| 25 | 25.4 | 38.1 | 15.5 | 1.25/1.5 | |||
| 38 | 38.1 | 57.2 | 23.6 | 1.25/1.5 | |||
| 51 | 50.8 | 76.2 | 31.6 | 1.25/1.5 | |||
| 63 | 63.5 | 95.3 | 39.5 | 1.5/2 | |||
| 76 | 76.2 | 114.3 | 47.2 | 1.6/2 | |||
| 102 | 101.6 | 152.4 | 63 | 2 | |||
| 127 | 127 | 190.5 | 78.9 | 2 | |||
| 152.4 | 152.4 | 228.6 | 94.7 | 2 | |||
| 203.2 | 203.2 | 305 | 126.3 | 2 | |||
