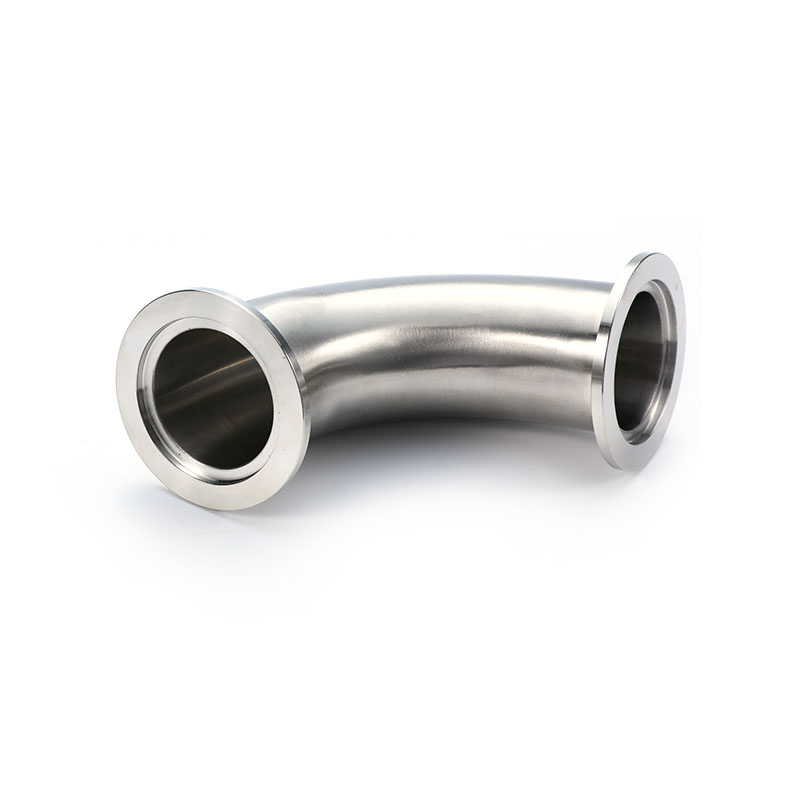

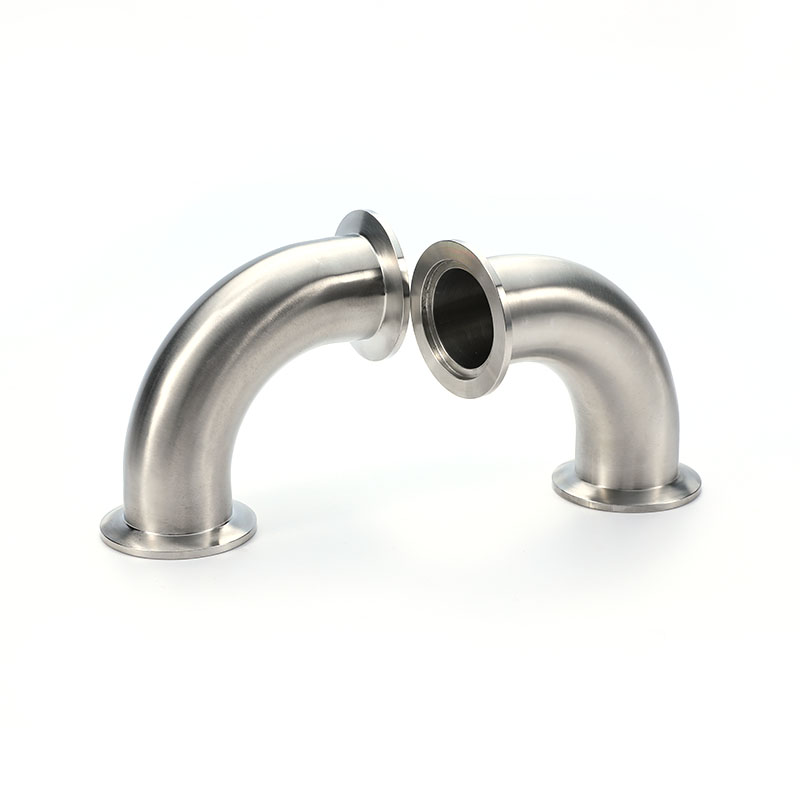

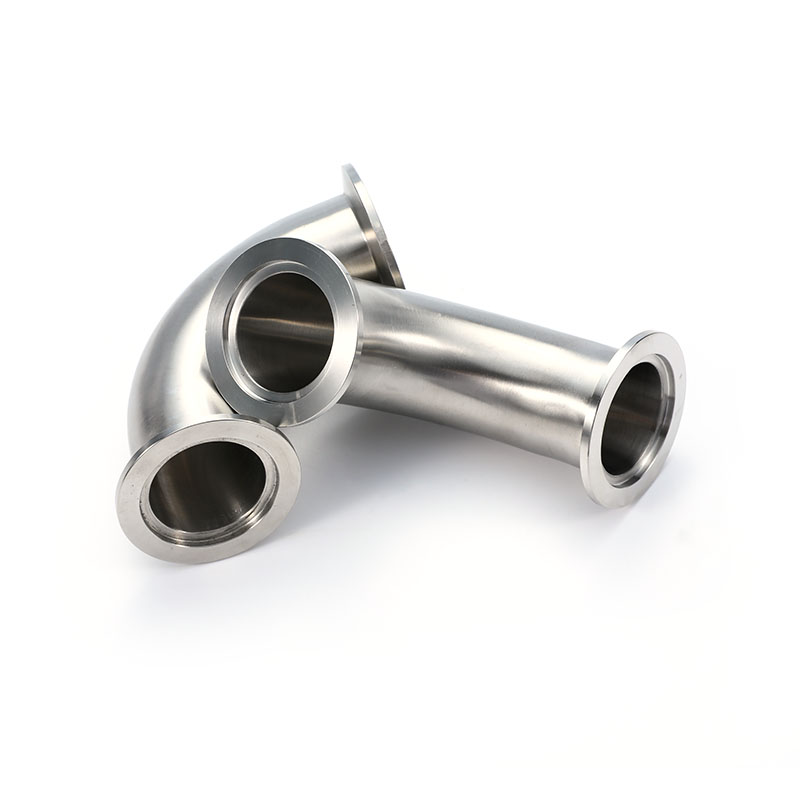

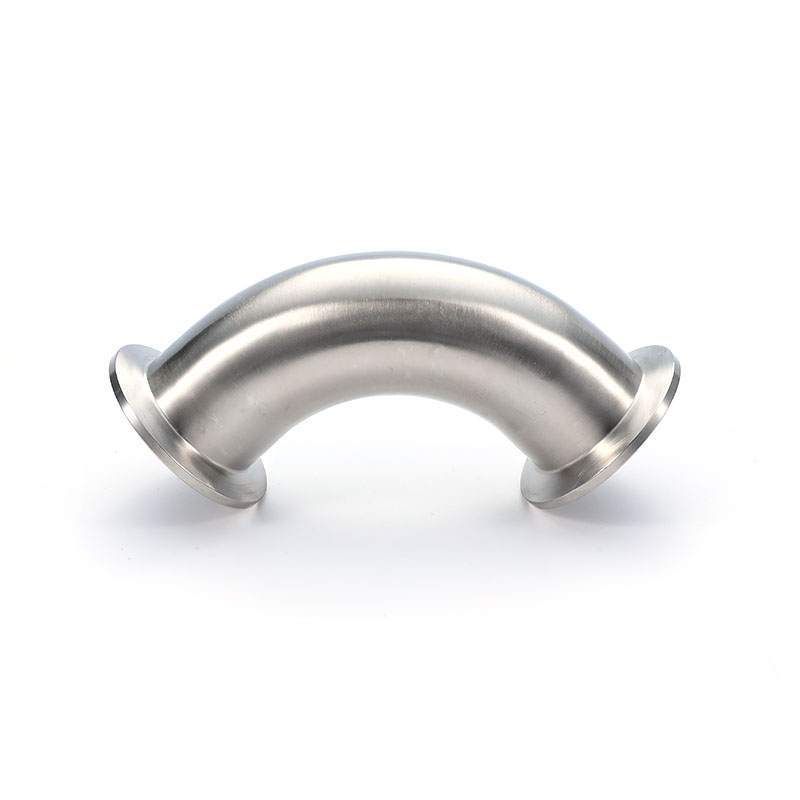

This 90° clamp elbow is designed for systems requiring quick adjustments or frequent disassembly, such as validation areas and filter outlet connections. We utilize a highly polished clamp face to ensure even pressure on the sealing ring, preventing the formation of microbial retention areas. Its structure allows for high-purity bending installations in densely piped or space-constrained equipment sections, offering flexible use.
| Size | A | R | L1 | K1 | T | ||||||||
| 1/2" | 12.7 | 19 | 41.3 | 25.4 | 1.65 | ||||||||
| 3/4" | 19 | 28.6 | 41.3 | 25.4 | 1.65 | ||||||||
| 1" | 25.4 | 38.1 | 50.8 | 50.5 | 1.65 | ||||||||
| 1 1/2" | 38.1 | 57.2 | 69.9 | 50.5 | 1.65 | ||||||||
| 2" | 50.8 | 76.2 | 88.9 | 64 | 1.65 | ||||||||
| 2 1/2" | 63.5 | 95.3 | 108 | 77.5 | 1.65 | ||||||||
| 3" | 76.2 | 114.3 | 127 | 91 | 1.65 | ||||||||
| 4" | 101.6 | 152.4 | 168.3 | 119 | 2.11 | ||||||||
| 6" | 152.4 | 288.6 | 266.7 | 166.8 | 2.77 | ||||||||
