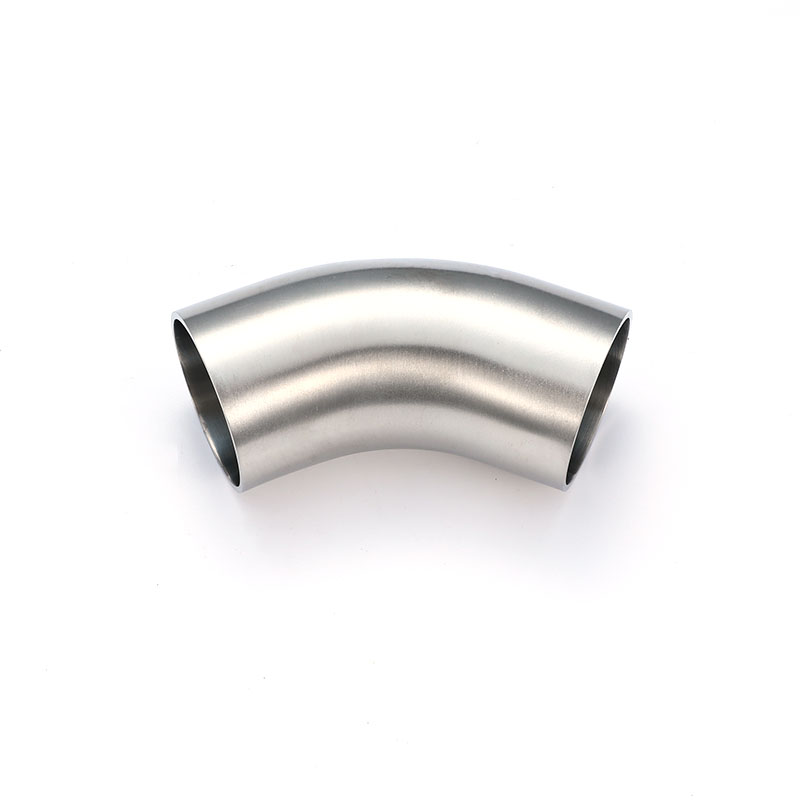

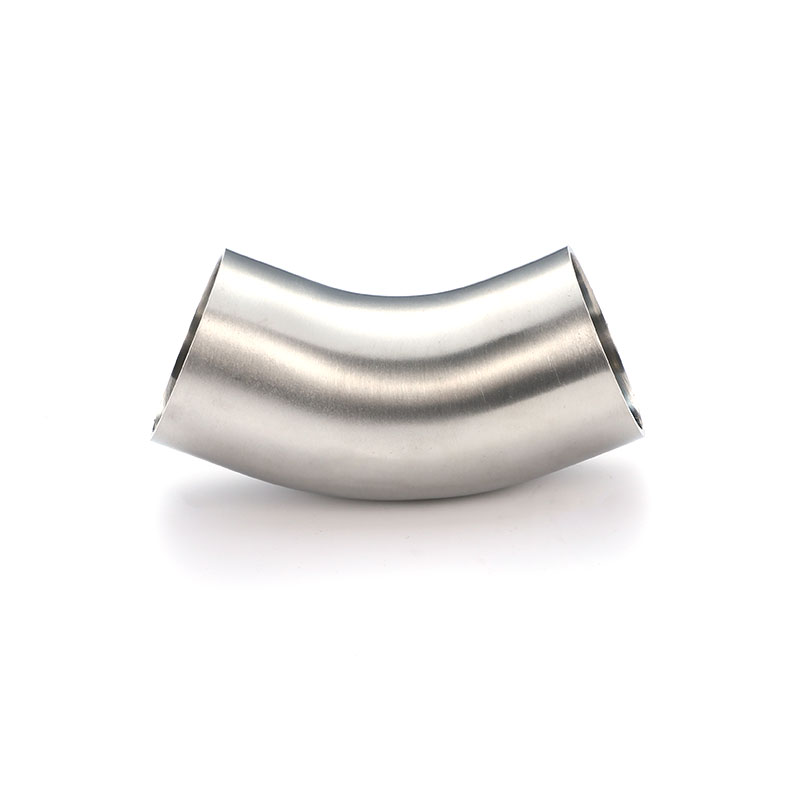

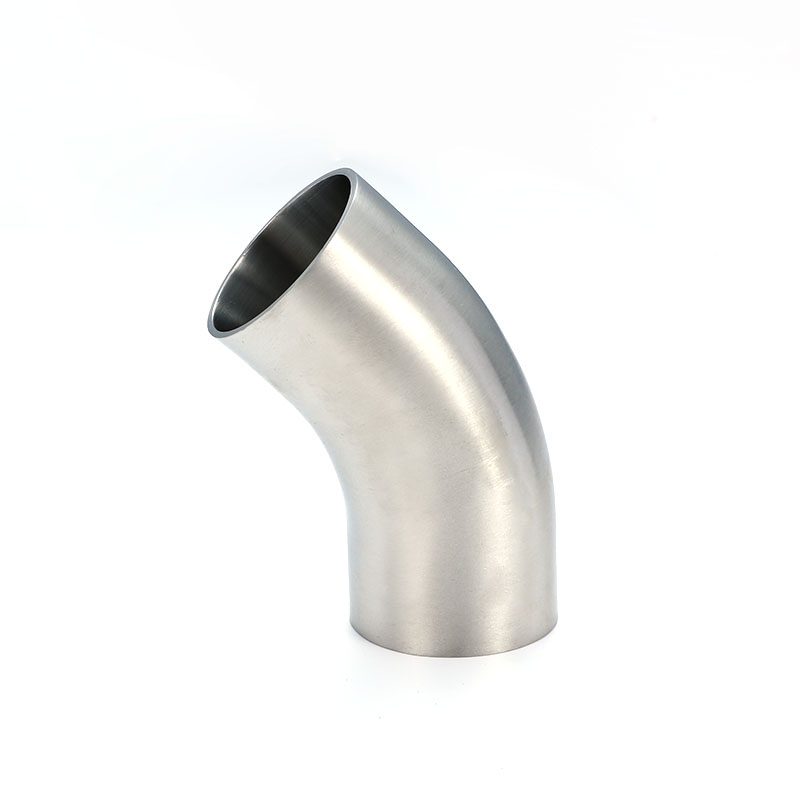

This long 45° elbow features a longer arc section than conventional models, providing a smoother fluid transition during turns. It is suitable for processes sensitive to fluid shear, such as the transfer of slurries, creams, and mixed liquids. The product is manufactured with welding dimensions strictly according to DIN standards, and the inner wall is mirror-polished to reduce deposits. Due to its extended design, it is more suitable for applications with larger straight pipe spans and is a commonly used component for optimizing fluid paths in production lines.
| DN | A×B | L1 | L2 | T |
| 25-20 | 28×22 | 50 | 17 | 1.5 |
| 32-25 | 34×28 | 55 | 19.5 | 1.5 |
| 40-25 | 40×28 | 60 | 22.5 | 1.5 |
| 40-32 | 40×34 | 60 | 22.5 | 1.5 |
| 50-25 | 52×28 | 70 | 29.5 | 2 |
| 50-32 | 52×34 | 70 | 29.5 | 2 |
| 50-40 | 52×40 | 70 | 29.5 | 2 |
| 65-25 | 70×28 | 80 | 39 | 2 |
| 65-32 | 70×34 | 80 | 39 | 2 |
| 65-40 | 70×40 | 80 | 39 | 2 |
| 65-50 | 70×52 | 80 | 46.5 | 2 |
| 80-25 | 85×28 | 90 | 46.5 | 2 |
| 80-32 | 85×34 | 90 | 46.5 | 2 |
| 80-40 | 85×40 | 90 | 46.5 | 2 |
| 80-50 | 85×52 | 90 | 46.5 | 2 |
| 80-65 | 85×70 | 90 | 46.5 | 2 |
| 100-25 | 104×28 | 100 | 56 | 2 |
| 100-32 | 104×34 | 100 | 56 | 2 |
| 100-40 | 104×40 | 100 | 56 | 2 |
| 100-50 | 104×52 | 100 | 56 | 2 |
| 100-65 | 104×70 | 100 | 56 | 2 |
| 100-80 | 104×85 | 187.5 | 56 | 2 |
| 125-25 | 129×28 | 187.5 | 68.5 | 2 |
| 125-32 | 129×104 | 187.5 | 68.5 | 2 |
| 125-40 | 129×104 | 187.5 | 68.5 | 2 |
| 125-50 | 129×104 | 187.5 | 68.5 | 2 |
| 125-65 | 129×104 | 187.5 | 68.5 | 2 |
| 125-80 | 129×104 | 187.5 | 68.5 | 2 |
| 125-100 | 129×104 | 187.5 | 68.5 | 2 |
| 150-32 | 154×34 | 225 | 81 | 2 |
| 150-40 | 154×40 | 255 | 81 | 2 |
| 150-50 | 154×52 | 255 | 81 | 2 |
| 150-65 | 154×70 | 255 | 81 | 2 |
| 150-80 | 154×85 | 255 | 81 | 2 |
| 150-100 | 154×104 | 255 | 81 | 2 |
| 150-125 | 154×129 | 255 | 81 | 2 |
