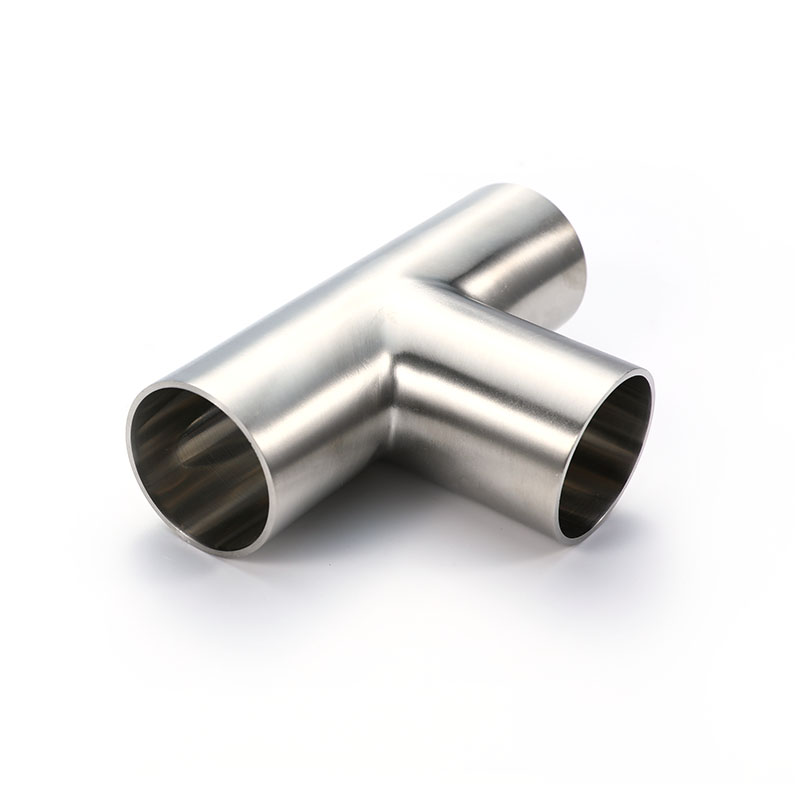

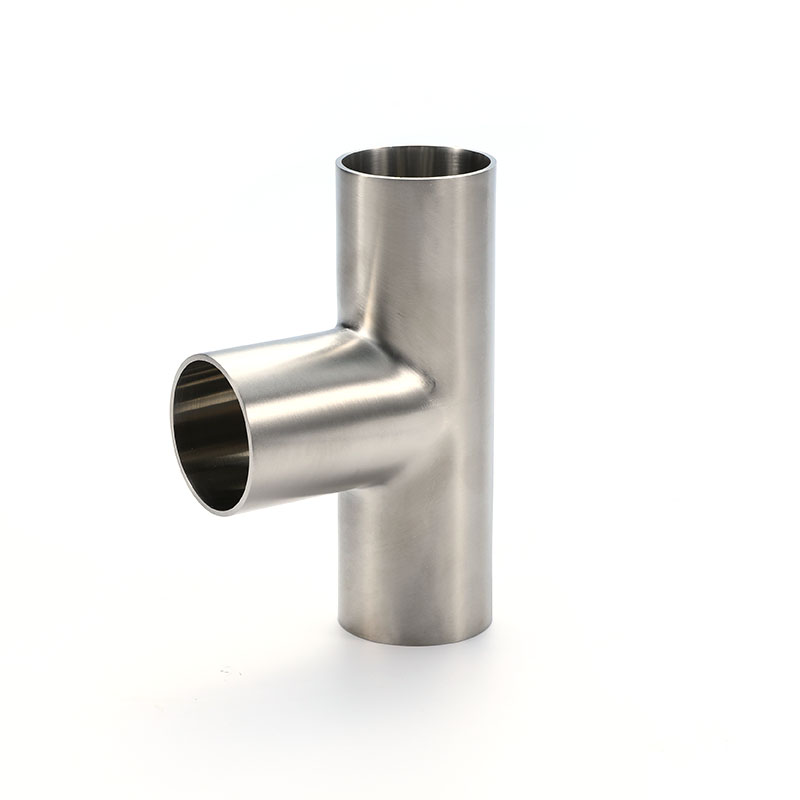

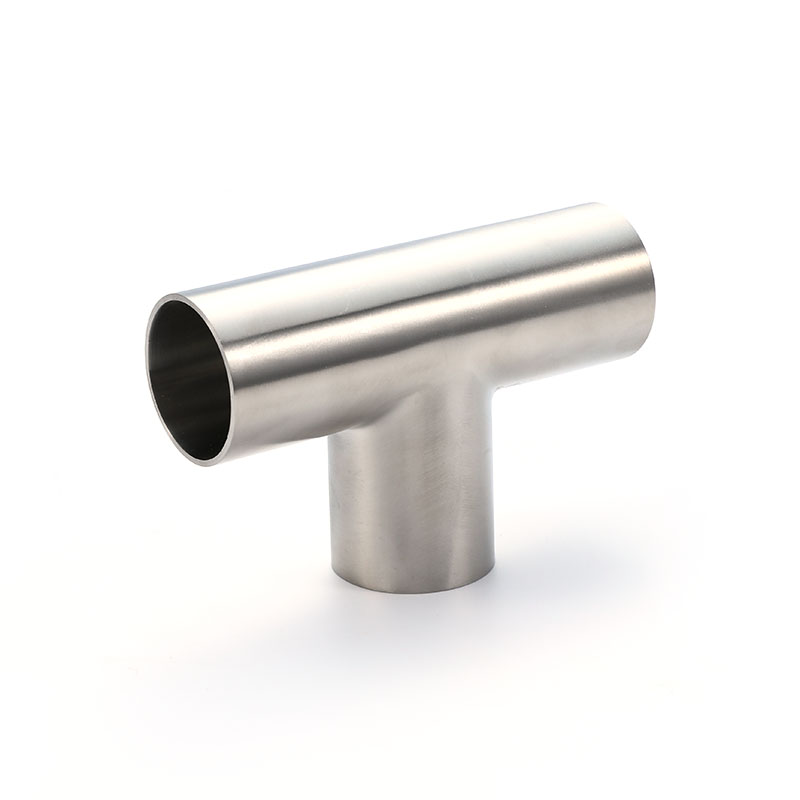

Equal-diameter tees are suitable for process environments where fluid needs to be evenly distributed into two branches or where two streams of liquid are combined into a main pipe. The product is manufactured using a combination of integral molding and welding processes, ensuring symmetrical dimensions in all three directions and a smooth internal flow path. Its hygienic polished surface meets food-grade requirements, satisfying the cleanliness demands of dairy, juice, and beer production processes, and is a fundamental distribution component in standard SMS piping systems.
| Size | A | L1 | L2 | L3 | T | ||||||
| 25 | 25 | 110 | 55 | 26.7 | 1.2 | ||||||
| 38 | 38 | 140 | 70 | 33.7 | 1.2 | ||||||
| 51 | 51 | 164 | 81 | 41.2 | 1.2 | ||||||
| 63.5 | 63.5 | 210 | 105 | 48 | 1.6 | ||||||
| 76 | 76.1 | 220 | 110 | 54.2 | 1.6 | ||||||
| 101.6 | 101.6 | 300 | 150 | 70.5 | 2 | ||||||
