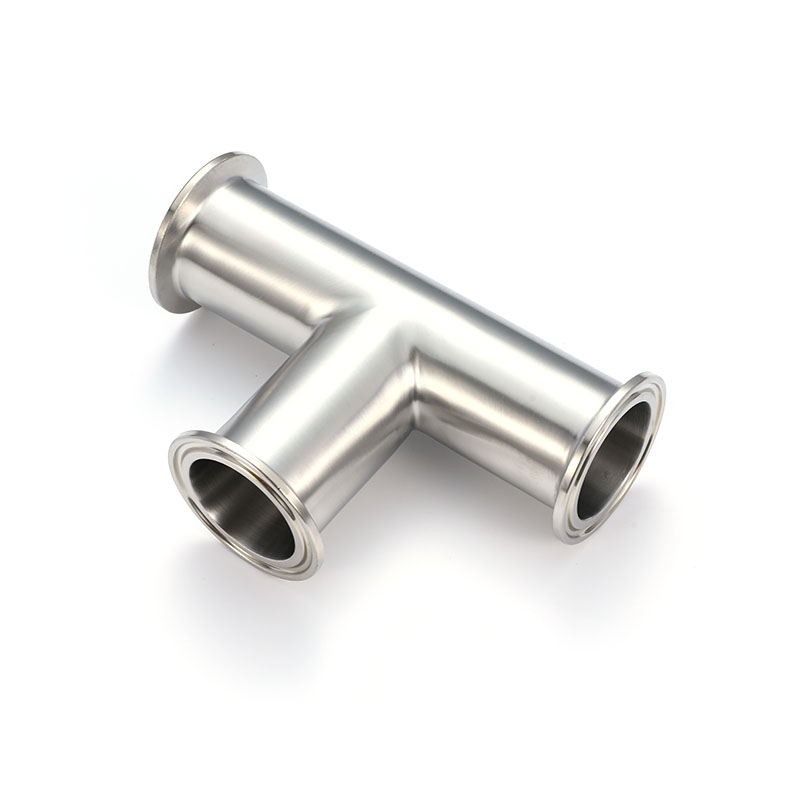

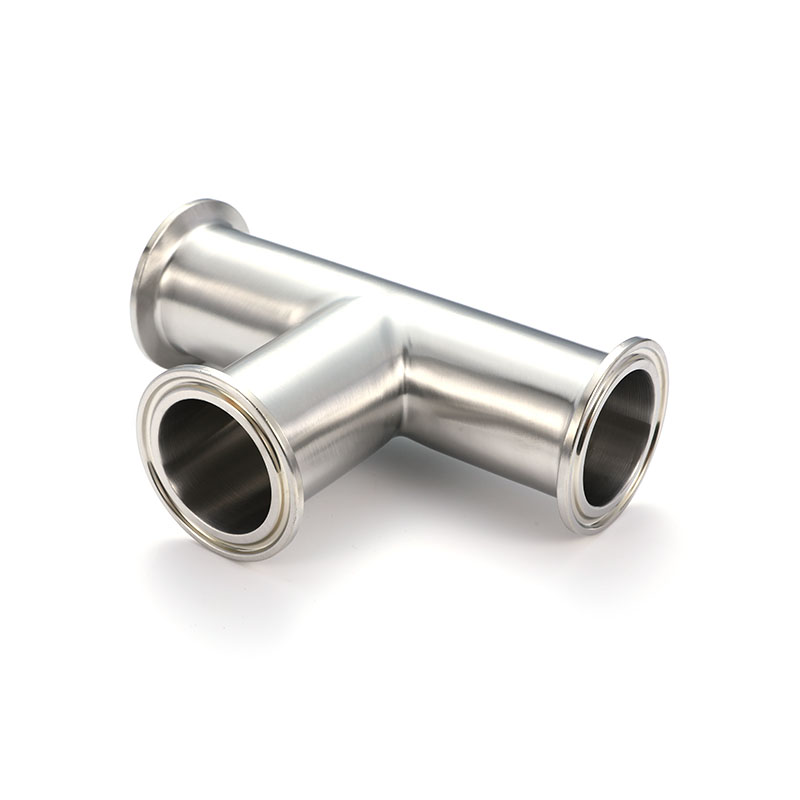

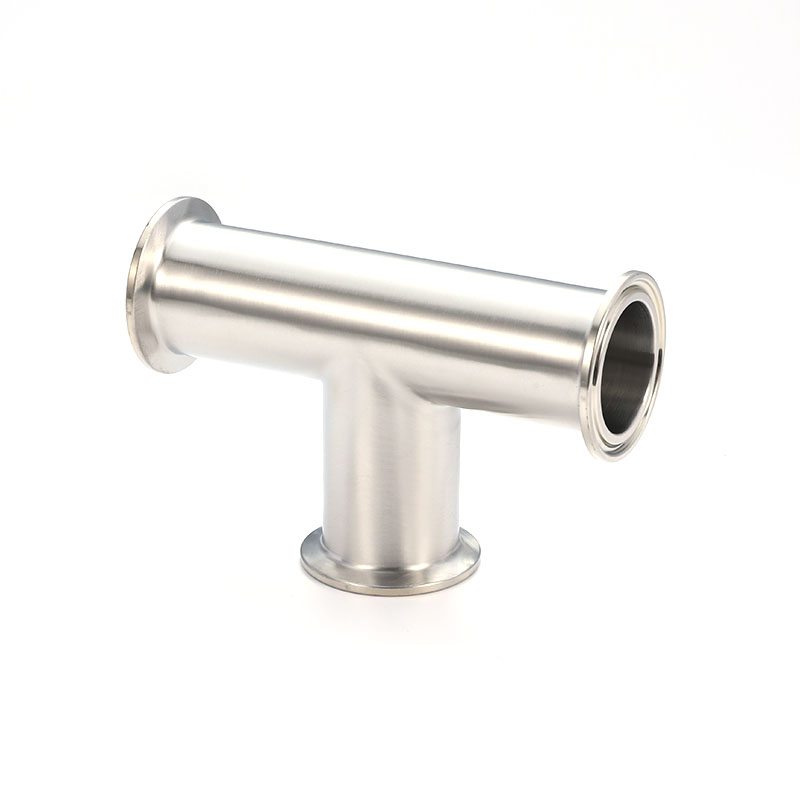

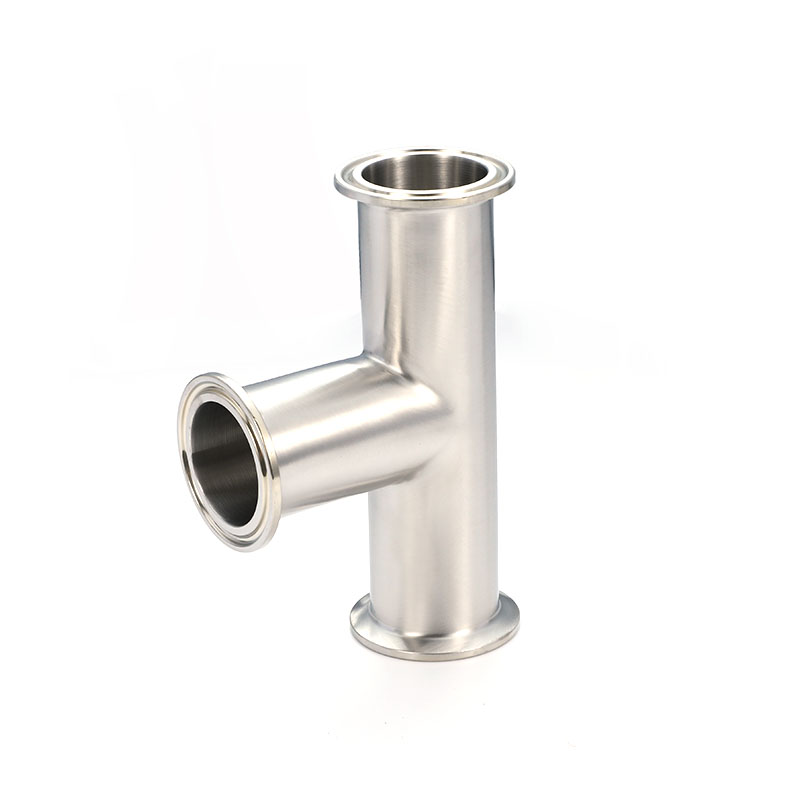

The clamp-type tee connector supports quick assembly and modular combination. We utilize seamless branching technology to ensure smoother internal transitions and facilitate CIP and SIP hygienic cleaning. It is suitable for production lines where flow direction is frequently changed, test equipment is added, or temporary branches are required. The clamp interface allows maintenance personnel to disassemble the connector without tools, improving factory operating efficiency.
| Size | A | L1 | K1 | T | |||||||
| 1/2" | 12.7 | 57.2 | 25.4 | 1.65 | |||||||
| 3/4" | 19 | 60.3 | 25.4 | 1.65 | |||||||
| 1" | 25.4 | 66.7 | 50.5 | 1.65 | |||||||
| 1 1/2" | 38.1 | 73 | 50.5 | 1.65 | |||||||
| 2" | 50.8 | 85.7 | 64 | 1.65 | |||||||
| 2 1/2" | 63.5 | 92.1 | 77.5 | 1.65 | |||||||
| 3" | 76.2 | 98.4 | 91 | 1.65 | |||||||
| 4" | 101.6 | 120.7 | 119 | 12.11 | |||||||
| Size | A×B | L1 | L2 | T | |||
| 1.5"-1" | 31.8×25.4 | 29 | 35 | 1.6 | |||
| 2"-1* | 50.8×25.4 | 53 | 54 | 1.6 | |||
| 2'-1.5" | 50.8×38.1 | 41 | 36 | 1.6 | |||
| 2.5"-1" | 63.5×25.4 | 82 | 76 | 1.6 | |||
| 2.5"-1.5" | 63.5×38.1 | 64 | 66 | 1.6 | |||
| 2.5"-2" | 63.5×50.8 | 40 | 35 | 1.6 | |||
| 3"-1' | 76.2×25.4 | 110 | 112 | 1.6 | |||
| 3"-1.5" | 76.2×38.1 | 81 | 38.1 | 1.6 | |||
| 3"-2' | 76.2×50.8 | 55 | 50.8 | 1.6 | |||
| 3"-2.5" | 76.2×63.5 | 41 | 63.5 | 1.6 | |||
| 4"-1.5" | 101.6×38.1 | 135 | 38.1 | 2 | |||
| 4"-2" | 101.6×50.8 | 106 | 50.8 | 2 | |||
| 4"-2.5" | 101.6×63.5 | 76 | 63.5 | 2 | |||
| 4"-3' | 101.6×76.2 | 53 | 76.2 | 2 | |||
