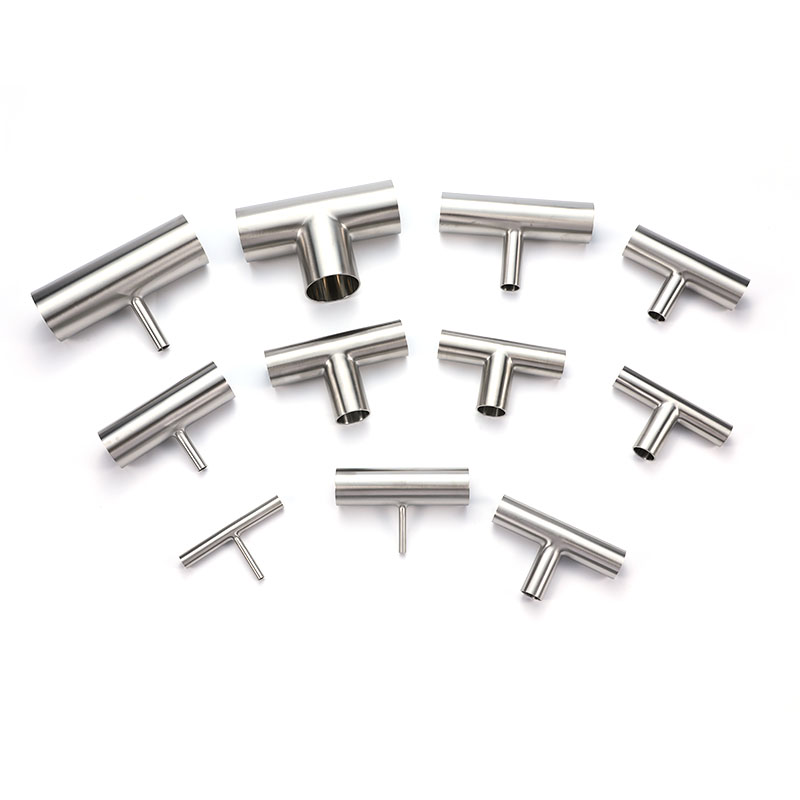

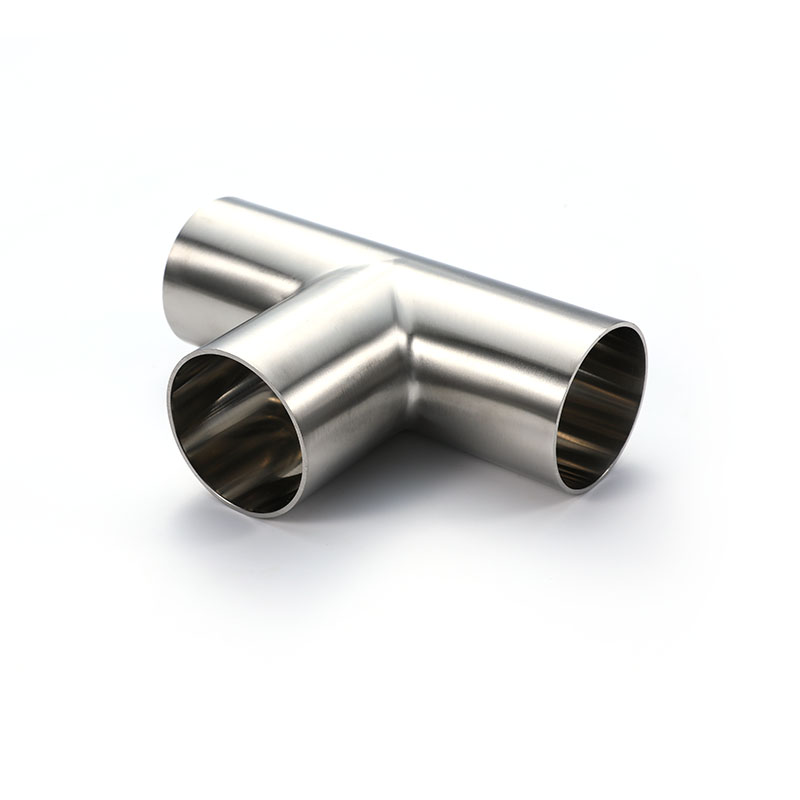

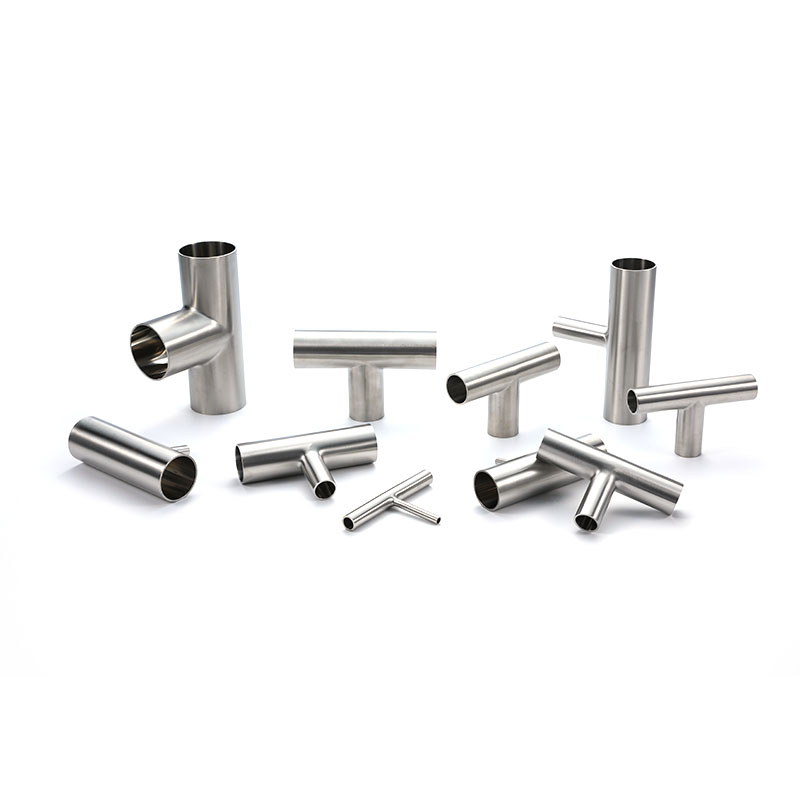

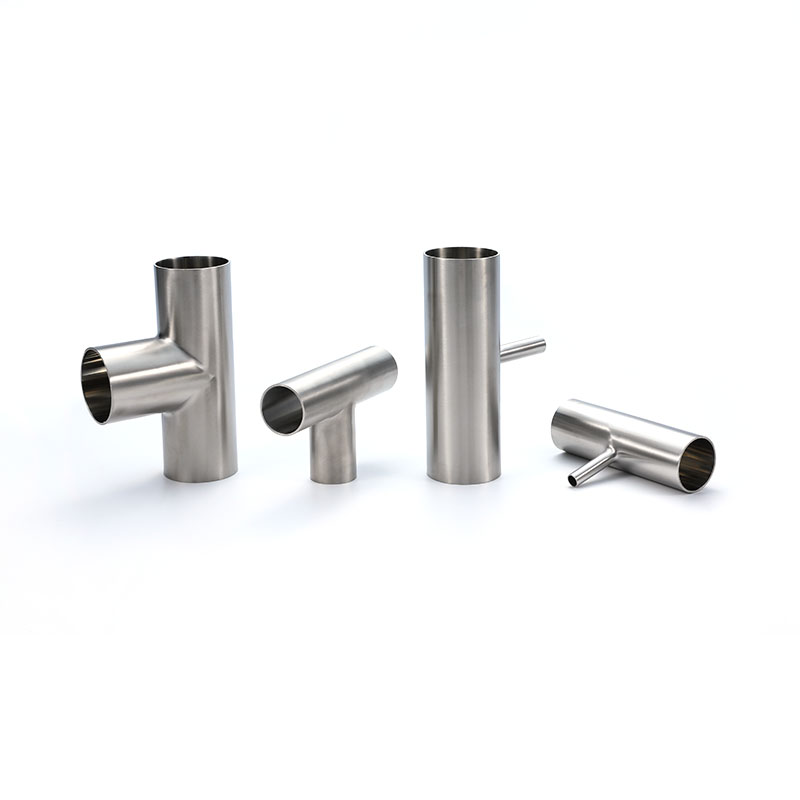

This long-type three-way fitting features an extended main pipe design, ensuring a more stable fluid transition during branching or merging. We strictly control the roundness and coaxiality of the branch pipe connection to the main pipe during the forming process, making it suitable for process piping networks with stricter fluid distribution requirements. The long structure also facilitates welding and equipment wiring, making it a common configuration for large-scale main pipelines.
| Size | A | L1 | T | ||
| 1" | 25.4 | 65 | 1.65 | ||
| 1 1/2" | 38.1 | 85 | 1.65 | ||
| 2" | 50.8 | 110 | 1.65 | ||
| 2 1/2" | 63.5 | 135 | 1.65 | ||
| 3" | 76.2 | 155 | 1.65 | ||
| 4" | 101.6 | 195 | 2.11 | ||
