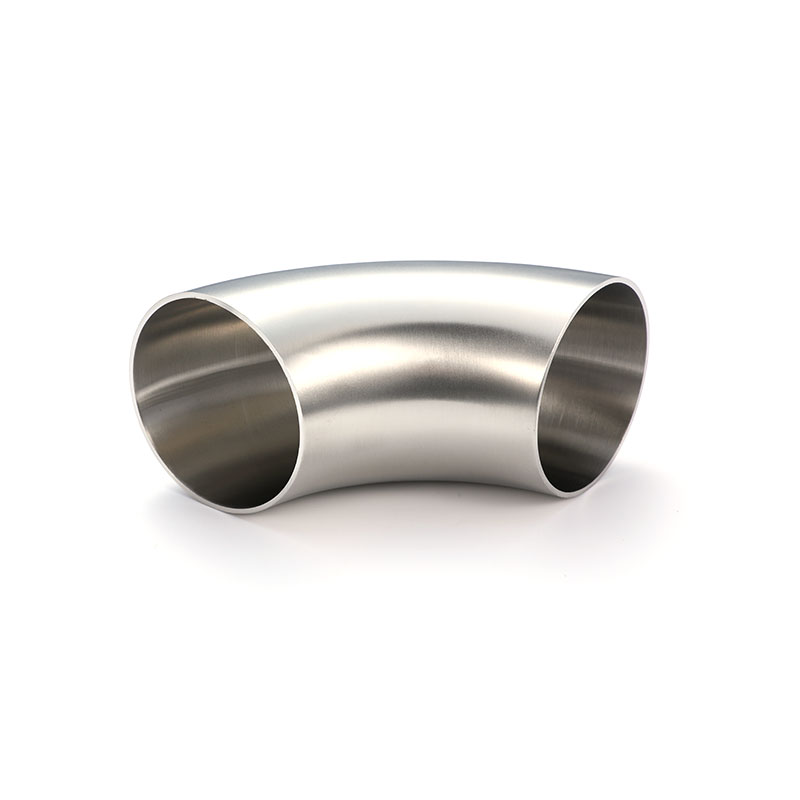

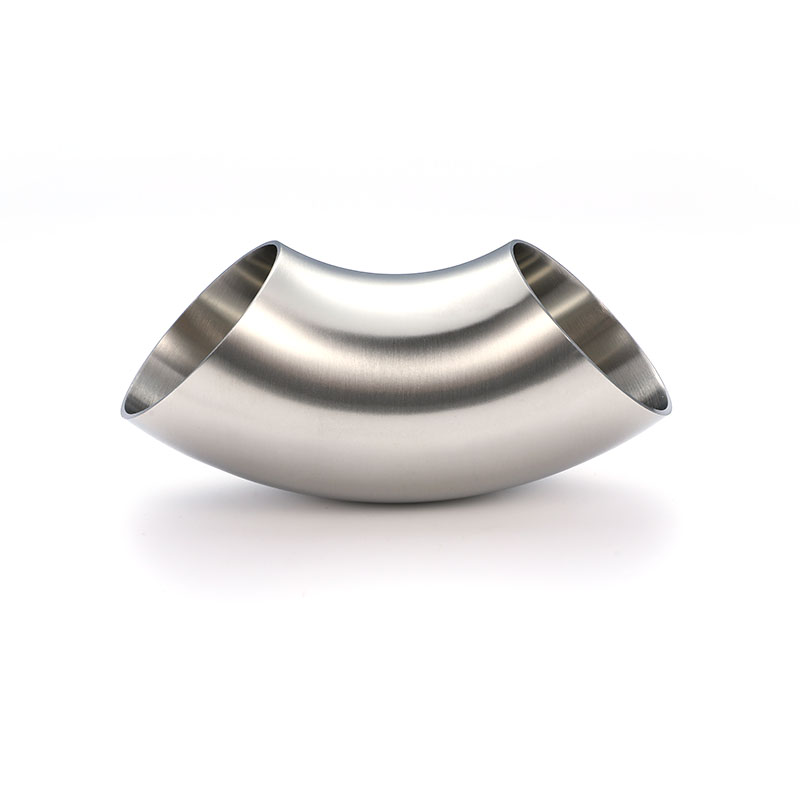

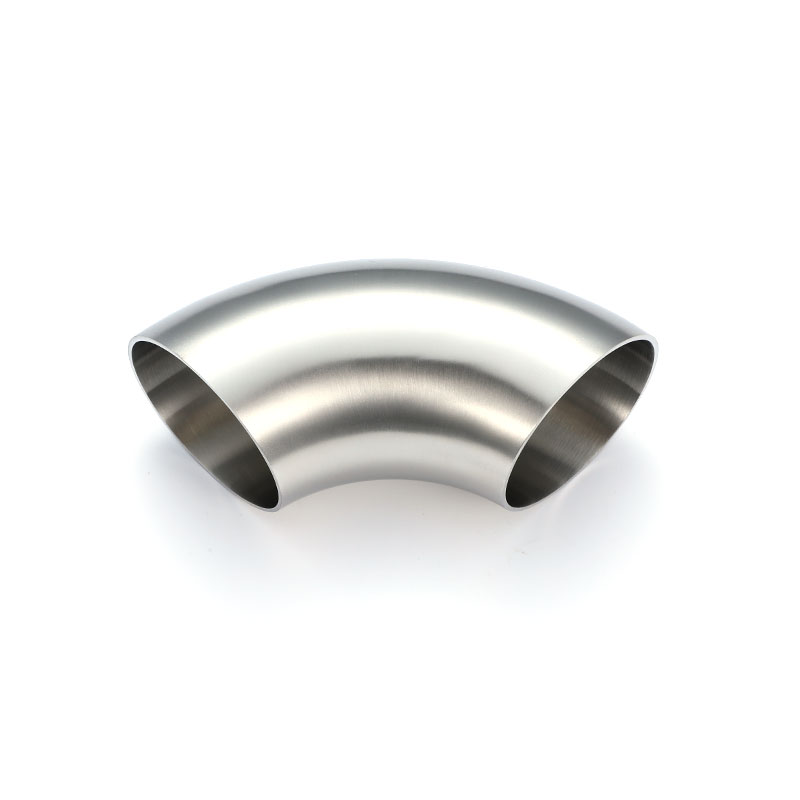

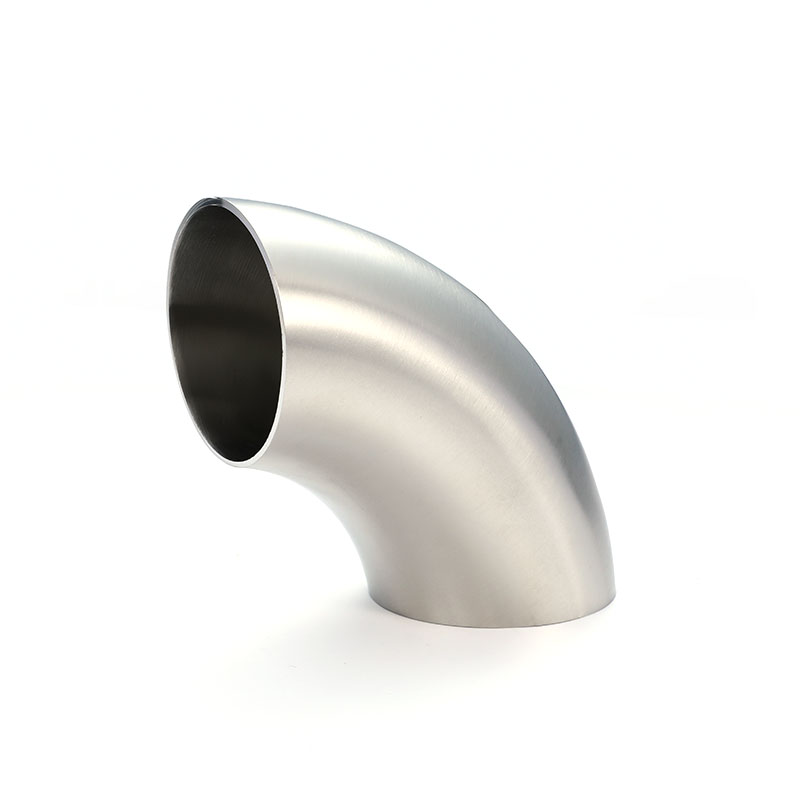

The 90° welded elbow is the most commonly used corner fitting in imperial sanitary piping systems. We ensure precise angles and uniform wall thickness through automatic pipe bending and plasma welding seam trimming processes. This design focuses on structural strength and long-term corrosion resistance, maintaining stable performance in environments with frequent CIP cleaning. It is suitable for large-angle directional changes in process equipment such as food factories and brewing lines, ensuring reliable and smooth fluid transfer.
| Size | A | R | L1 | T | ||
| 1" | 25.4 | 38.1 | 43.5 | 1.65 | ||
| 1 1/4" | 31.8 | 47.7 | 53.5 | 1.65 | ||
| 1 1/2" | 38.1 | 57.2 | 63.5 | 1.65 | ||
| 2" | 50.8 | 76.2 | 88.5 | 1.65 | ||
| 2 1/2" | 63.5 | 95.3 | 113.5 | 1.65 | ||
| 3" | 76.2 | 114.3 | 133.5 | 1.65 | ||
| 4 | 101.6 | 152.4 | 173.5 | 2.11 | ||
| Size | A | R | L1 | T | ||
| 1/2" | 12.7 | 19.05 | 49.1 | 1.6 | ||
| 3/4" | 19.1 | 28.6 | 58.6 | 1.6 | ||
| 1" | 25.4 | 38.1 | 68.1 | 1.6 | ||
| 1 1/4" | 31.8 | 47.7 | 77.7 | 1.6 | ||
| 1 1/2" | 38.1 | 57.2 | 87 | 1.6 | ||
| 2" | 50.8 | 76.2 | 106.2 | 1.6 | ||
| 2 1/2" | 63.5 | 95 | 125 | 1.6 | ||
| 3" | 76.2 | 114.3 | 144.2 | 1.6 | ||
| 4" | 101.6 | 152.4 | 152.4 | 2 | ||
