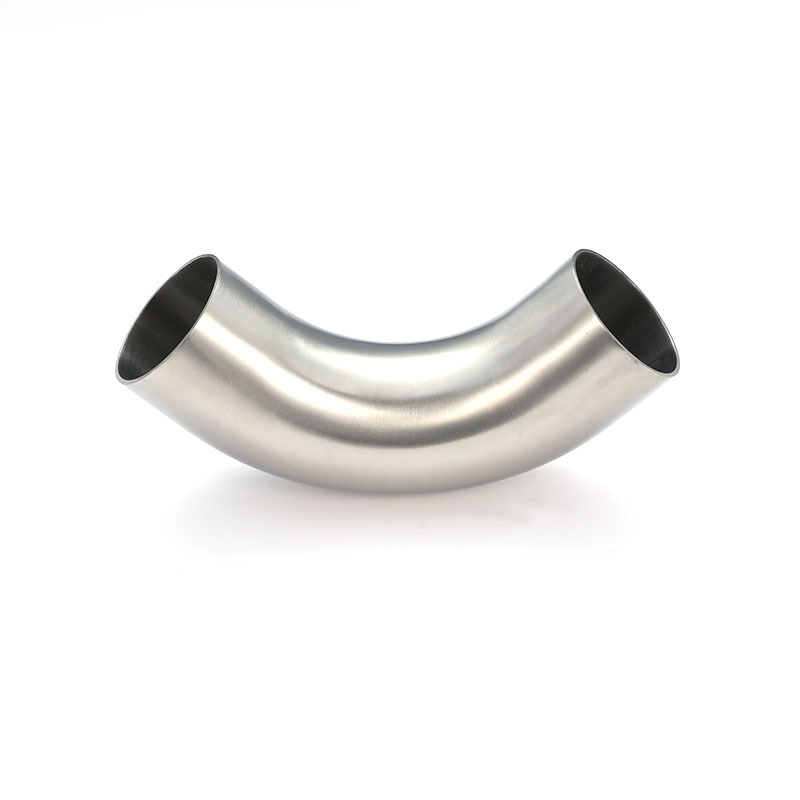

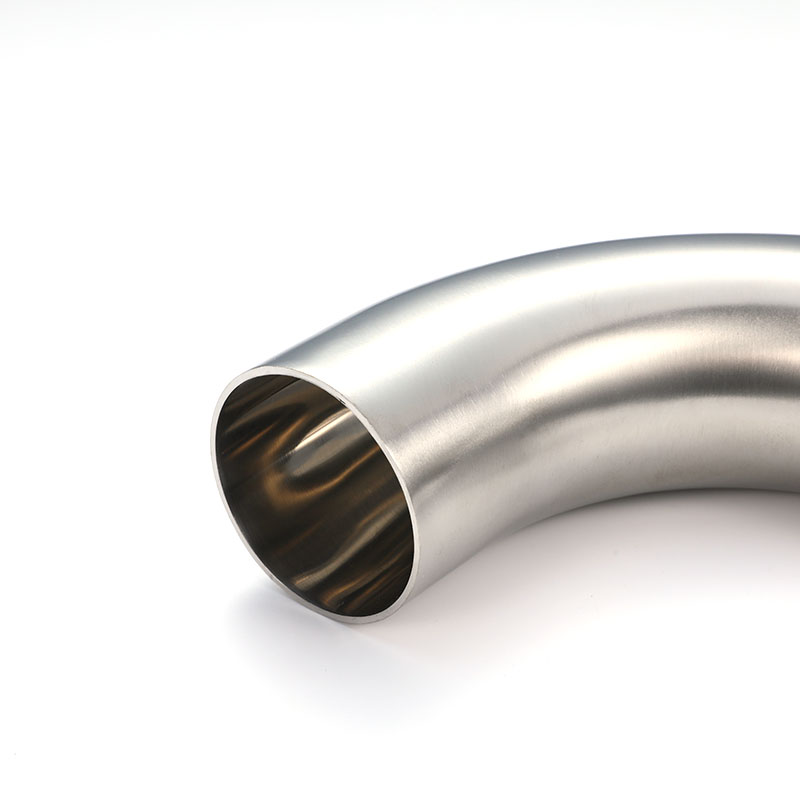

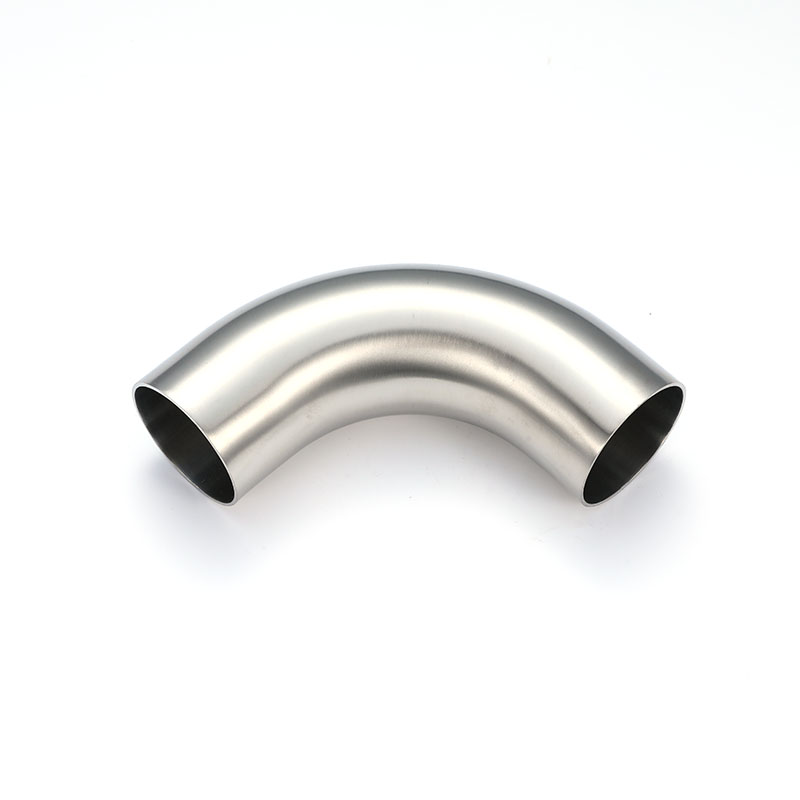

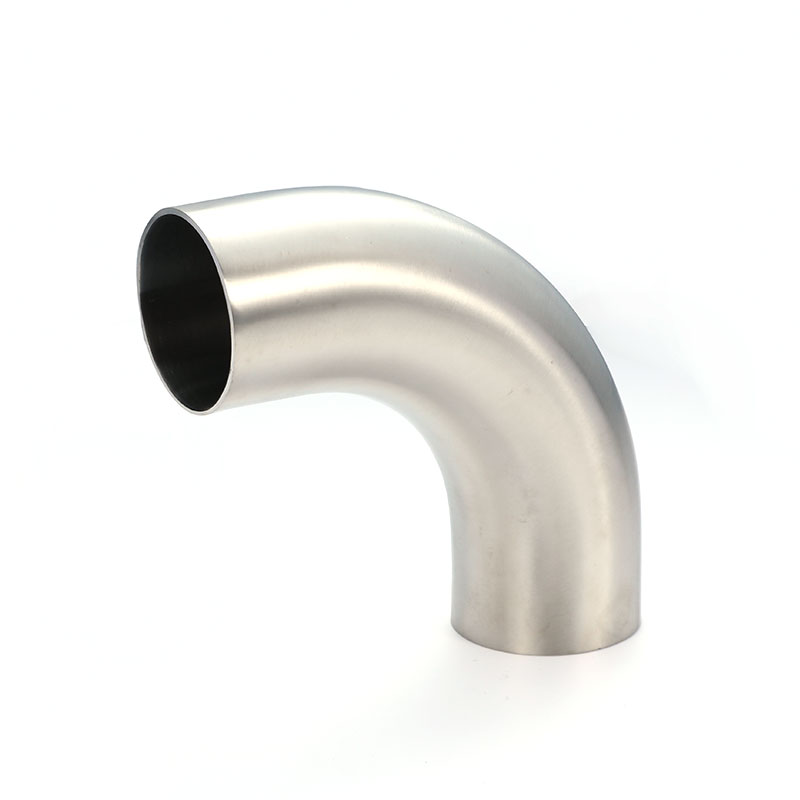

Compared to standard 90° elbows, this long-radius design features a larger bending radius, reducing fluid impact and pressure drop, making it suitable for high-speed fluid or large-particle material conveying applications. Made from high-quality 316L stainless steel and treated with pickling, polishing, and anti-corrosion processes, it offers extended service life. Its gentle curvature helps reduce wear and media retention, making it a commonly used upgraded sanitary fitting in large-scale food, brewing, and chemical equipment.
| Size | A | R | L1 | T | ||
| DN10 | 12/13 | 26 | 38 | 1.5 | ||
| DN15 | 18/19 | 35 | 47/60 | 1.5 | ||
| DN20 | 22/23 | 40 | 52/65 | 1.5 | ||
| DN25 | 28/29 | 50 | 70/90 | 1.5 | ||
| DN32 | 34/35 | 55 | 78/95 | 1.5 | ||
| DN40 | 40/41 | 60 | 85/100 | 1.5 | ||
| DN50 | 52/53 | 70 | 97/110 | 1.5 | ||
| DN65 | 70 | 80 | 110/120 | 2 | ||
| DN80 | 85 | 90 | 118/145 | 2 | ||
| DN100 | 104 | 100 | 140/155 | 2 | ||
| DN125 | 129 | 187 | 227 | 2 | ||
| DN150 | 154 | 225 | 225 | 2 | ||
