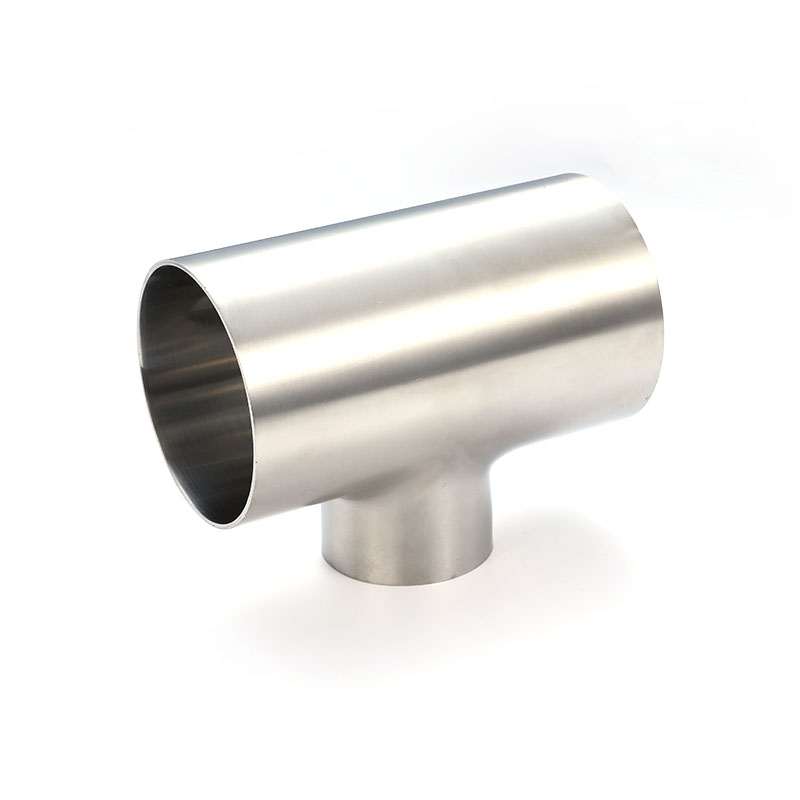

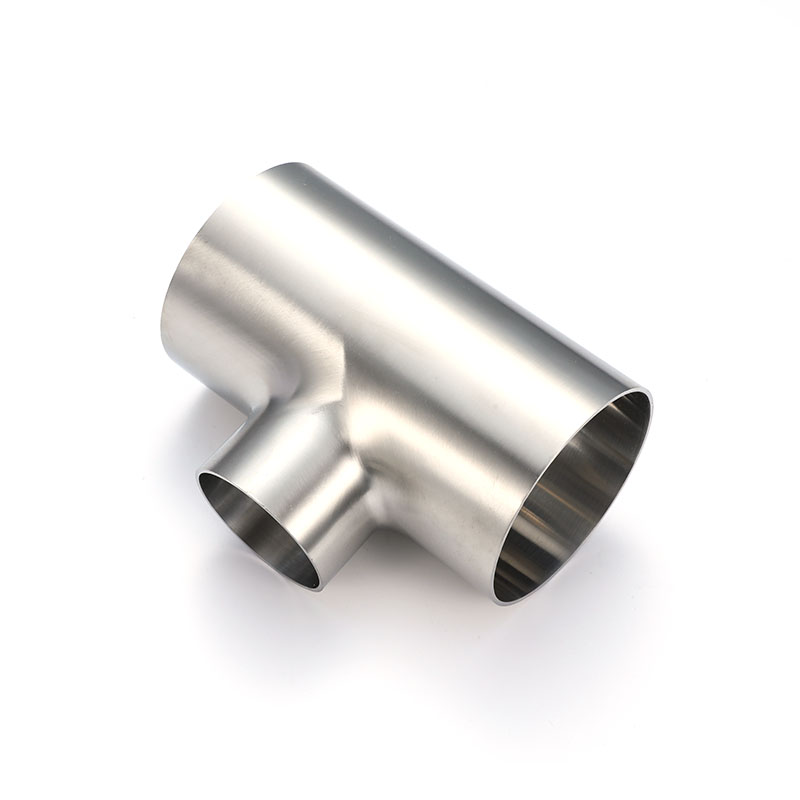

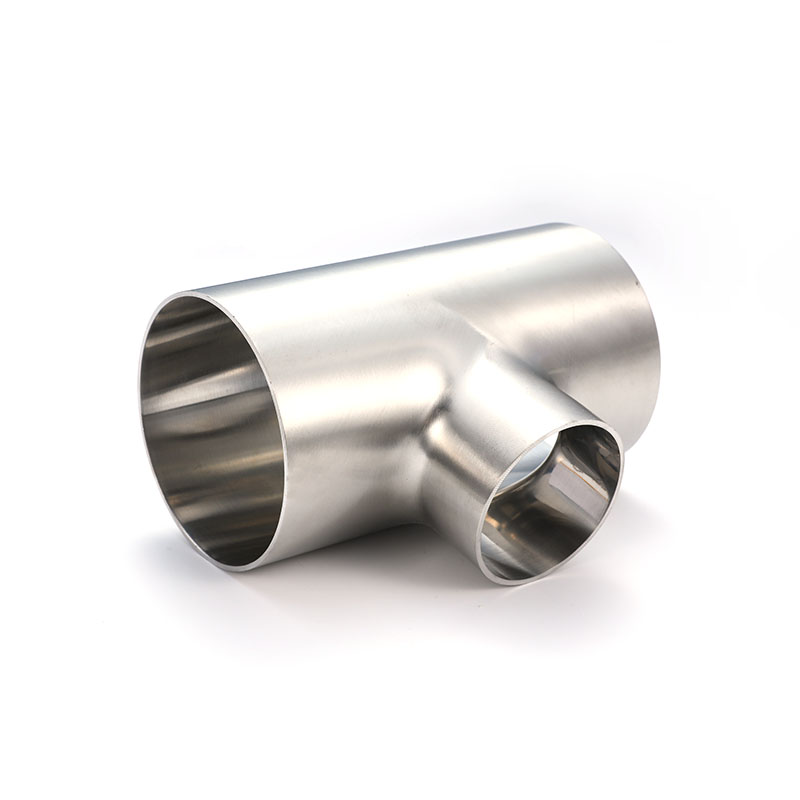

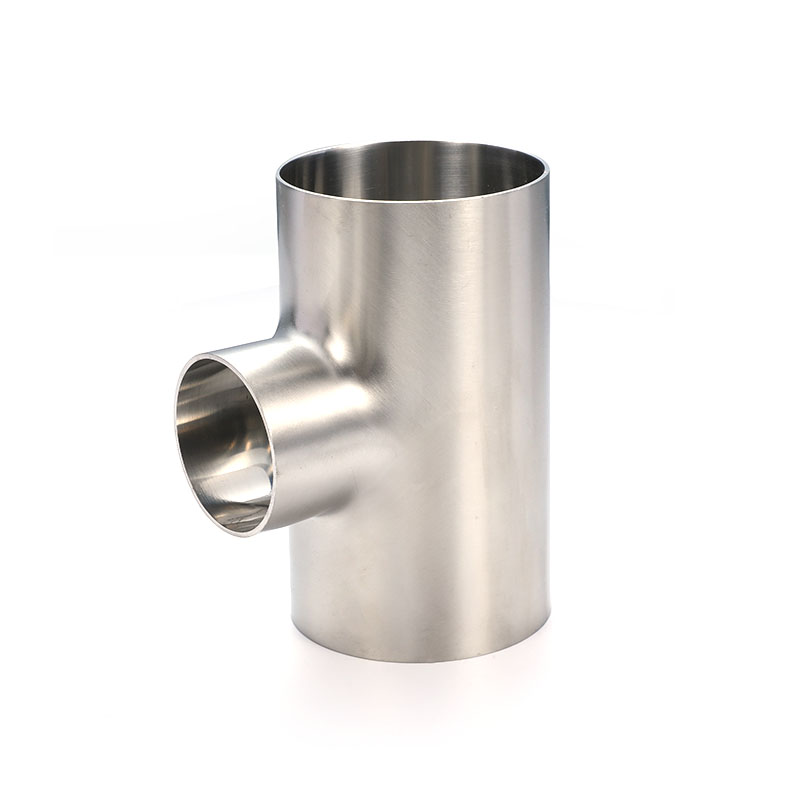

This standard welded tee is made of corrosion-resistant steel and features a one-piece molded design, suitable for most conventional branching requirements in SA process pipelines. Its branch connection has a smooth transition, and the internal welds are treated to facilitate CIP (Clean-in-Place) cleaning, minimizing media residue. It is the most widely used and versatile basic tee structure, serving as a stable connecting component between main and branch lines in factories.
| Size | A | L1 | T | ||||||
| 1/2" | 12.7 | 19.1 | 1.6 | ||||||
| 3/4" | 19.1 | 28.6 | 1.6 | ||||||
| 1" | 25.4 | 38.1 | 1.6 | ||||||
| 1 1/4" | 31.8 | 47.7 | 1.6 | ||||||
| 1 1/2" | 38.1 | 57 | 1.6 | ||||||
| 2" | 50.8 | 76.2 | 1.6 | ||||||
| 2 1/2" | 63.5 | 95 | 1.6 | ||||||
| 3" | 76.2 | 114.2 | 1.6 | ||||||
| 4" | 101.6 | 152.4 | 2 | ||||||
