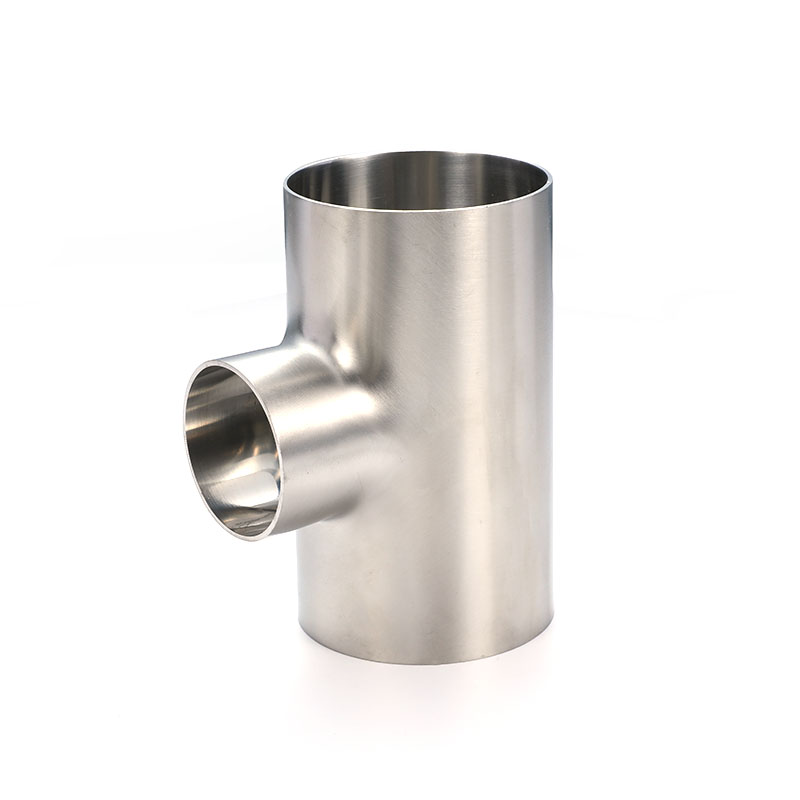

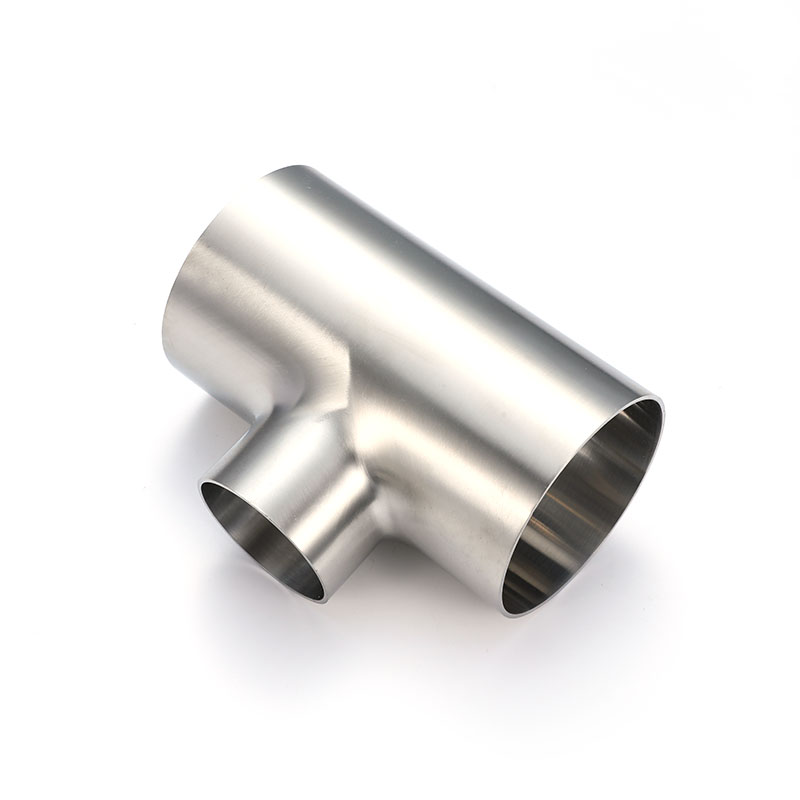

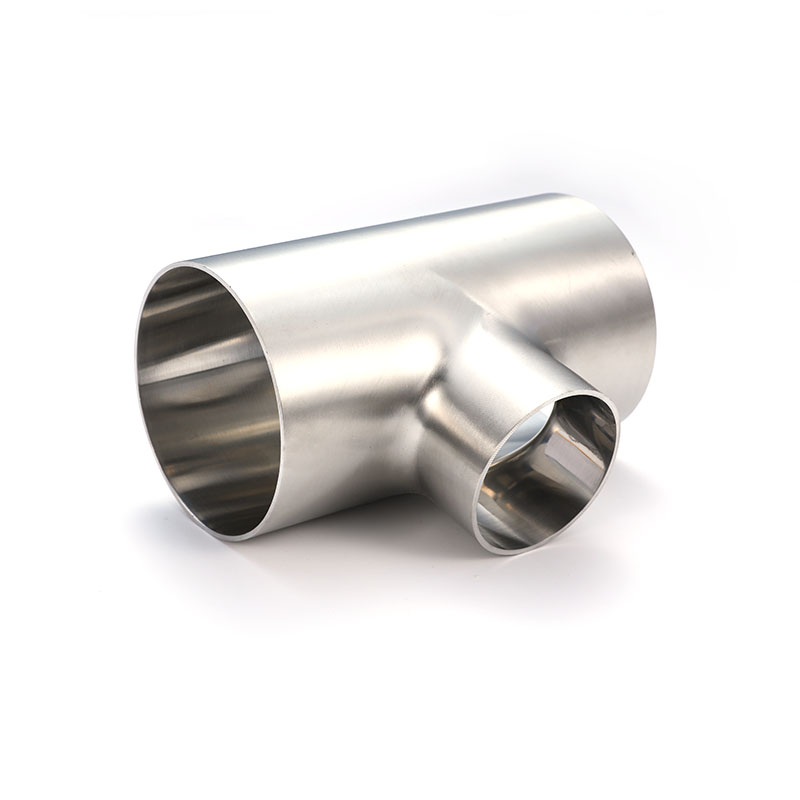

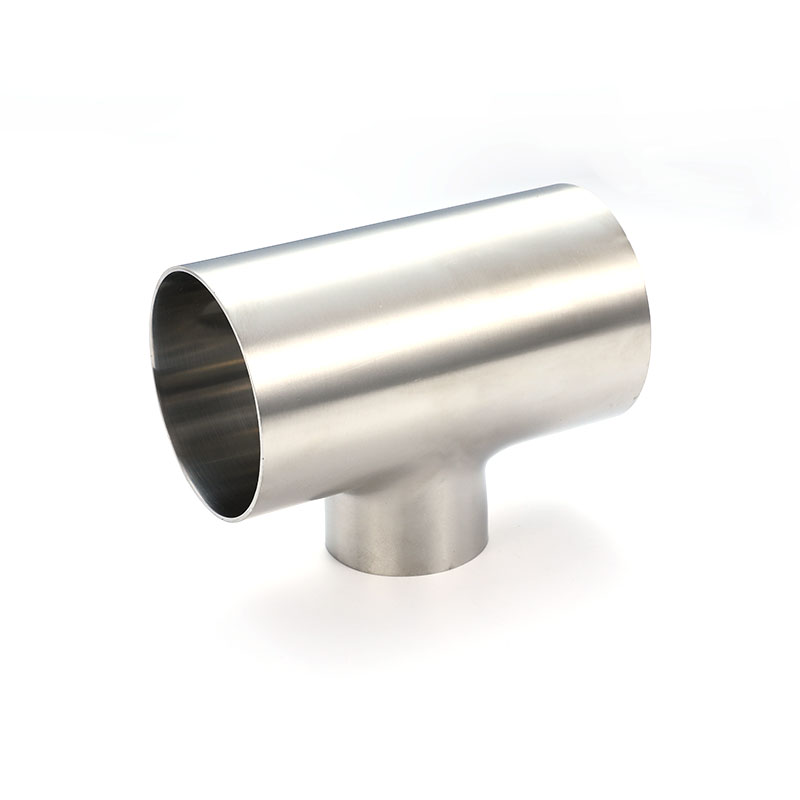

Short-type welded tees are used for branching and merging designs in compact areas. We utilize a one-piece, three-branch structure to ensure the interior remains clean and free of dead spaces, even under high-frequency flushing. The BS size specification guarantees accurate positioning in imperial piping systems. Compared to long-type tees, this model is more suitable for applications within equipment or frame piping where shorter connection distances are required.
| Size | A | L1 | T | |||||
| 1" | 25.4 | 43.5 | 1.65 | |||||
| 1 1/4" | 31.8 | 53.5 | 1.65 | |||||
| 1 1/2" | 38.1 | 63.5 | 1.65 | |||||
| 2" | 50.8 | 88.5 | 1.65 | |||||
| 2 1/2" | 63.5 | 113.5 | 1.65 | |||||
| 3" | 76.2 | 133.5 | 1.65 | |||||
| 4" | 101.6 | 173.5 | 2.11 | |||||
