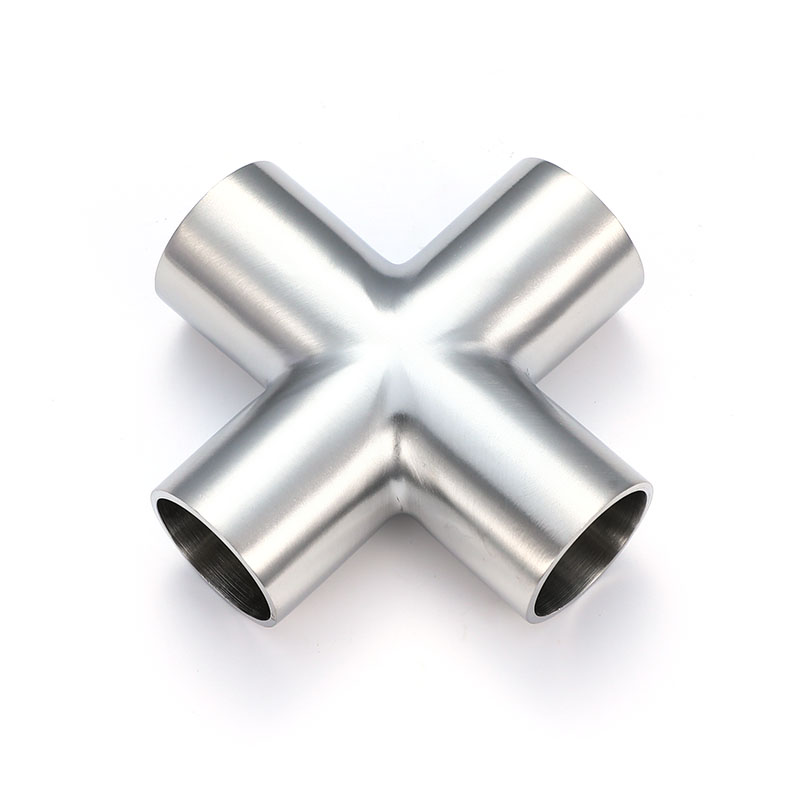

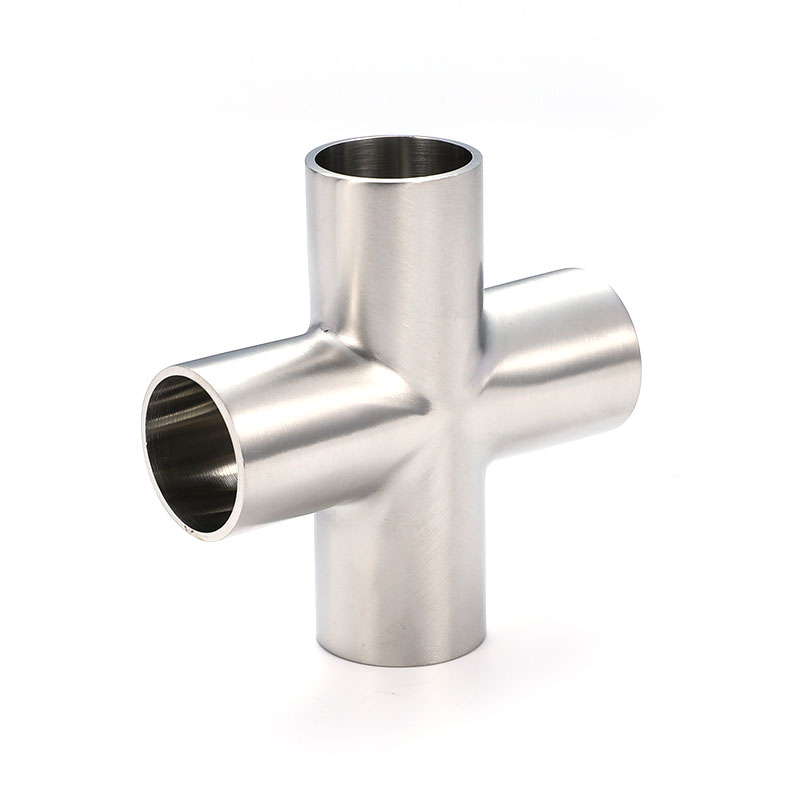

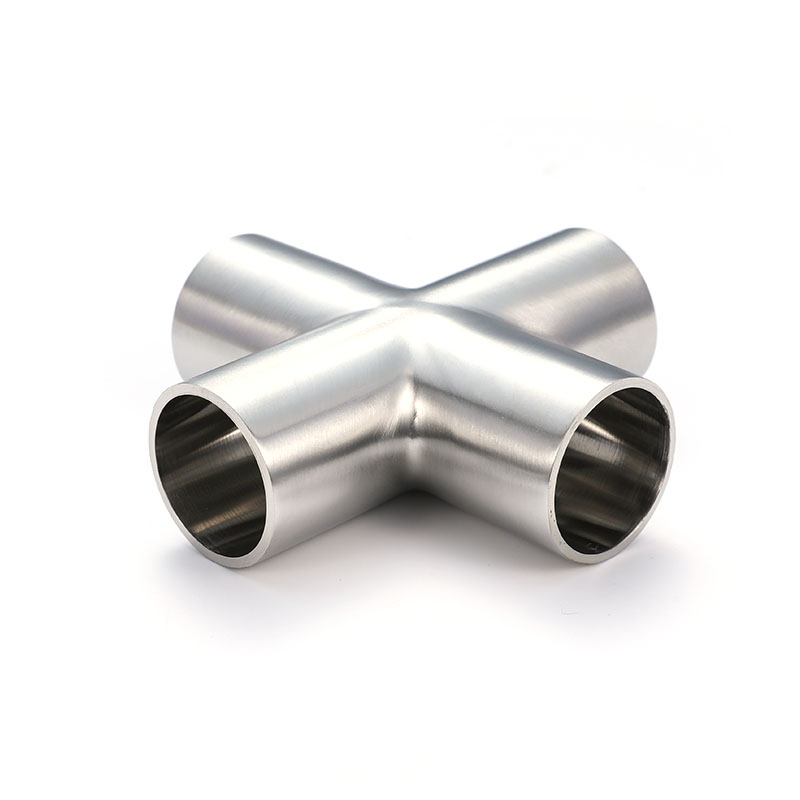

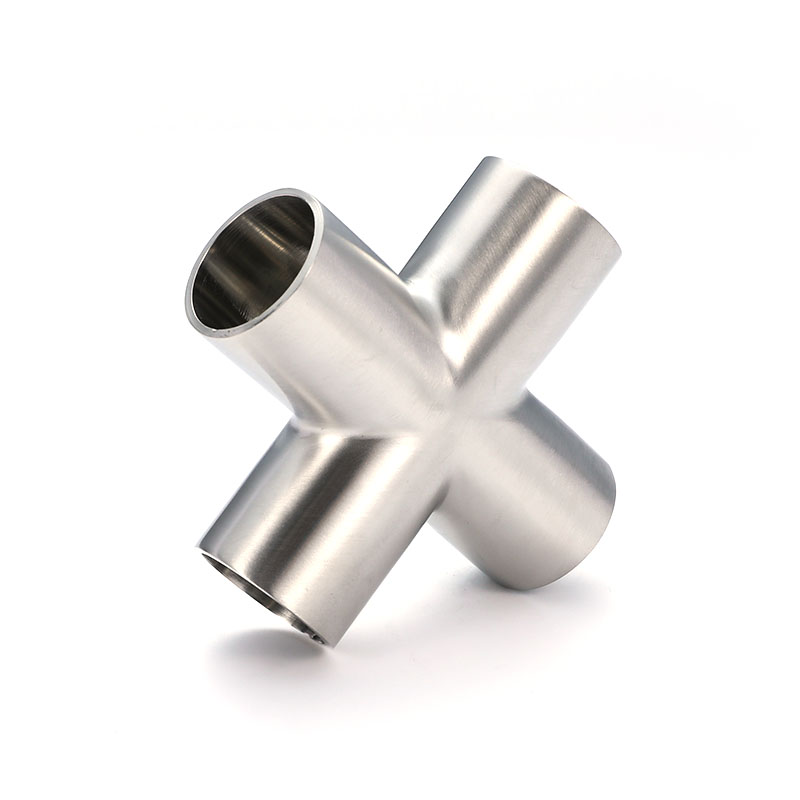

Welded four-way fittings enable multi-directional fluid distribution or merging and are commonly used in multi-branch networks of large-scale production equipment. The product is manufactured with precision molding to ensure consistent angles in all four directions, and the welded ports have a high degree of compatibility with DIN pipes. The interior features multi-stage polishing to ensure hygienic flow paths in all four channels. It is suitable for applications such as multi-line filling, mixing and distribution, or complex process diversion systems, improving overall pipeline layout efficiency.

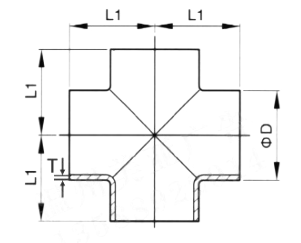

| Size | A | L1 | T | ||||
| DN10 | 12/13 | 26 | 1.5 | ||||
| DN15 | 18/19 | 35 | 1.5 | ||||
| DN20 | 22/23 | 40 | 1.5 | ||||
| DN25 | 28/29 | 50 | 1.5 | ||||
| DN32 | 34/35 | 55 | 1.5 | ||||
| DN40 | 40/41 | 60 | 1.5 | ||||
| DN50 | 52/53 | 70 | 1.5 | ||||
| DN65 | 70 | 80 | 2 | ||||
| DN80 | 85 | 90 | 2 | ||||
| DN100 | 104 | 100 | 2 | ||||
| DN125 | 129 | 187 | 2 | ||||
| DN150 | 154 | 225 | 2 | ||||
| DN200 | 204 | 300 | 2 | ||||
| DN250 | 254 | 216 | 2 | ||||
| DN300 | 306 | 254 | 3 |
