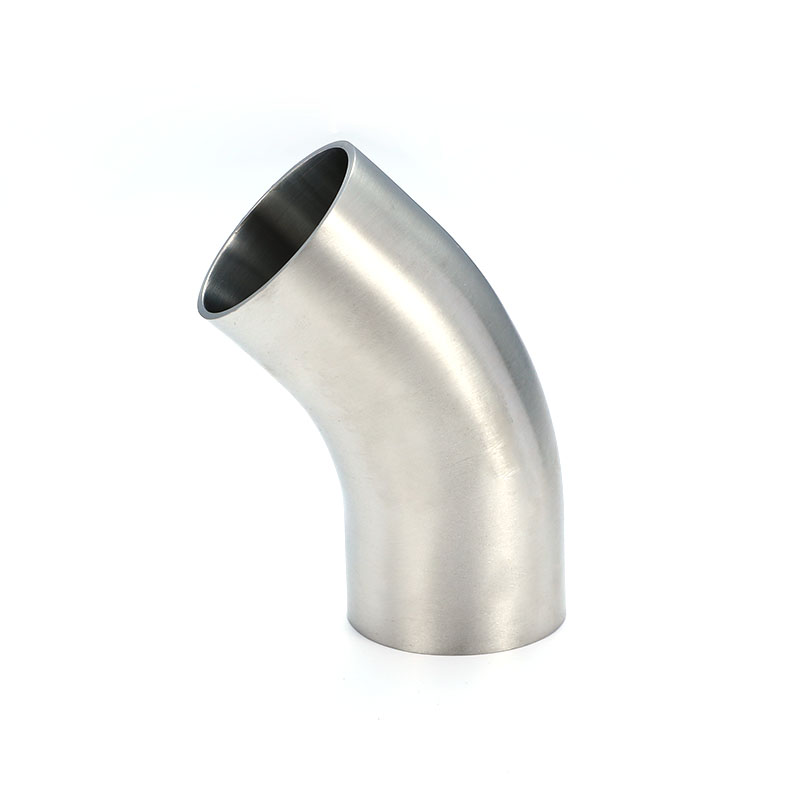

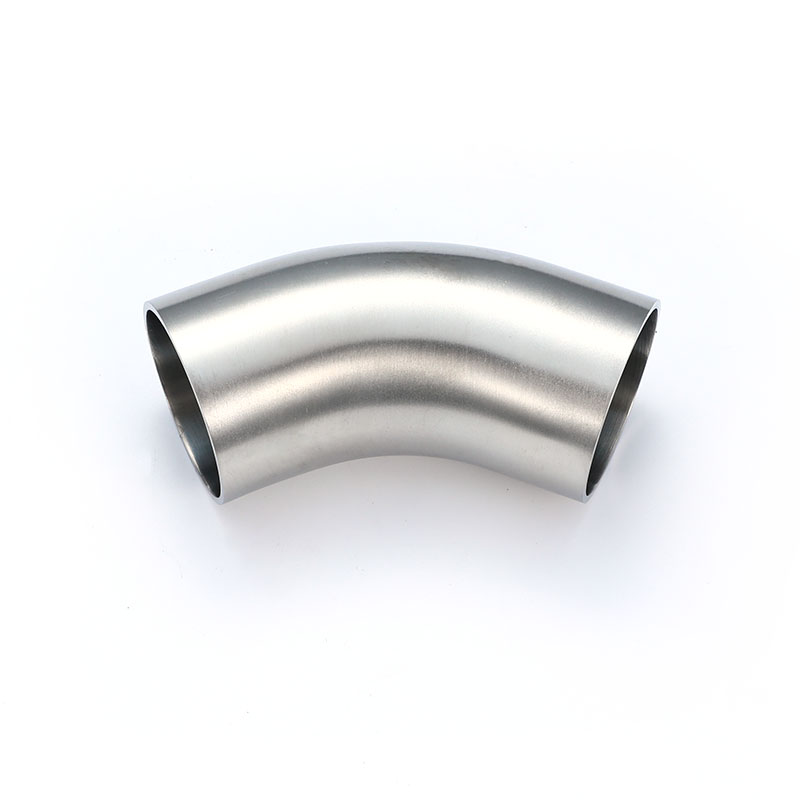

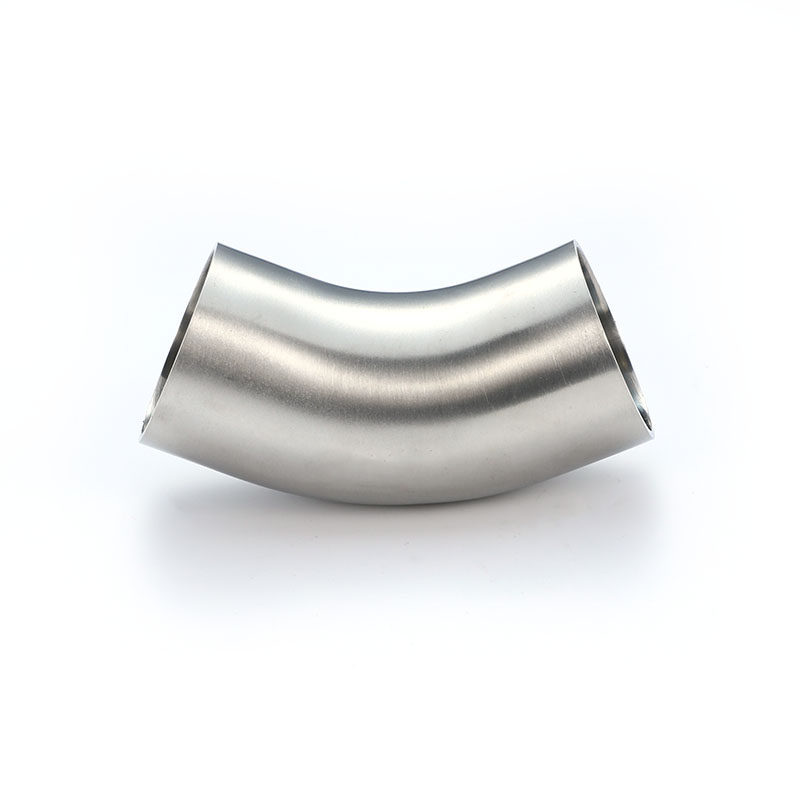

This long 45° elbow features a longer arc section, reducing fluid impact when changing direction, making it ideal for handling high flow rates or shear-sensitive media. The product strictly adheres to SMS pipe diameter dimensions, undergoes multiple polishing and pickling treatments, and is compatible with CIP/SIP cleaning systems. With its smoother fluid redirection capabilities, it is often used in food production lines for products such as creams, liquid mixtures, and other applications requiring stable flow rates.
| Size | A | R | L1 | T | |||
| 25 | 25.4 | 38.1 | 42.5 | 1.25/1.5 | |||
| 38 | 38.1 | 57.2 | 56.8 | 1.25/1.5 | |||
| 51 | 50.8 | 76.2 | 68.6 | 1.25/1.5 | |||
| 63 | 63.5 | 95.3 | 78.4 | 1.65/2 | |||
| 76 | 76.2 | 114.3 | 85.2 | 1.6/2 | |||
| 102 | 101.6 | 152.4 | 103 | 2 | |||
| 127 | 127 | 190.5 | 142.4 | 2 | |||
| 152.4 | 152.4 | 228.6 | 158.2 | 2 | |||
| 203.2 | 203.2 | 305 | 202.5 | 2 | |||
