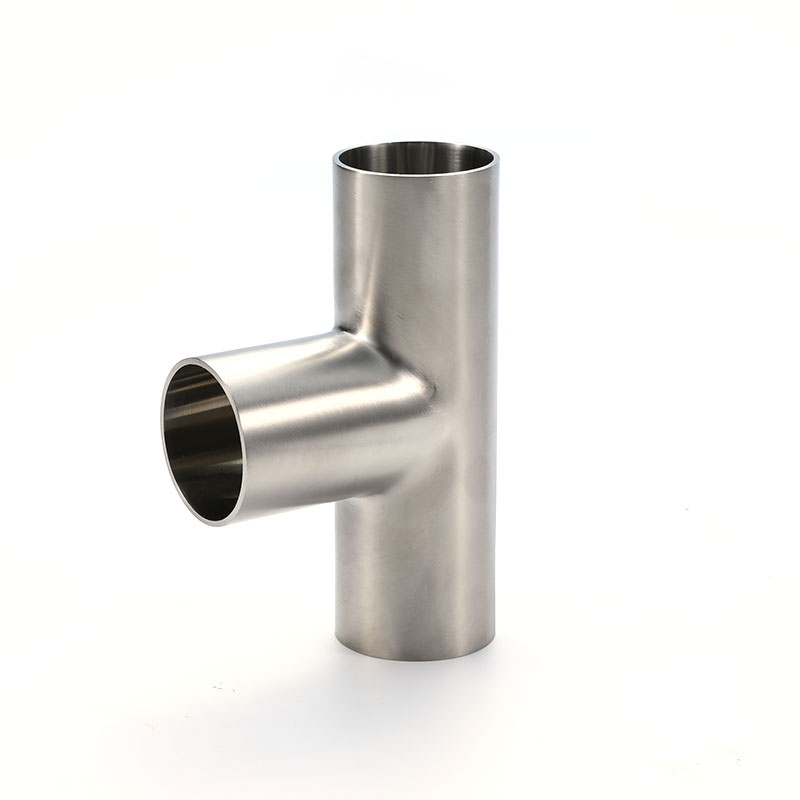

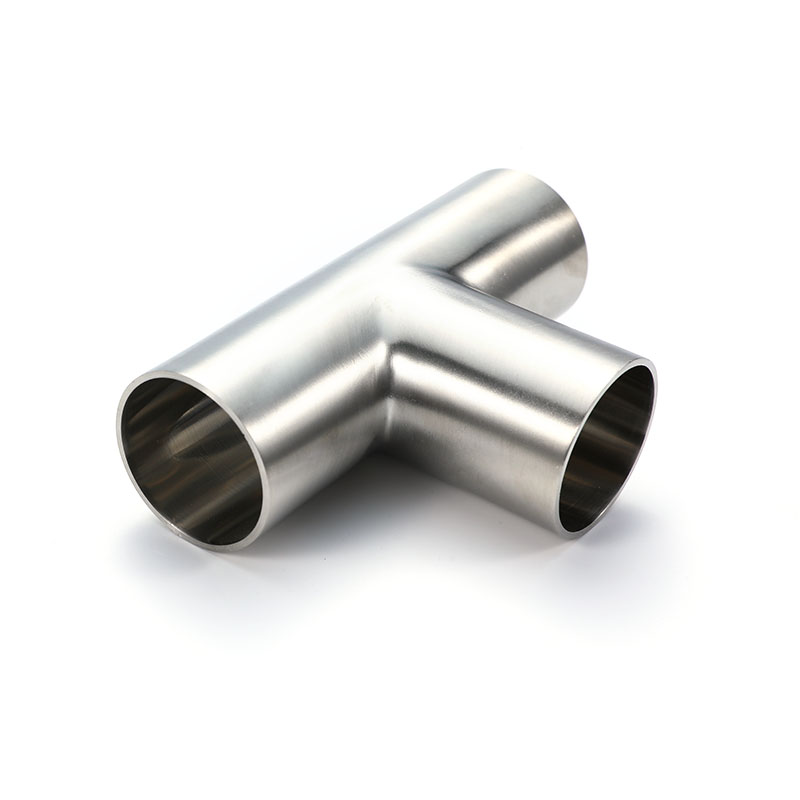

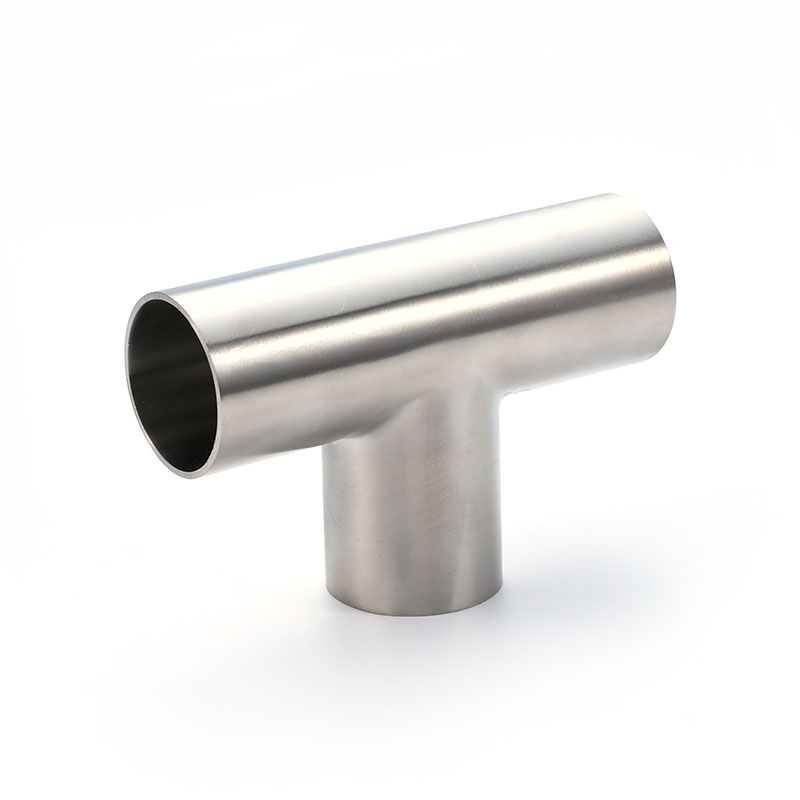

Standard welded tees are used for equal-diameter branch extensions in process piping and are widely used in the main pipelines of food and pharmaceutical factories. The product uses high-precision pipe forming to ensure three-way symmetry and welding stability. The inner wall is polished to a hygienic surface finish, ensuring no dead corners or material accumulation at the branch point, making it suitable for frequently cleaned conveying systems. A wide range of sizes is available to meet different flow rates and pipeline configurations.

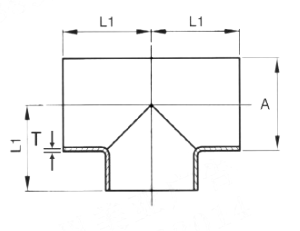

| Size | A | L1 | T | |
| DN10 | 12/13 | 26 | 1.5 | |
| DN15 | 18/19 | 35 | 1.5 | |
| DN20 | 22/23 | 40 | 1.5 | |
| DN25 | 28/29 | 50 | 1.5 | |
| DN32 | 34/35 | 55 | 1.5 | |
| DN40 | 40/41 | 60 | 1.5 | |
| DN50 | 52/53 | 70 | 1.5 | |
| DN65 | 70 | 80 | 2 | |
| DN80 | 85 | 90 | 2 | |
| DN100 | 104 | 100 | 2 | |
| DN125 | 129 | 187 | 2 | |
| DN150 | 154 | 225 | 2 | |
| DN200 | 204 | 300 | 2 | |
| DN250 | 254 | 216 | 2 | |
| DN300 | 306 | 254 | 3 | |
