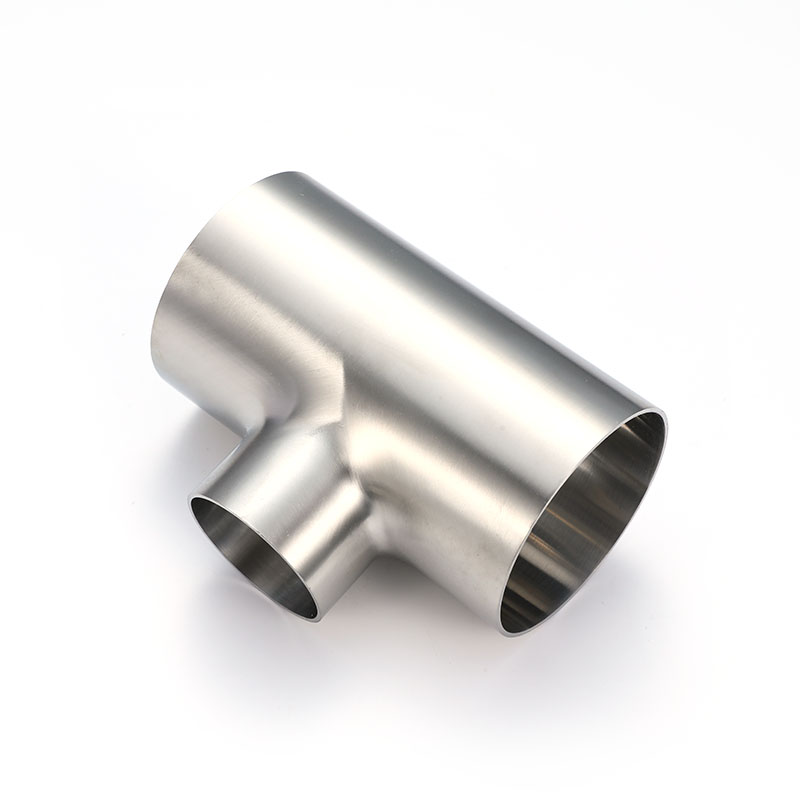

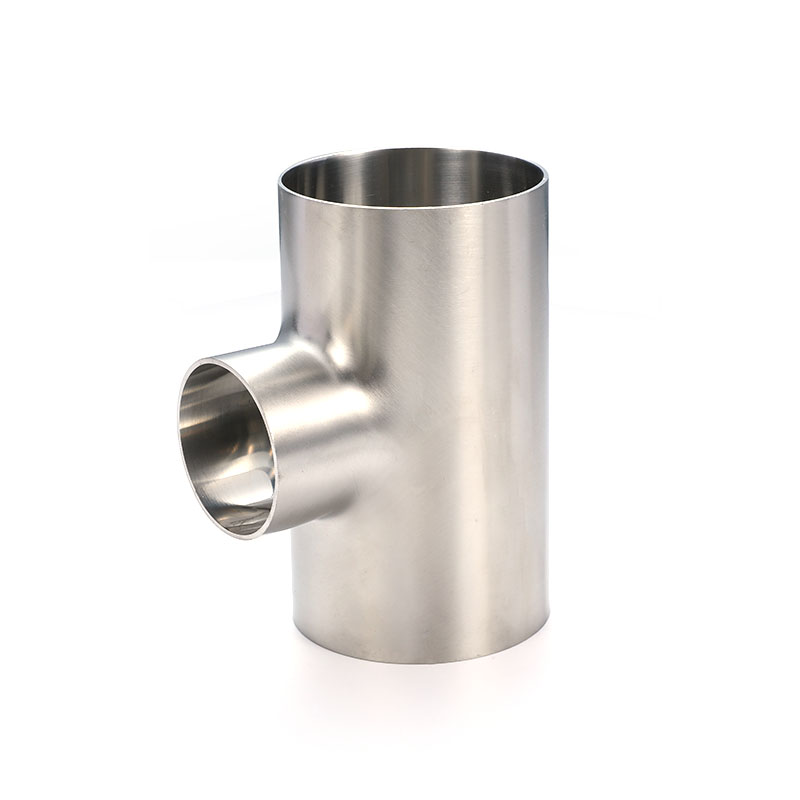

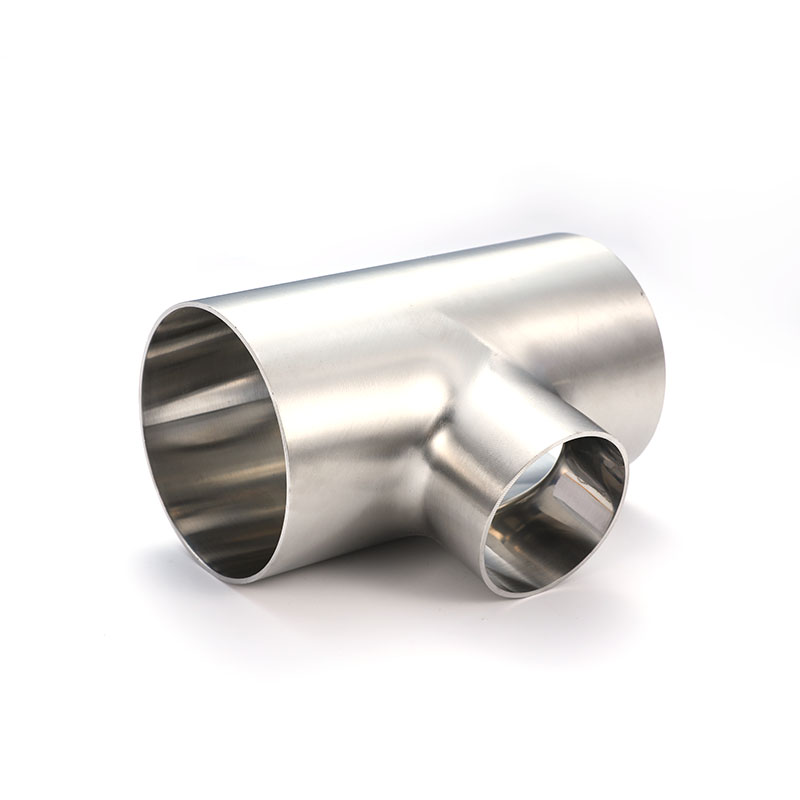

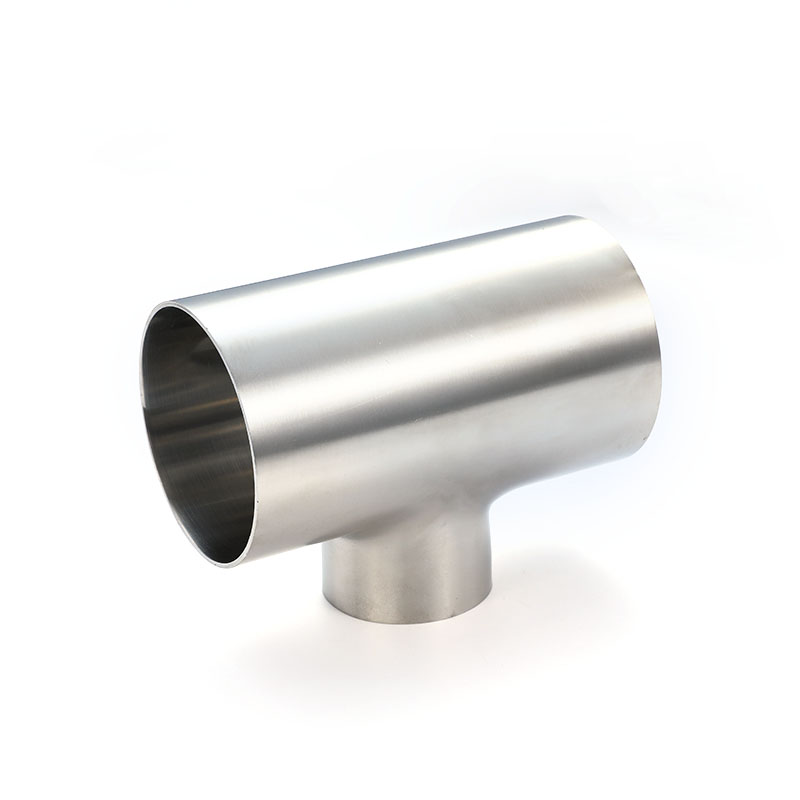

Short-body welded tees are ideal for branching and converging systems where space is at a premium. Their compact design minimises the installation footprint, making them suitable for use on equipment racks, inside cabinets, or at the junctions of multi-level piping systems. The interior of the tee features a smooth transition design, reducing the risk of fluid retention and contamination. The welded end connections are precision-sized to ensure full welding compatibility with DIN piping, making them the component of choice for branching in small-scale production equipment and systems with tight layouts.
| Size | A | L1 | L2 | T | |
| DN10 | 12/13 | 26 | 7.5 | 1.5 | |
| DN15 | 18/19 | 35 | 10.5 | 1.5 | |
| DN20 | 22/23 | 40 | 12.5 | 1.5 | |
| DN25 | 28/29 | 50 | 16 | 1.5 | |
| DN32 | 34/35 | 55 | 19.5 | 1.5 | |
| DN40 | 40/41 | 60 | 22.5 | 1.5 | |
| DN50 | 52/53 | 70 | 30 | 1.5 | |
| DN65 | 70 | 80 | 39.5 | 2 | |
| DN80 | 85 | 90 | 47.5 | 2 | |
| DN100 | 104 | 100 | 58 | 2 | |
| DN100 | 101.6 | 150 | 56 | 2 | |
| DN125 | 129 | 187 | 70.5 | 2 | |
| DN150 | 154 | 225 | 83 | 2 | |
| DN200 | 204 | 300 | 115 | 2 | |
| DN250 | 254 | 216 | 140 | 2 | |
| DN300 | 306 | 254 | 165 | 3 | |
