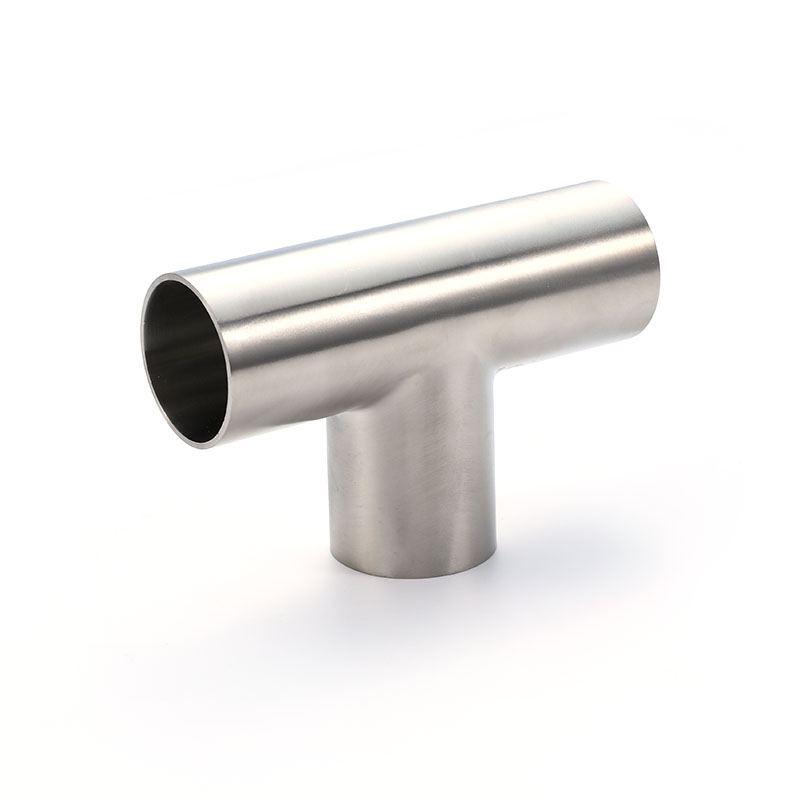

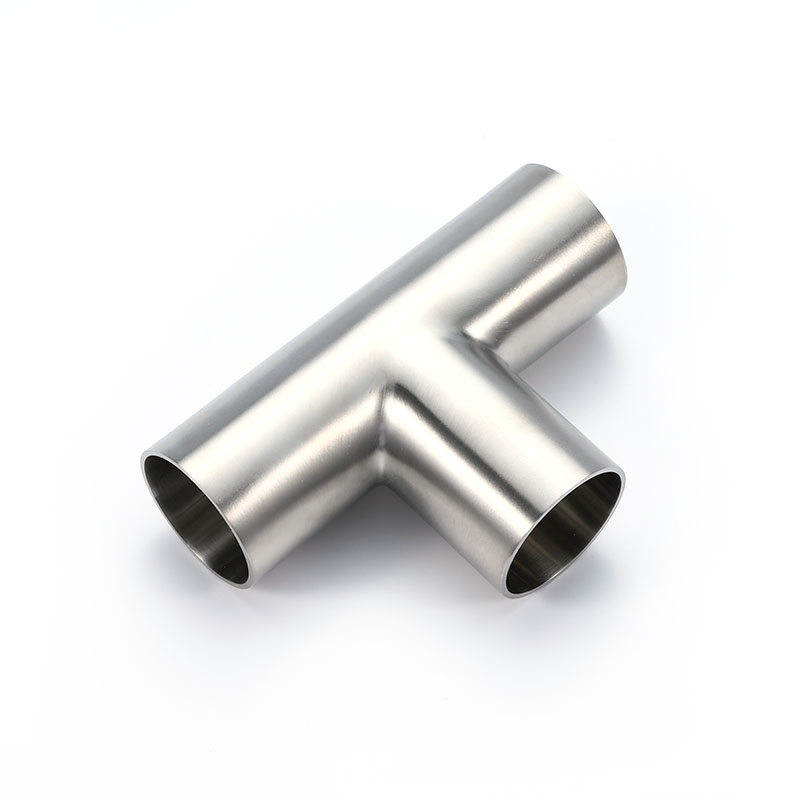

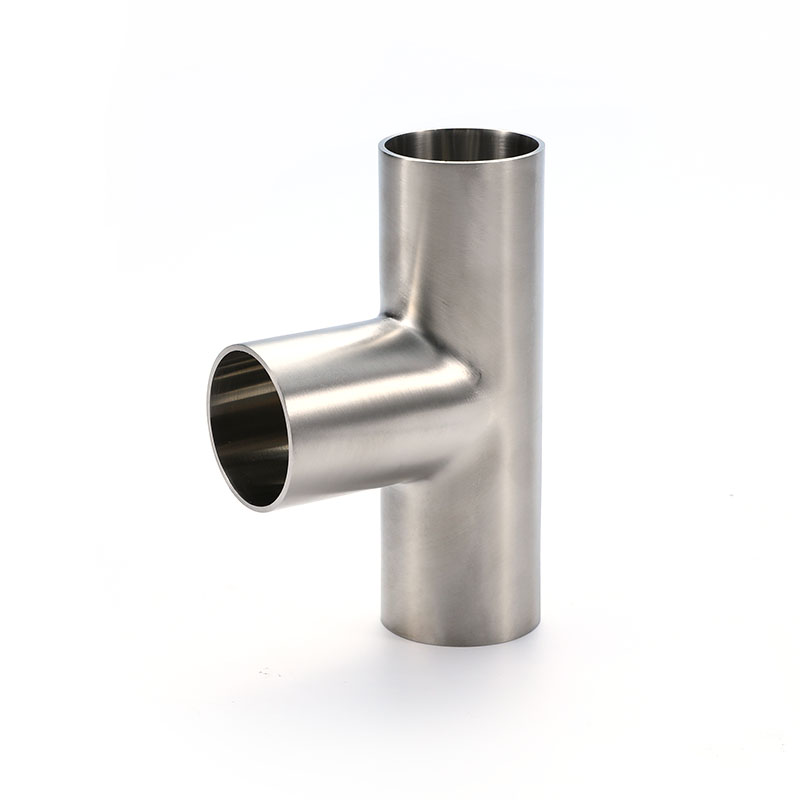

This welded tee fitting features a strictly symmetrical structure and high-purity polishing, ensuring uniform fluid distribution between the main and branch pipes. We have implemented precise transition treatment in the inner corner areas to reduce turbulence and residue, making it suitable for use in liquid dispensing tanks, clean steam distribution, and injection water diversion systems. The welded ends are fully compatible with BPE standards, facilitating automated welding operations.
| Size | A | L1 | T | ||||
| 1/2" | 12.7 | 47.6 | 1.6 | ||||
| 3/4" | 19.05 | 50.8 | 1.6 | ||||
| 1" | 25.4 | 54 | 1.6 | ||||
| 1 1/2" | 38.1 | 60.3 | 1.6 | ||||
| 2" | 50.8 | 73 | 1.6 | ||||
| 2 1/2" | 63.5 | 79.4 | 1.6 | ||||
| 3" | 76.2 | 85.7 | 1.6 | ||||
| 4" | 101.6 | 104.8 | 2.1 |
| Size | A | L1 | L2 | T | |||
| 1/2" | 12.7 | 47.6 | 22.2 | 1.6 | |||
| 3/4" | 19.05 | 50.8 | 19.05 | 1.6 | |||
| 1" | 25.4 | 54 | 25.4 | 1.6 | |||
| 1 1/2" | 38.1 | 60.3 | 38.1 | 1.6 | |||
| 2" | 50.8 | 73 | 50.8 | 1.6 | |||
| 2 1/2" | 63.5 | 79.4 | 63.5 | 1.6 | |||
| 3" | 76.2 | 85.7 | 76.2 | 1.6 | |||
| 4" | 101.6 | 104.8 | 101.6 | 2.1 | |||
