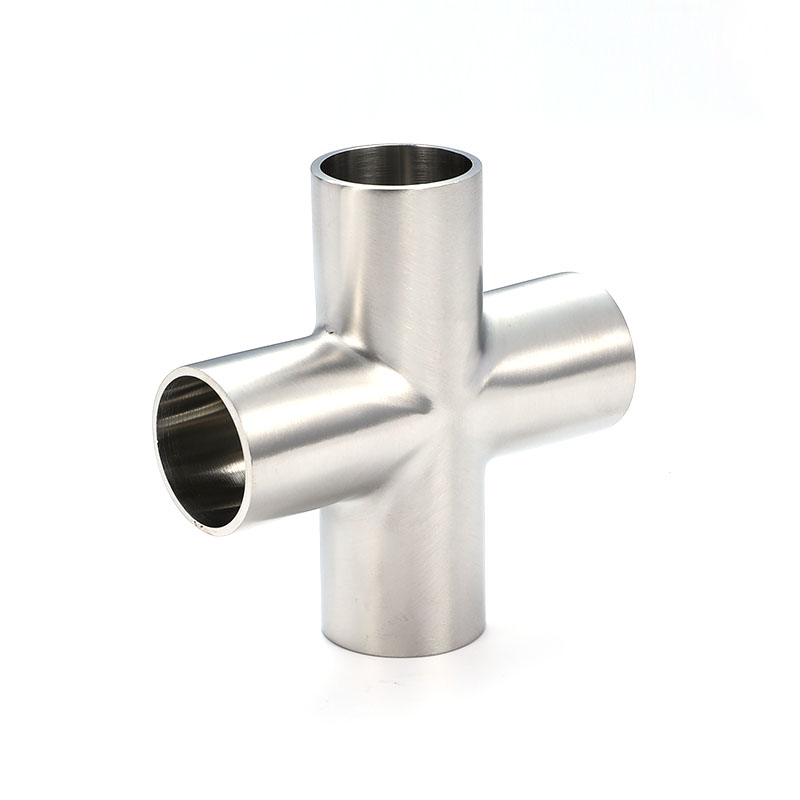

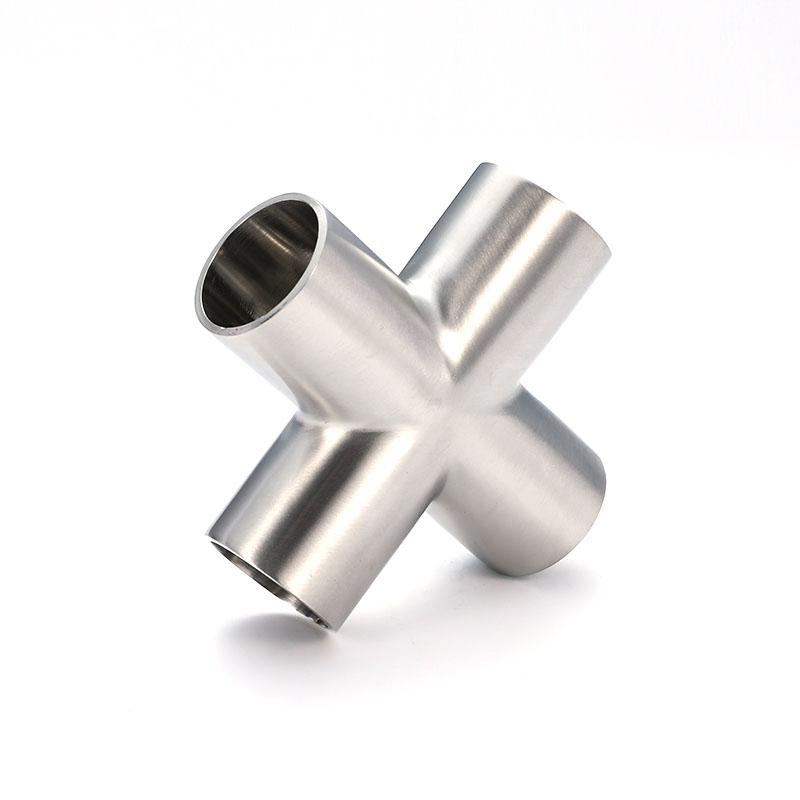

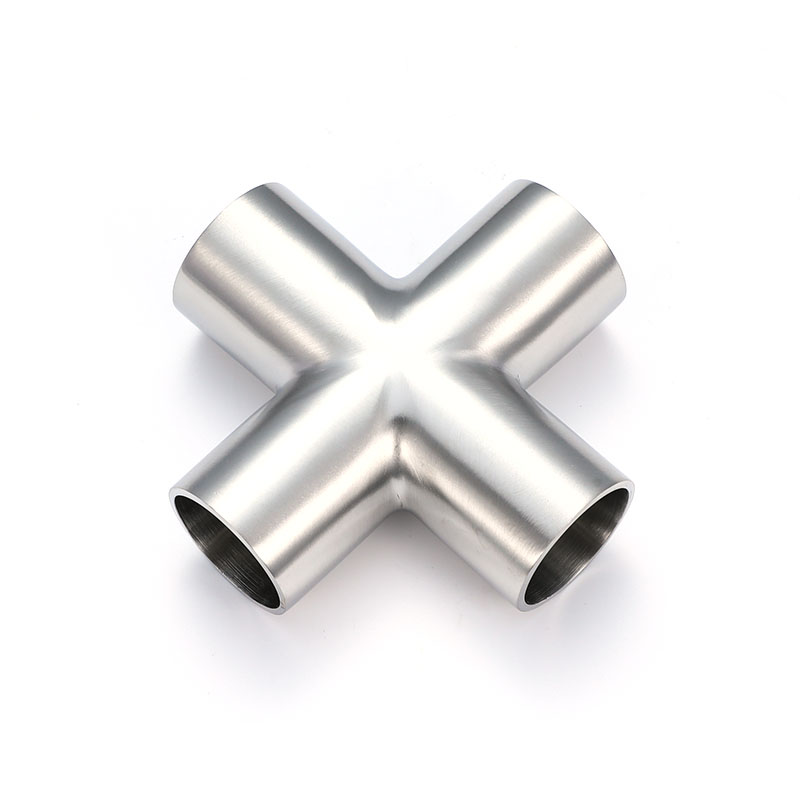

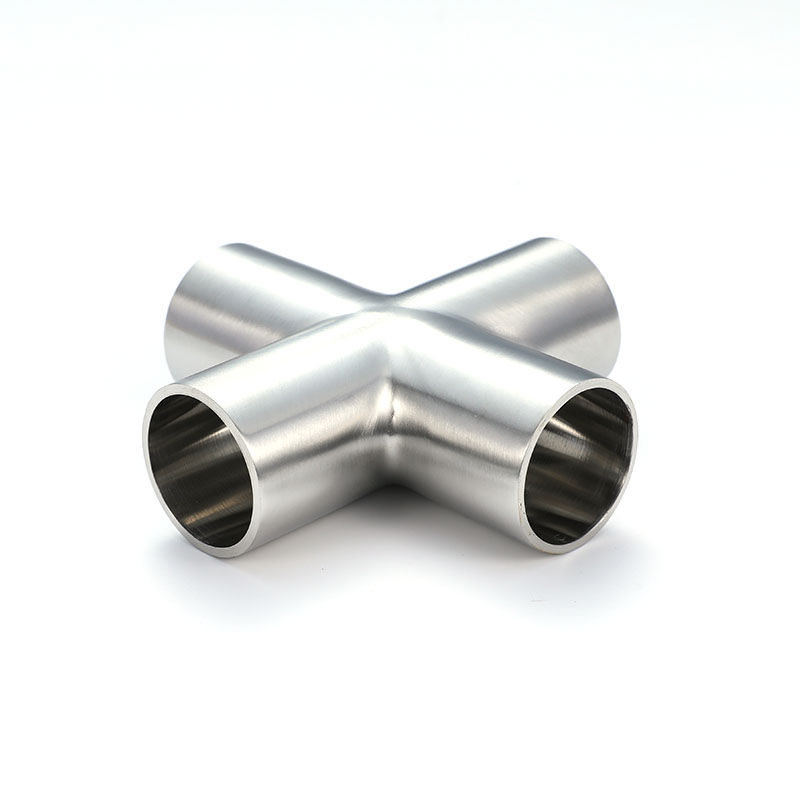

The short-type four-way connector provides a compact four-way connection solution for complex process networks. Its short block structure is particularly suitable for multi-branch piping in equipment-dense areas. All four channels feature sanitary-grade polishing, ensuring consistent fluid distribution. Widely used in applications such as multi-line filling and mixing, it helps improve piping layout flexibility and reduce the number of welding points.
| Size | A | L1 | L2 | |||||
| 1/2" | 25.4 | 28.6 | 1.65 | |||||
| 1 1/4" | 31.8 | 38 | 1.65 | |||||
| 1 1/2" | 38.1 | 42.1 | 1.65 | |||||
| 2" | 50.8 | 52.4 | 1.65 | |||||
| 2 1/2" | 63.5 | 54.5 | 1.65 | |||||
| 3" | 76.2 | 65.9 | 1.65 | |||||
| 4" | 101.6 | 87.3 | 2.11 | |||||
