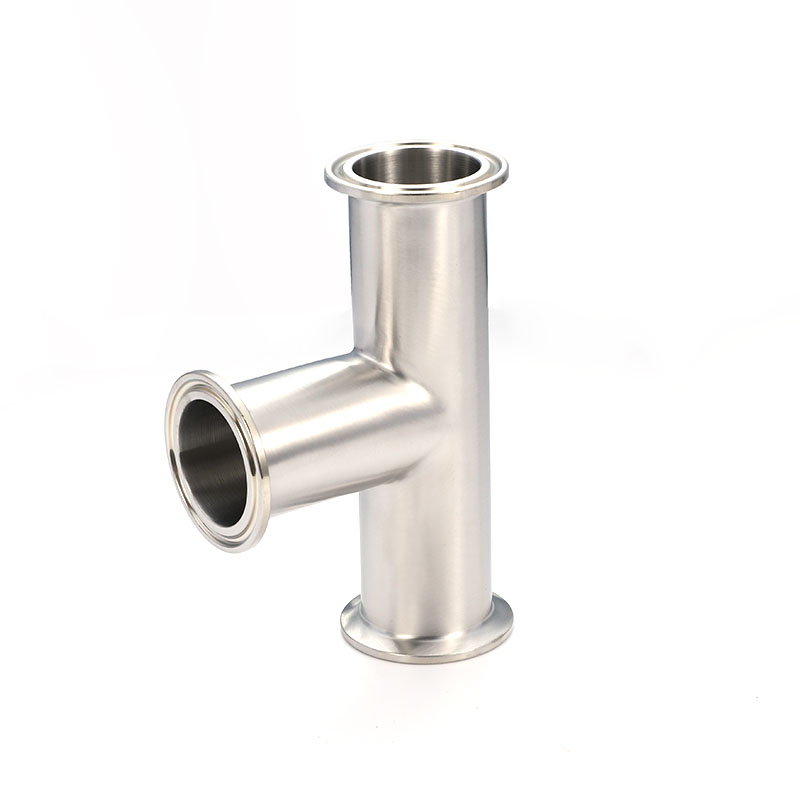

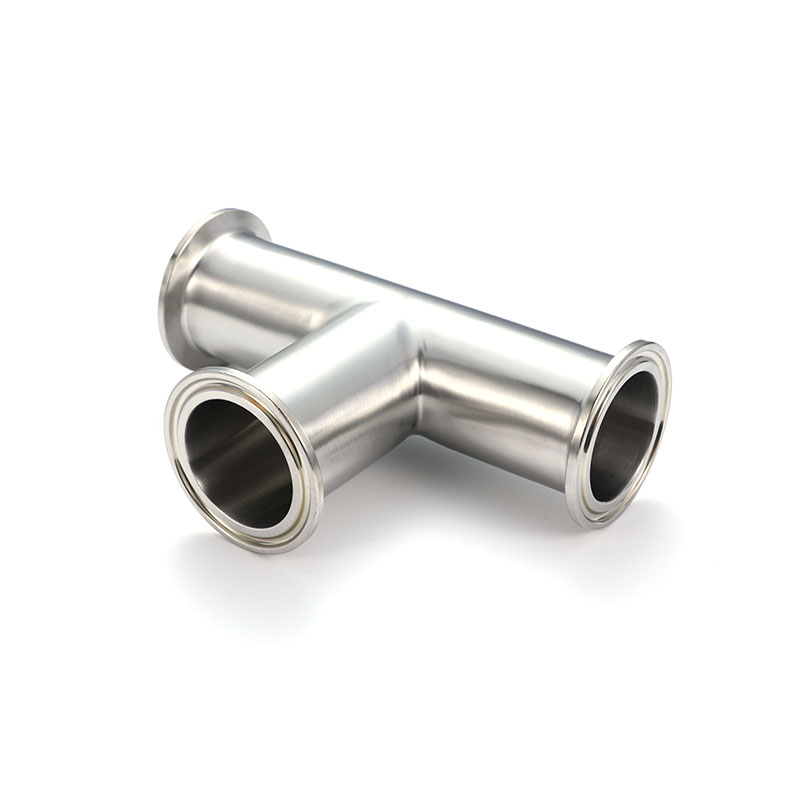

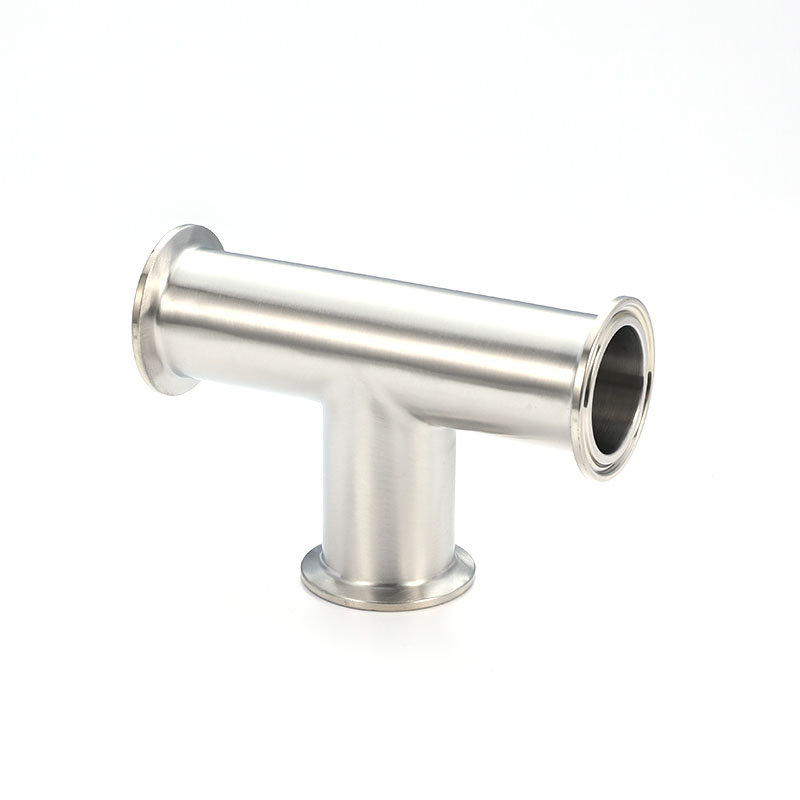

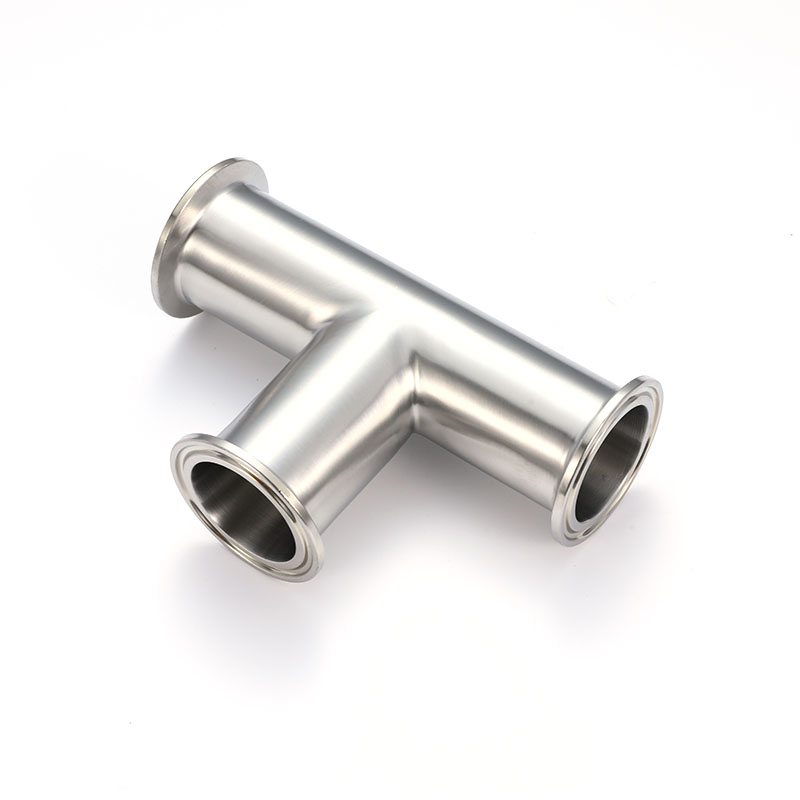

The clamp-type tee is designed based on the ISO/IDF universal dimension system, allowing for quick connection with quick-release components from different countries. Its structure is particularly suitable for food factories with multiple recipes and frequent batch changes, as assembly and disassembly can be completed in minutes. The three-way internal channels are mirror-polished, facilitating CIP cleaning and reducing residue. It is suitable for beverage blending equipment, pilot process lines, and export-oriented sanitary systems, and is a key component for flexible flow control.
| Size | A | L1 | T | |||||
| 1" | 25.4 | 55 | 50.5 | |||||
| 1 1/4" | 31.8 | 59.5 | 50.5 | |||||
| 1 1/2" | 38.1 | 70 | 50.5 | |||||
| 2" | 50.8 | 82 | 64 | |||||
| 2 1/2" | 63.5 | 104.5 | 77.52 | |||||
| 3" | 76.2 | 109.5 | 91 | |||||
| 3 1/2" | 89 | 124.5 | 106 | |||||
| 4" | 101.6 | 148.5 | 119 | |||||
