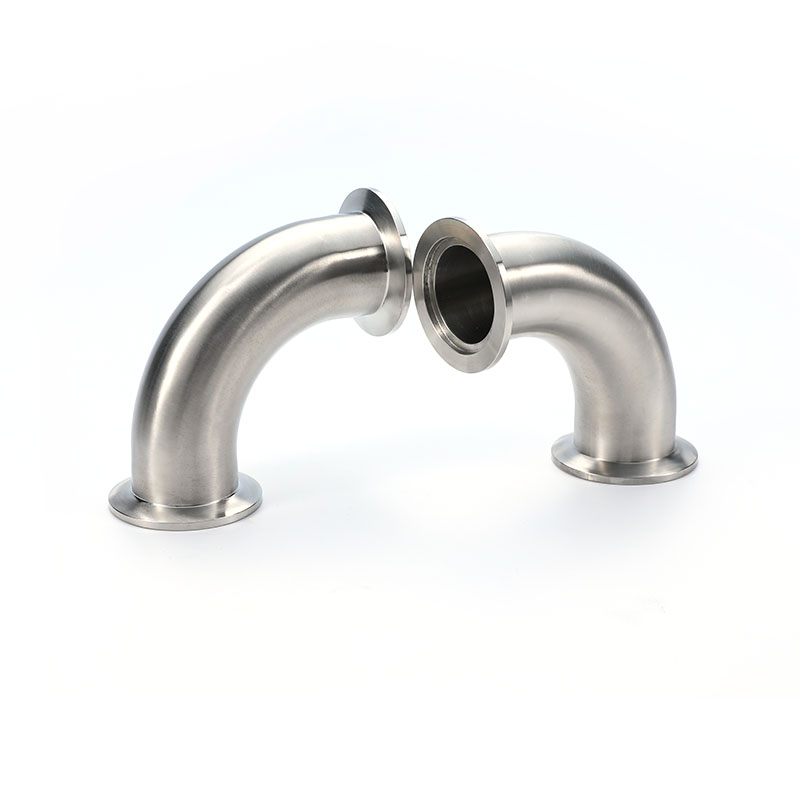

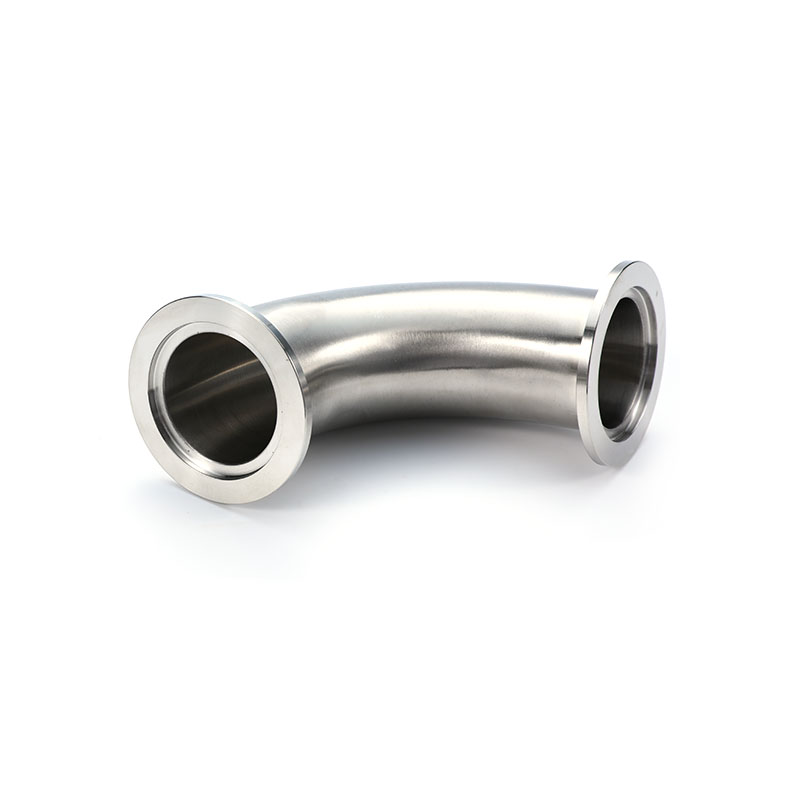

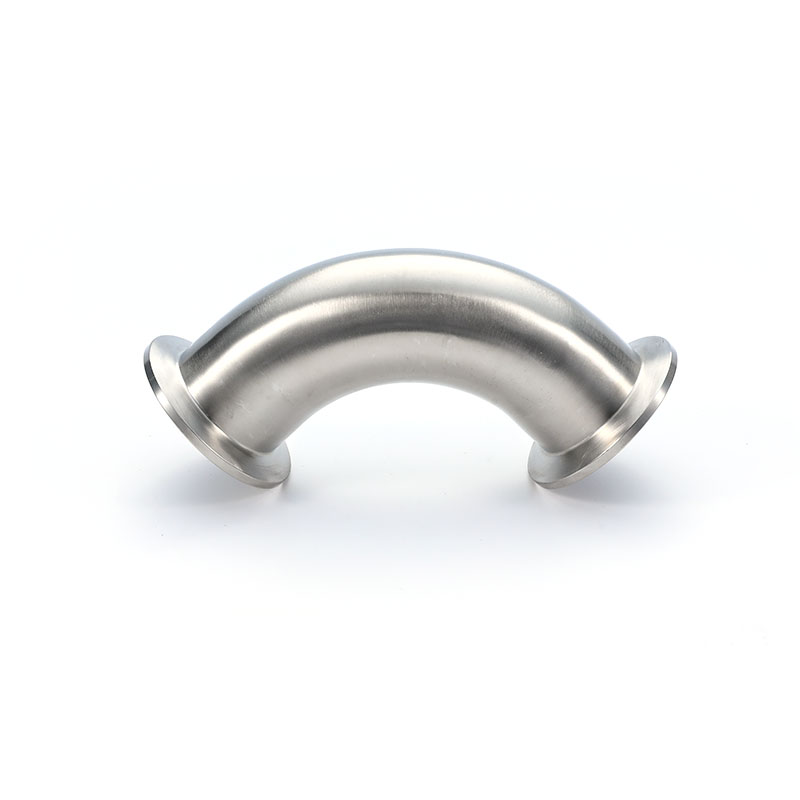

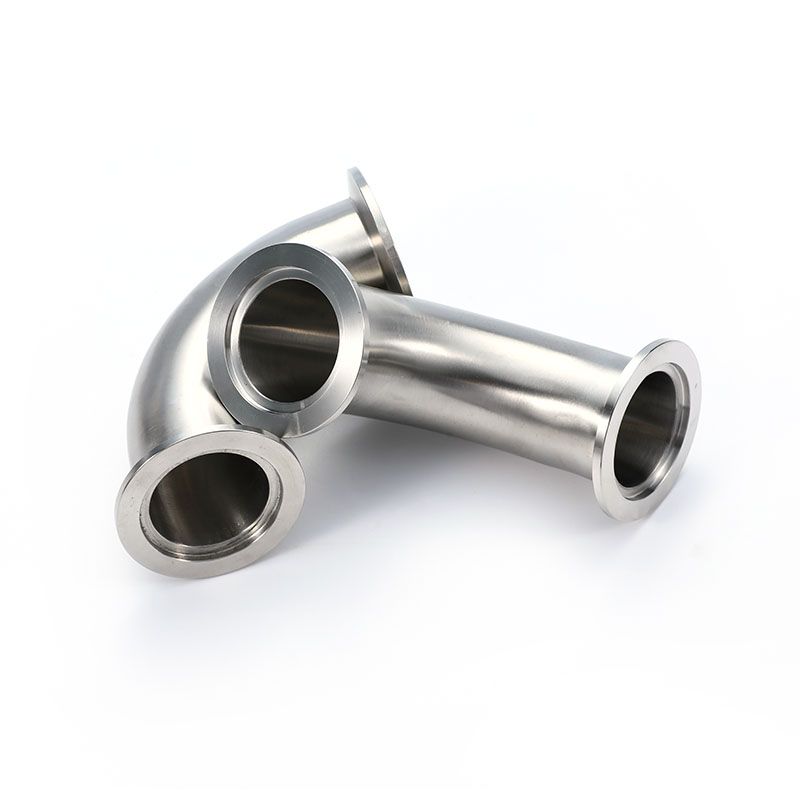

Clamp-type elbows are designed for quick assembly and disassembly. We utilize a high-precision groove forming process to ensure a stable seal after the clamp is tightened. They are suitable for applications requiring frequent maintenance or replacement of process line components, such as mixing rooms, filling lines, and mobile piping systems. The inner wall of the elbow is mirror-polished, reducing media retention and supporting in-line inspection. It is fully compatible with British standard clamp interfaces, resulting in extremely high assembly efficiency.
| Size | A | R | L1 | K1 | T | ||||||
| 1" | 25.4 | 38.1 | 65 | 50.5 | 1.65 | ||||||
| 1 1/2" | 38.1 | 57.2 | 85 | 50.5 | 1.65 | ||||||
| 2" | 50.8 | 76.2 | 110 | 64 | 1.65 | ||||||
| 2 1/2" | 63.5 | 95.3 | 135 | 77.5 | 1.65 | ||||||
| 3" | 76.2 | 114.3 | 155 | 91 | 1.65 | ||||||
| 4" | 101.6 | 152.4 | 195 | 119 | 2.11 | ||||||
