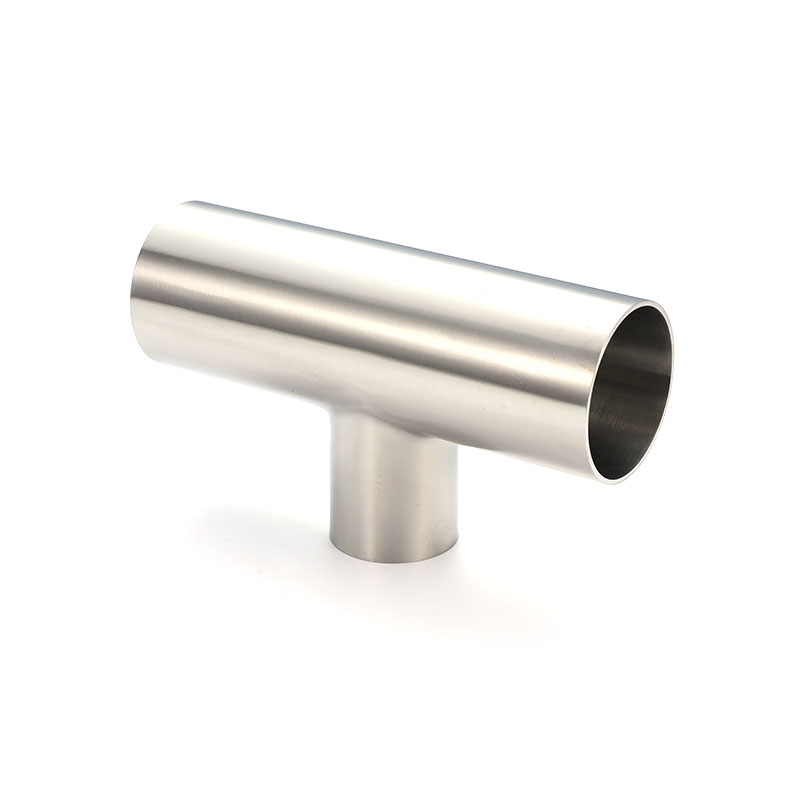

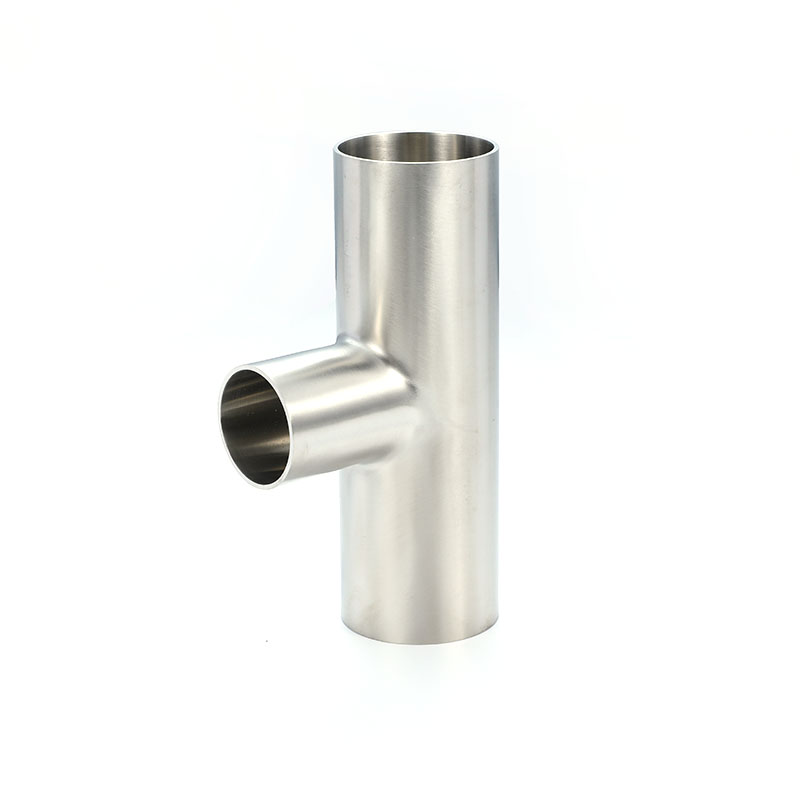

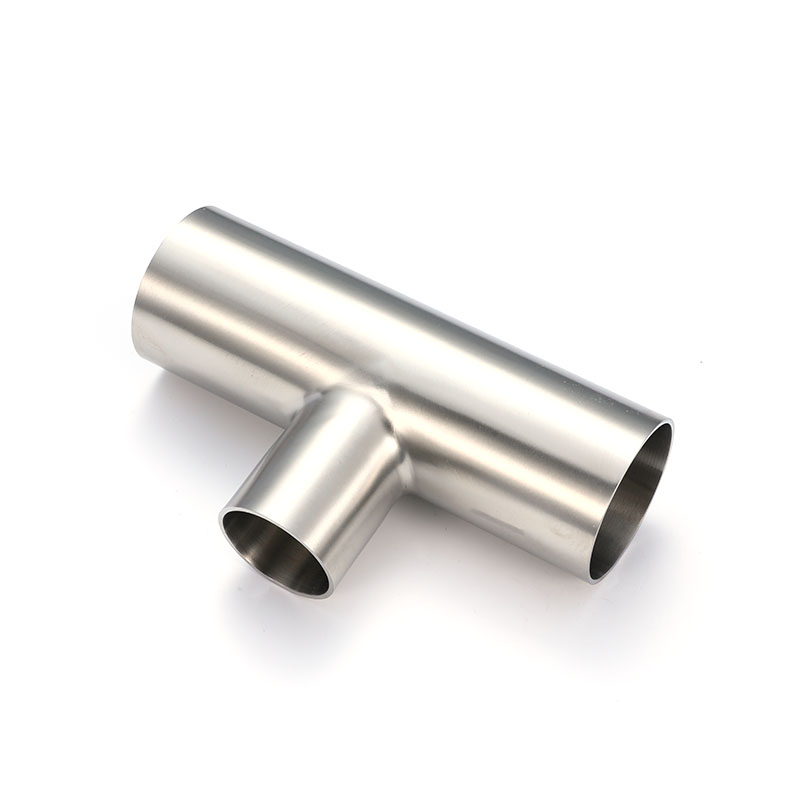

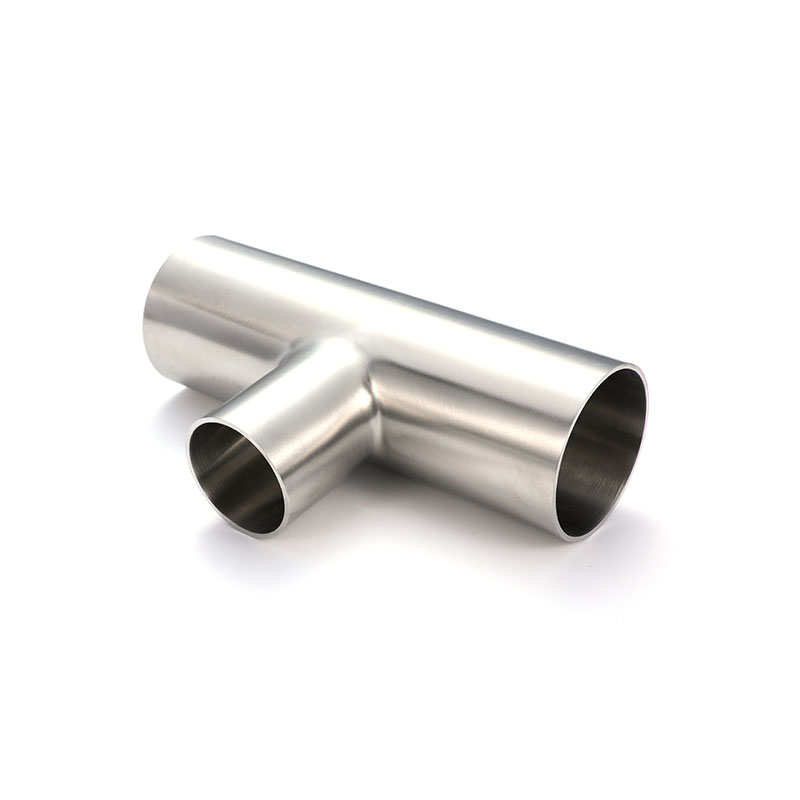

We designed this long-bodied tee fitting for customers with higher requirements for fluid velocity and flow distribution uniformity. The extended main pipe structure reduces the impact of flow velocity, resulting in more stable three-way flow distribution, making it particularly suitable for processes sensitive to flow distribution, such as dairy processing and liquid mixing. The extended section also improves on-site welding operability and facilitates easier installation in large pipe racks.
| Size | A | L1 | T | |||||||
| 1/2" | 12.7 | 49.1 | 1.6 | |||||||
| 3/4" | 19.1 | 58.6 | 1.6 | |||||||
| 1" | 25.4 | 68.1 | 1.6 | |||||||
| 1 1/4" | 31.8 | 77.7 | 1.6 | |||||||
| 1 1/2" | 38.1 | 87 | 1.6 | |||||||
| 2" | 50.8 | 106.2 | 1.6 | |||||||
| 2 1/2" | 63.5 | 125 | 1.6 | |||||||
| 3" | 76.2 | 144.2 | 1.6 | |||||||
| 4" | 101.6 | 182.4 | 2 | |||||||
