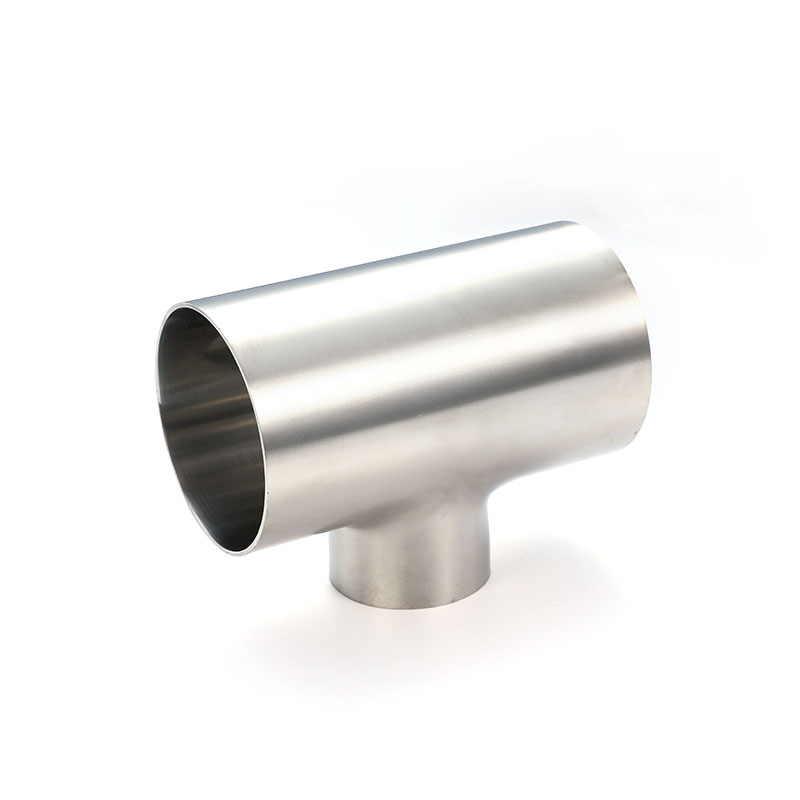

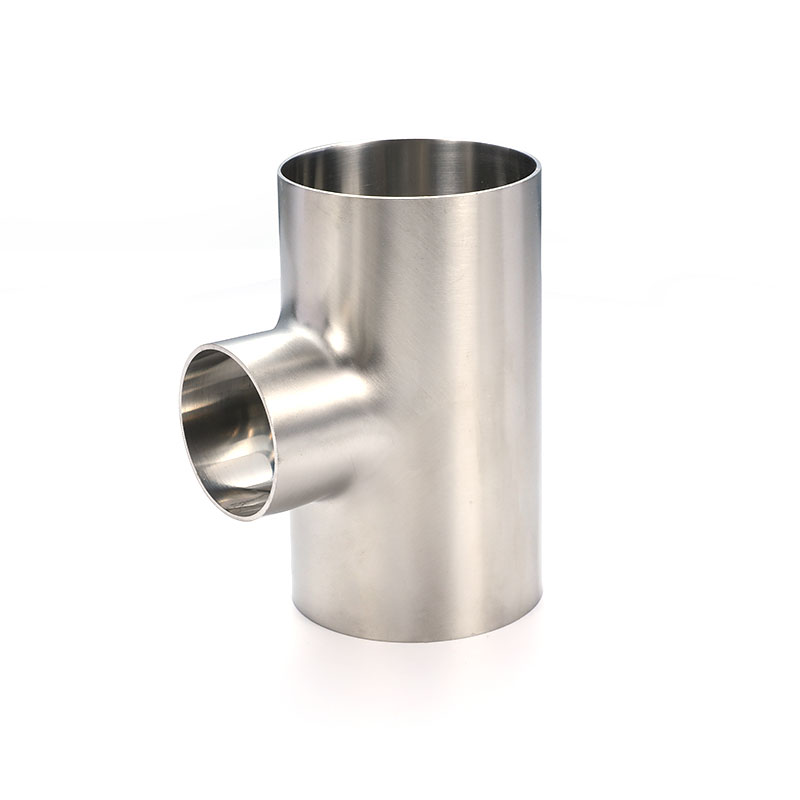

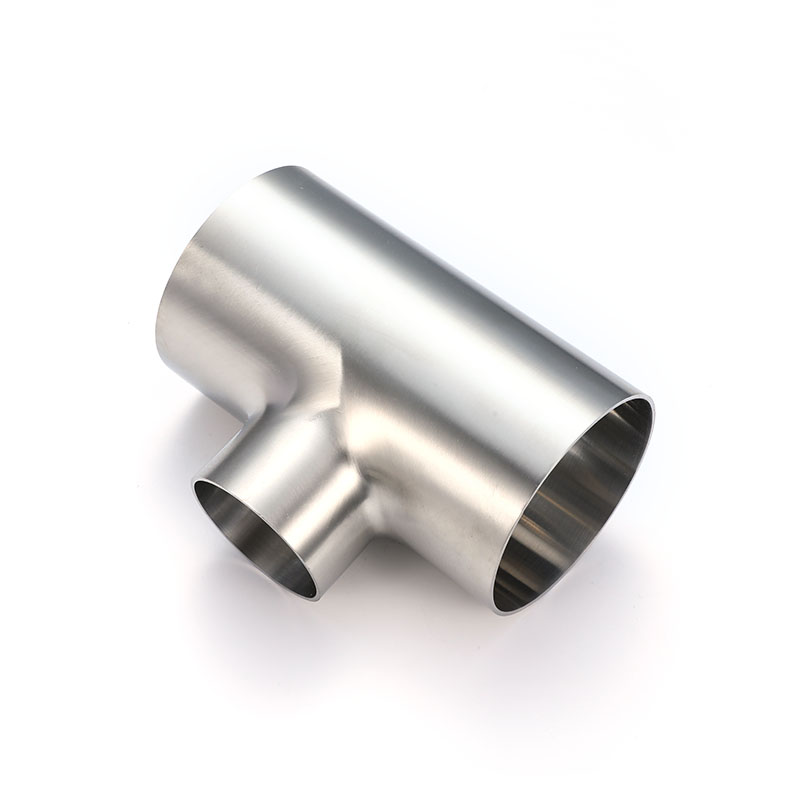

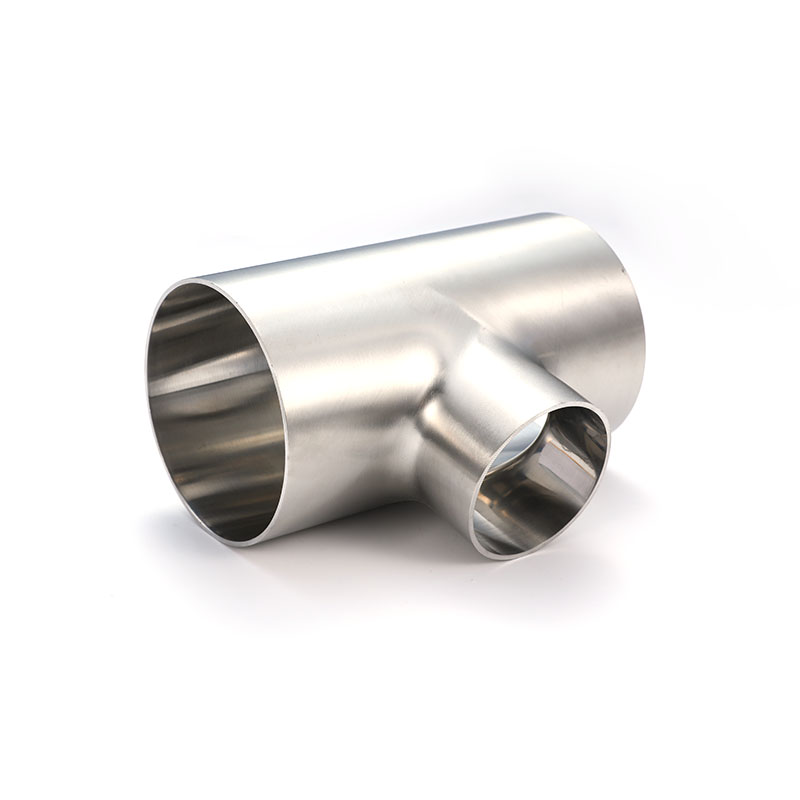

Short-type welded tees are suitable for process diversion scenarios with limited space. Their short-section structure reduces the occupied area, allowing them to be embedded in narrow gaps between equipment. The three-way transition features a smooth R-angle design, reducing dead zones and the risk of residue buildup. Conforming to 3A standard dimensions, they enable stable diversion or confluence in process pipelines for dairy, beverage, and condiment applications.
| Size | A | L1 | T | ||
| 1/2" | 12.7 | 19 | 1.65 | ||
| 3/4" | 19 | 28.6 | 1.65 | ||
| 1" | 25.4 | 28.6 | 1.65 | ||
| 1 1/4" | 31.8 | 35 | 1.65 | ||
| 1 1/2" | 38.1 | 42 | 1.65 | ||
| 2" | 50.8 | 52.3 | 1.65 | ||
| 2 1/2" | 63.5 | 59.5 | 1.65 | ||
| 3" | 76.2 | 65.9 | 1.65 | ||
| 4" | 101.6 | 87.3 | 2.11 | ||
| 6" | 152.4 | 127 | 2.8 | ||
| 8" | 203.2 | 178 | 2.8 | ||
| 10" | 254 | 216 | 2.8 | ||
| Size | A | L1 | T | |||||
| 1/2" | 12.7 | 76.2 | 1.65 | |||||
| 3/4" | 19 | 47.6 | 1.65 | |||||
| 1" | 25.4 | 47.6 | 1.65 | |||||
| 1 1/4" | 31.8 | 55 | 1.65 | |||||
| 1 1/2" | 38.1 | 57.2 | 1.65 | |||||
| 2" | 50.8 | 76.2 | 1.65 | |||||
| 2 1/2" | 63.5 | 76.2 | 1.65 | |||||
| 3" | 76.2 | 82.6 | 1.65 | |||||
| 4" | 101.6 | 98.4 | 2.11 | |||||
| 6" | 152.4 | 127 | 2.77 | |||||
