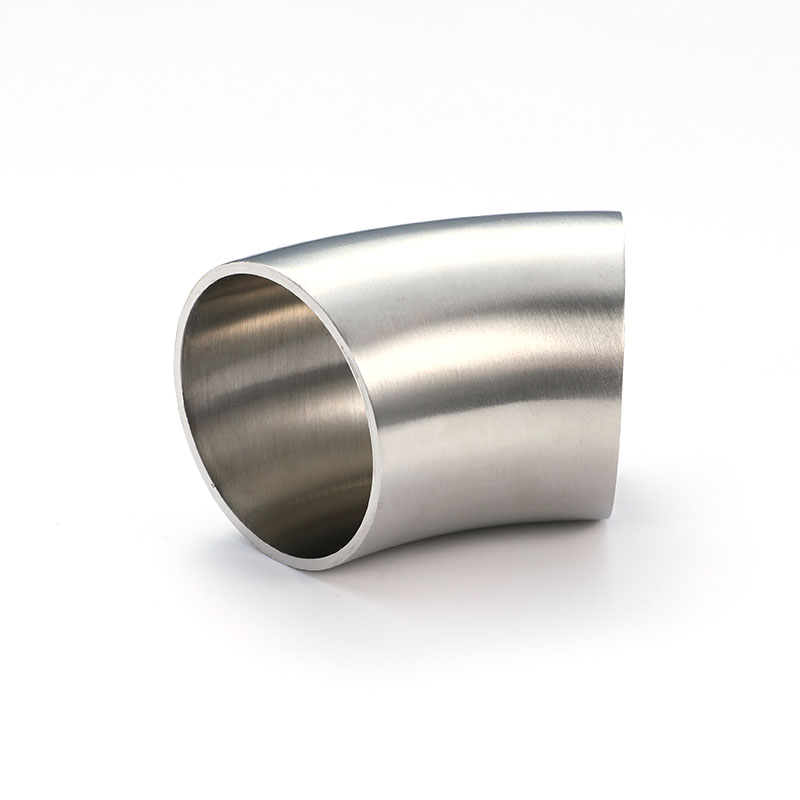

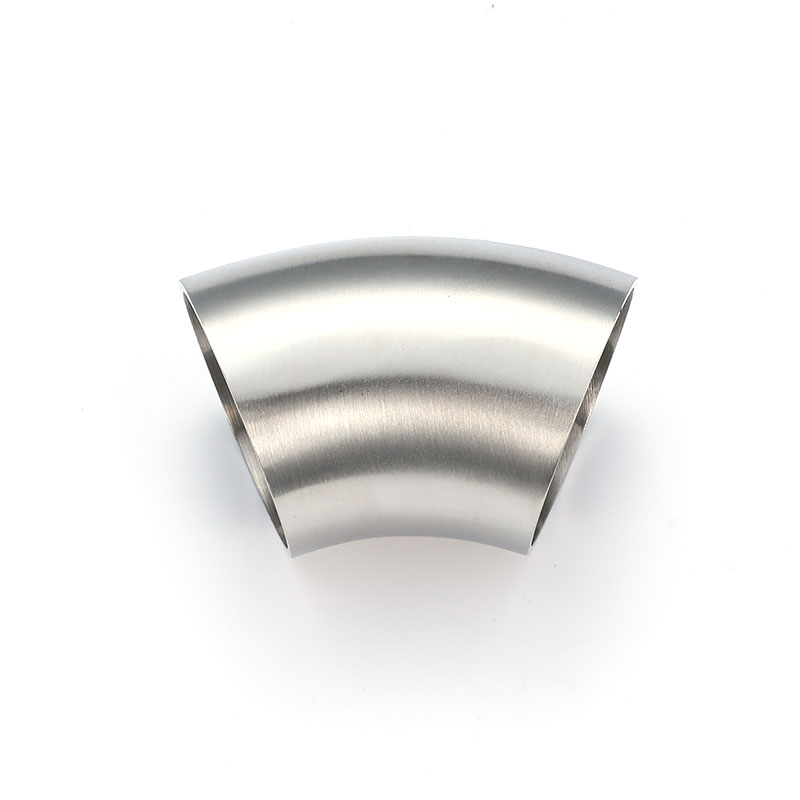

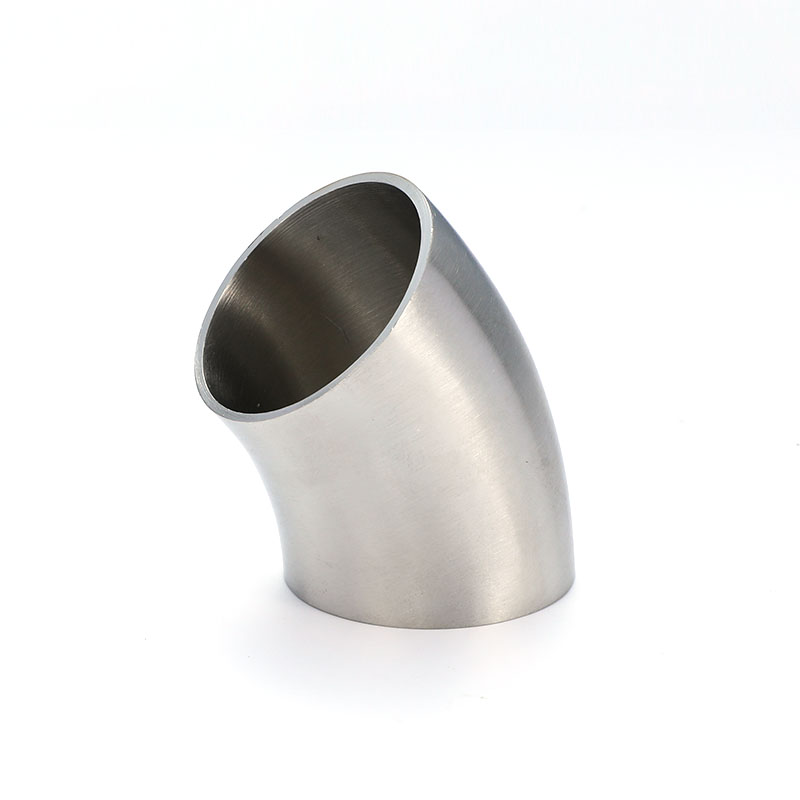

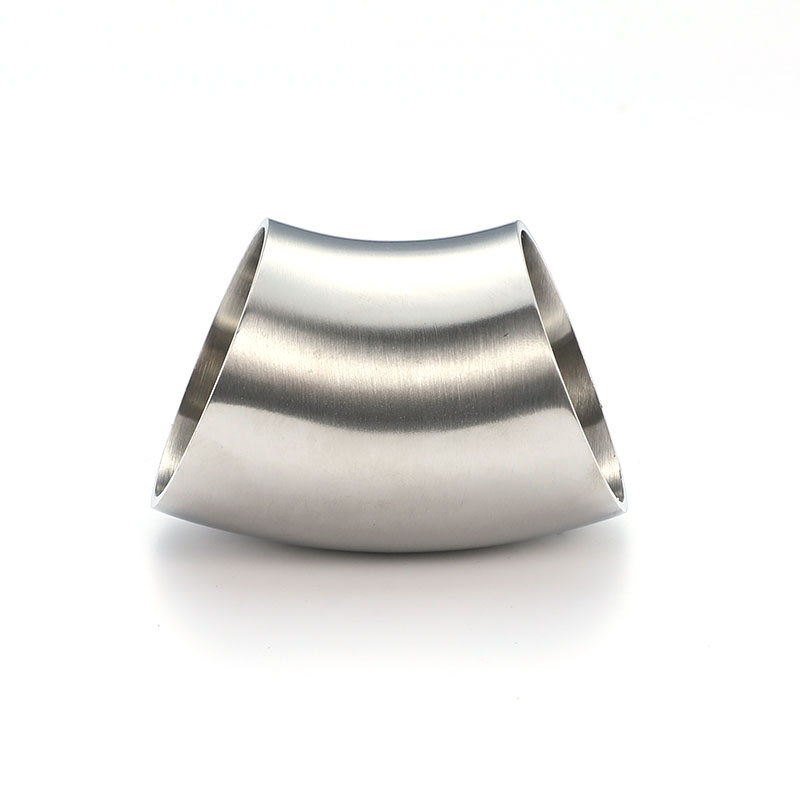

This 45° welded elbow is manufactured according to ISO/IDF international dairy standards and is suitable for medium-angle turning requirements in global food processing equipment. The curved section is precisely formed using CNC technology, maintaining uniform wall thickness and a smooth inner surface, which helps reduce turbulence caused by fluid direction changes. The welded ends are precisely matched to common pipe diameters used worldwide, facilitating standardized configuration for export equipment. Utilizing sanitary polishing processes, it meets the cleanliness requirements of dairy, beverage, and light pharmaceutical processes, and is a commonly used directional change component in the international market.
| Size | A | R | L1 | T | ||
| 1" | 25.4 | 33.5 | 13.9 | 1.2/1.5 | ||
| 1 1/4" | 32 | 38 | 15.7 | 1.2/1.5 | ||
| 1 1/2" | 38.1 | 48.5 | 20.1 | 1.2/1.5 | ||
| 2" | 50.8 | 60.5 | 25.1 | 1.2/1.5 | ||
| 2 1/2" | 63.5 | 83.5 | 34.6 | 2 | ||
| 3" | 76.2 | 88.5 | 36.7 | 2 | ||
| 3 1/2" | 89 | 103.5 | 42.9 | 2 | ||
| 4" | 101.6 | 127 | 52.1 | 2 | ||
