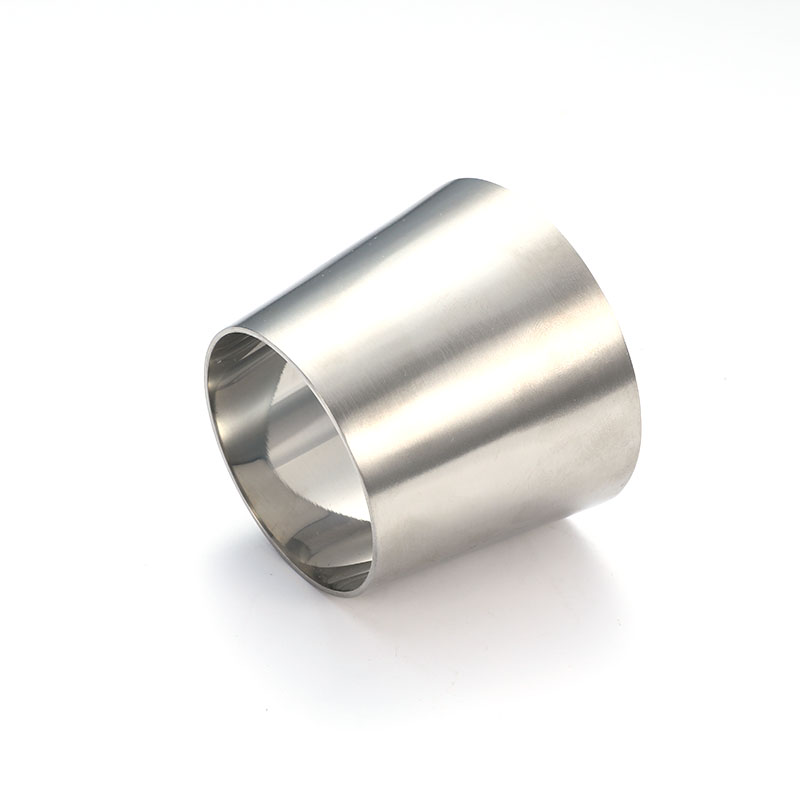

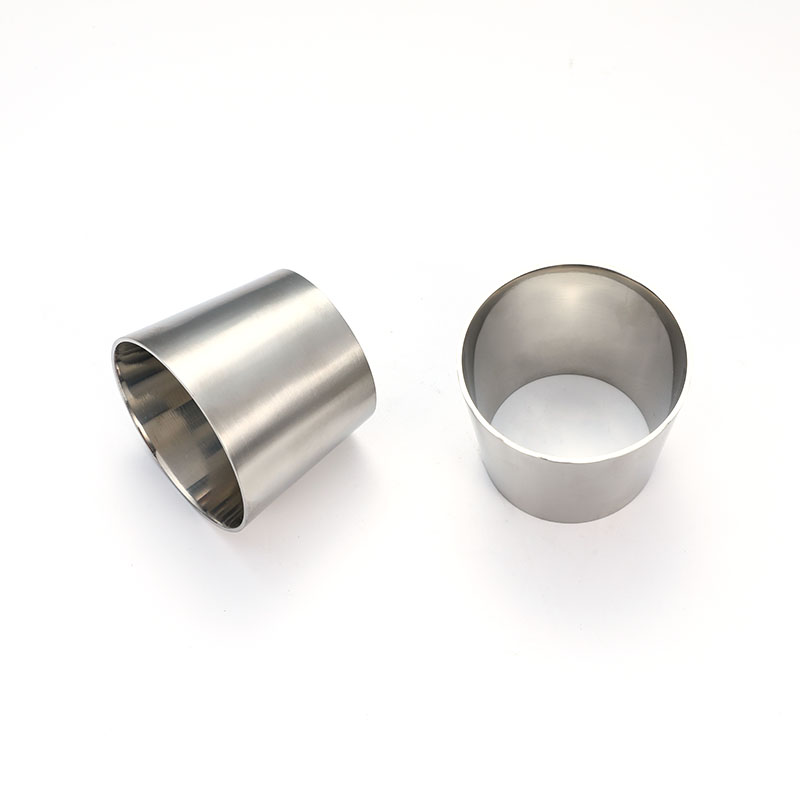

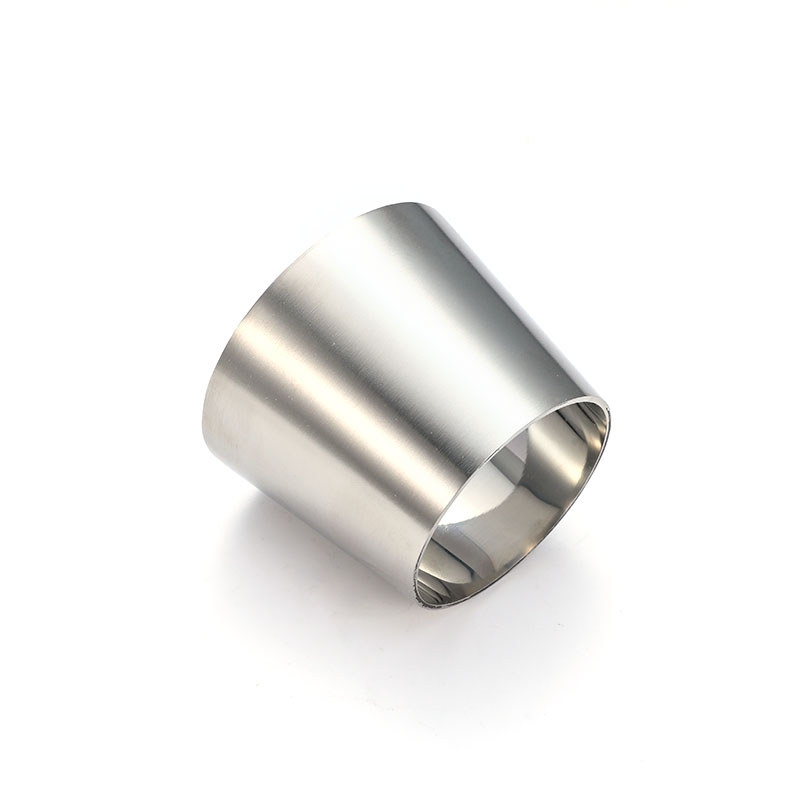

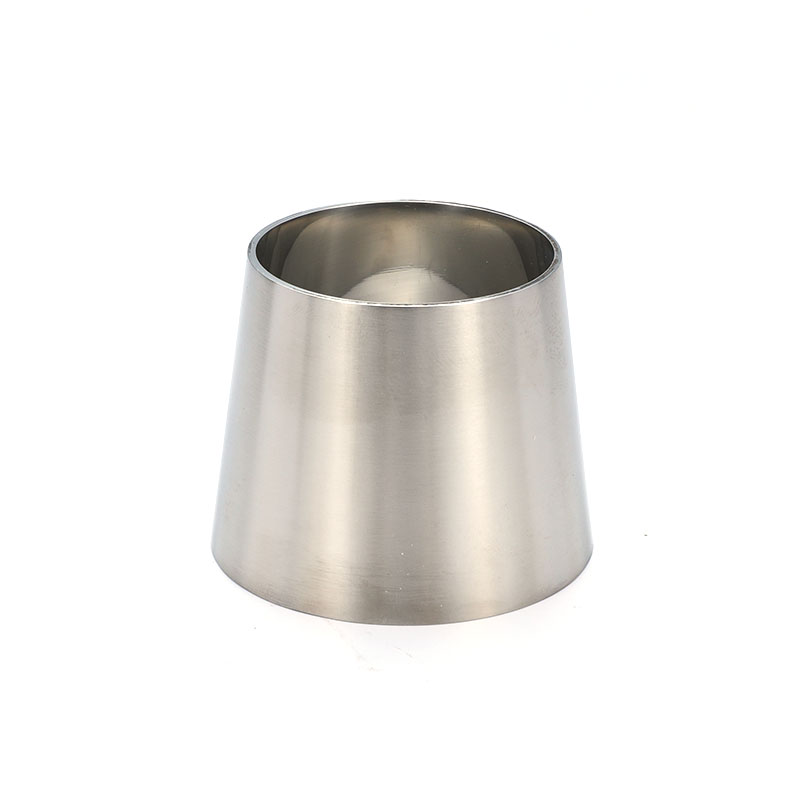

This reducer is suitable for connecting pipes of different diameters and features a symmetrical, concentric structure for smoother flow transitions. The welded ends provide a high-strength connection, making it suitable for production lines with long-term, high-frequency operation. The polished surface meets 3A sanitary fluid requirements and can be used for pump inlet reduction, process transfer connections, and transitions between equipment of different sizes.

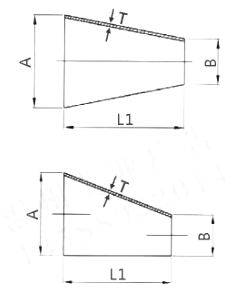

| Size | A×B | L1 | T | |||
| 1"-3/4" | 25.4×19 | 25.4 | 1.65×1.65 | |||
| 1" 1/2"-3/4" | 38.1×19 | 76.2 | 1.65×1.65 | |||
| 1" 1/2"- 1" | 38.1×25.4 | 50.8 | 1.65×1.65 | |||
| 2"-1" | 50.8×25.4 | 101.6 | 1.65×1.65 | |||
| 2"-1 1/2" | 50.8×38.1 | 50.8 | 1.65×1.65 | |||
| 2" 1/2"- 1" | 63.5×25.4 | 152.4 | 1.65×1.65 | |||
| 2" 1/2"-1 1/2" | 63.5×38.1 | 101.6 | 1.65×1.65 | |||
| 2" 1/2"- 2" | 63.5×50.8 | 50.8 | 1.65×1.65 | |||
| 3"-1" | 76.2×25.4 | 203.2 | 1.65×1.65 | |||
| 3"-11/2" | 76.2×38.1 | 152.4 | 1.65×1.65 | |||
| 3"-2" | 76.2×50.8 | 101.6 | 1.65×1.65 | |||
| 3"-2 1/2" | 76.2×63.5 | 50.8 | 1.65×1.65 | |||
| 4"-1 1/2" | 101.6×38.1 | 254 | 2.11×1.65 | |||
| 4"-2" | 101.6×50.8 | 203.2 | 2.11×1.65 | |||
| 4"-2 1/2" | 101.6×63.5 | 152.4 | 2.11×1.65 | |||
| 4"-3" | 101.6×76.2 | 101.6 | 2.11×1.65 | |||
| 6"-3" | 152.4×76.2 | 140 | 2.77×1.65 | |||
| 6"-4" | 152.4×101.6 | 140 | 2.77×2.11 | |||
| Size | A | B | L1 | T |
| 1/2×1/4" | 12.7 | 6.35 | 25.4 | 1.65 |
| 1/2×3/8" | 12.7 | 9.53 | 25.4 | 1.65 |
| 3/4×1/2" | 19.1 | 12.7 | 25.4 | 1.65 |
| 3/4×3/8" | 19.1 | 9.53 | 25.4 | 1.65 |
| 1.0×1/2" | 25.4 | 12.7 | 38.1 | 1.65 |
| 1.0×3/8" | 25.4 | 9.53 | 38.1 | 1.65 |
| 1.0×3/4" | 25.4 | 19.1 | 25.4 | 1.65 |
| 1.5×1/2" | 38.1 | 12.7 | 63.5 | 1.65 |
| 1.5×3/4" | 38.1 | 19.1 | 50.8 | 1.65 |
| 1.5×1.0" | 38.1 | 25.4 | 50.8 | 1.65 |
| 2.0×1/2" | 50.8 | 12.7 | 114.3 | 1.65 |
| 2.0×3/4" | 50.8 | 19.1 | 101.6 | 1.65 |
| 2.0×1.0" | 50.8 | 25.4 | 101.6 | 1.65 |
| 2.0×1.5" | 50.8 | 38.1 | 50.8 | 1.65 |
| 2.5×1.0" | 63.5 | 25.4 | 152.4 | 1.65 |
| 2.5×1.5" | 63.5 | 38.1 | 101.6 | 1.65 |
| 2.5×2.0" | 63.5 | 50.8 | 50.8 | 1.65 |
| 3.0×1.0" | 76.2 | 25.4 | 203.2 | 1.65 |
| 3.0×1.5" | 76.2 | 38.1 | 152.4 | 1.65 |
| 3.0×2.0" | 76.2 | 50.8 | 101.6 | 1.65 |
| 3.0×2.5" | 76.2 | 63.2 | 50.8 | 1.65 |
| 4.0×1.0" | 101.6 | 25.4 | 304.8 | 2.10 |
| 4.0×1.5" | 101.6 | 38.1 | 254 | 2.10 |
| 4.0×2.0" | 101.6 | 50.8 | 203.2 | 2.10 |
| 4.0×2.5" | 101.6 | 63.2 | 152.4 | 2.10 |
| 4.0×3.0" | 101.6 | 76.2 | 101.6 | 2.10 |
| 5.0×4.0" | 127 | 101.6 | 70 | 2.77 |
| 6.0×3.0" | 152.4 | 76.2 | 241.3 | 2.77 |
| 6.0×4.0" | 152.4 | 101.6 | 139.7 | 2.77 |
Standard welded tees are used for equal-diameter branch extensions in process piping and are widely used in the main pipelines of food and pharmaceutical factories. The product uses high-precision pip...
See Details
Equal-diameter tees are suitable for process environments where fluid needs to be evenly distributed into two branches or where two streams of liquid are combined into a main pipe. The product is manu...
See Details
The eccentric reducer features a non-coaxial structure, preventing media from settling at the bottom of the pipe, making it particularly suitable for horizontal pipelines or drainage systems. The exte...
See Details

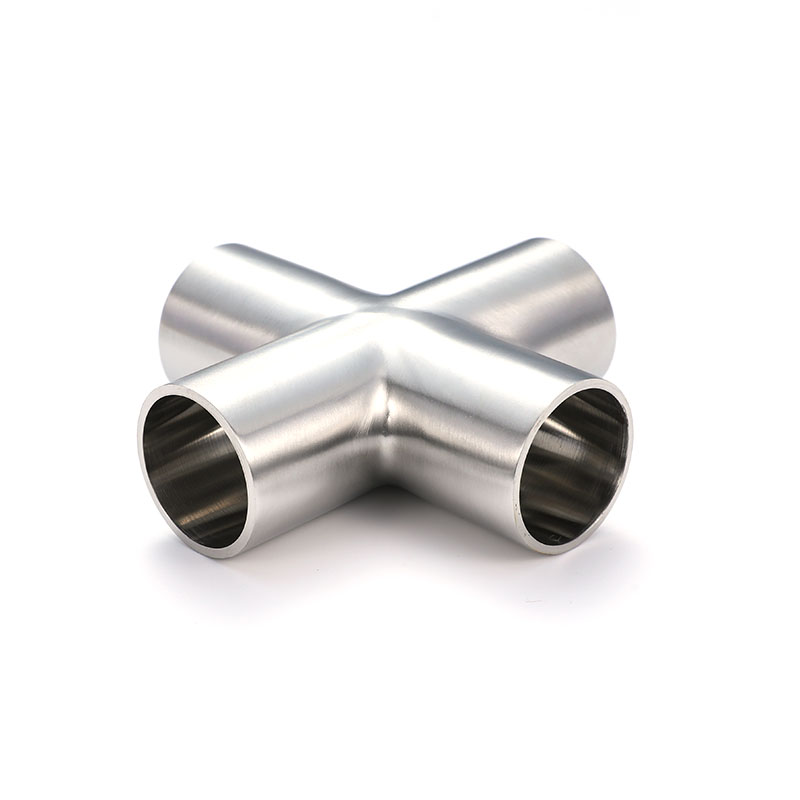

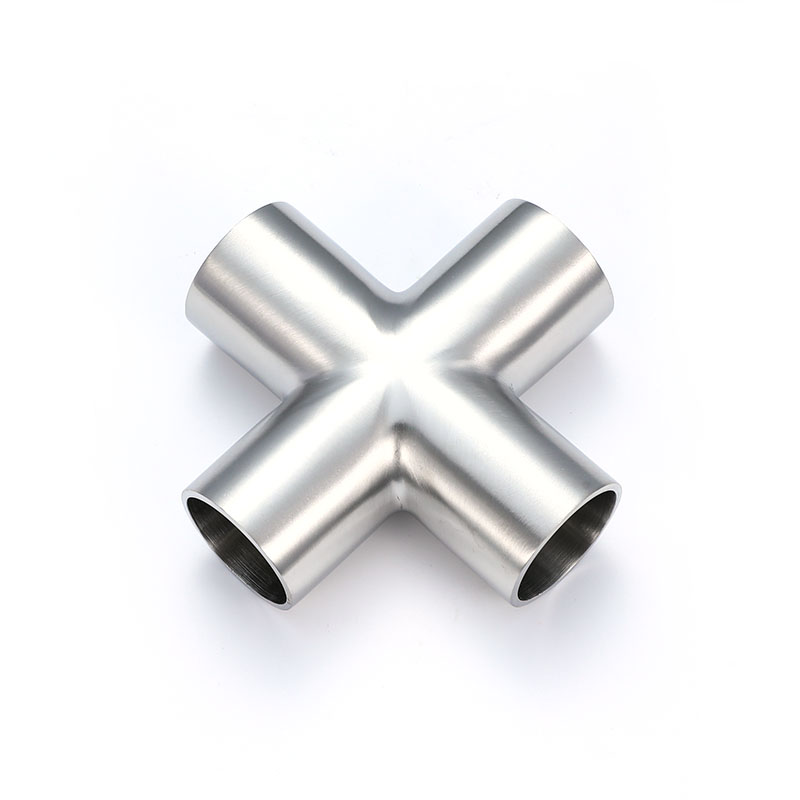

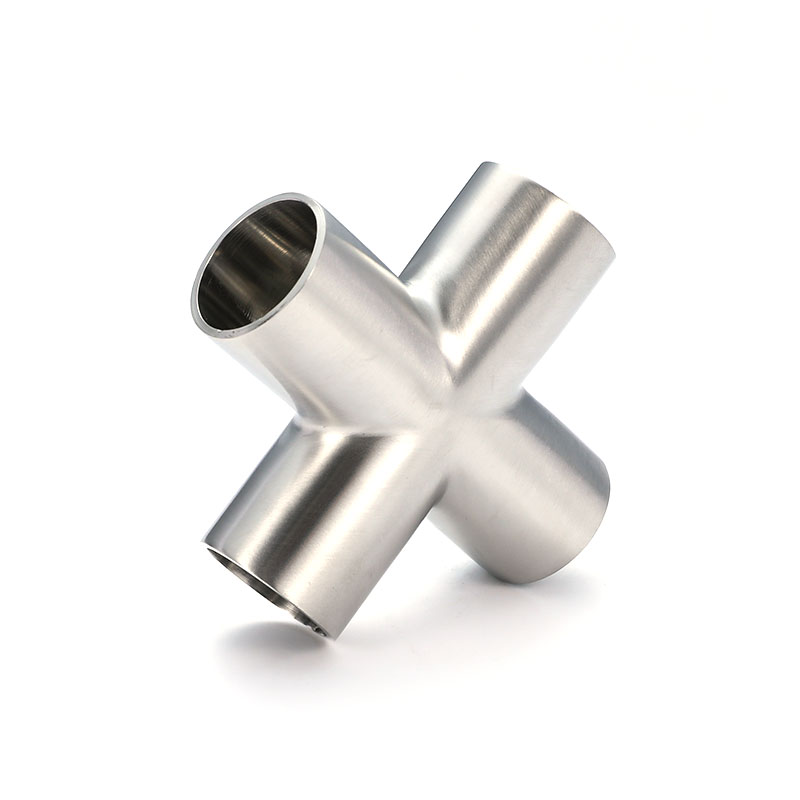

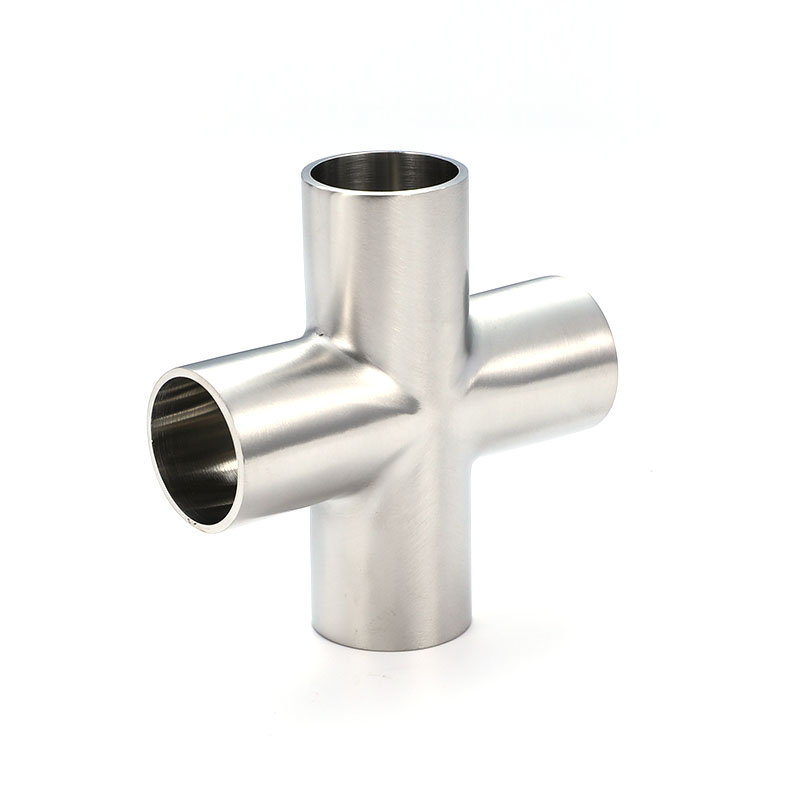

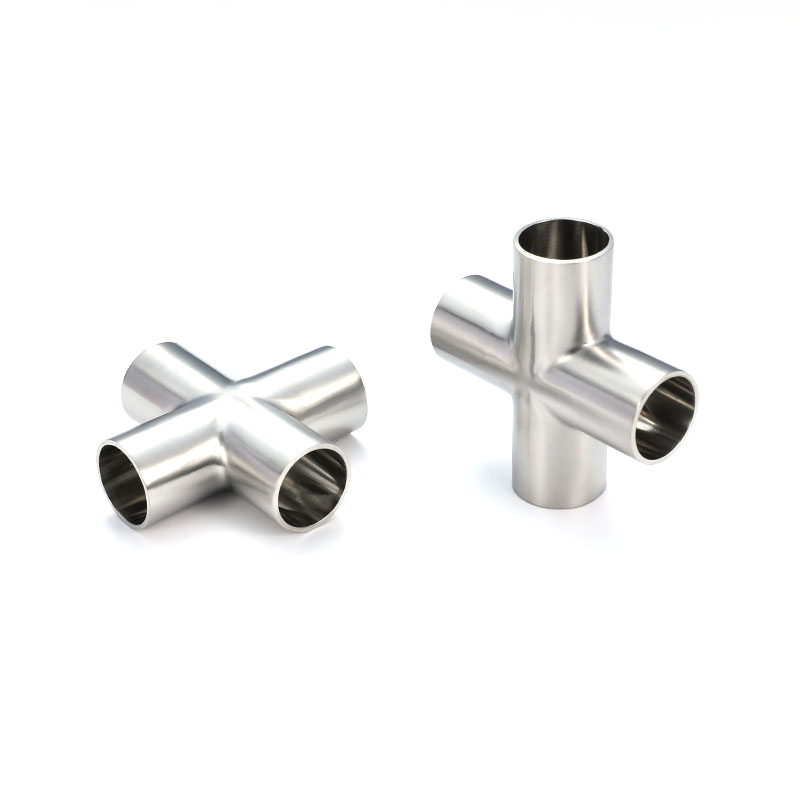

The short-type four-way connector provides a compact four-way connection solution for complex process networks. Its short block structure is particularly suitable for multi-branch piping in equipment-...
