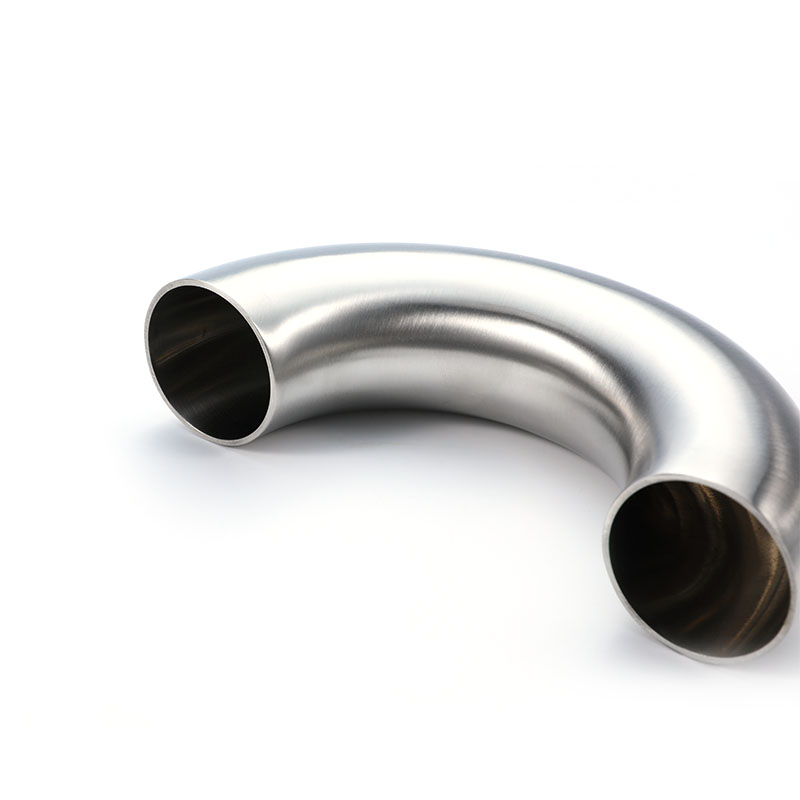

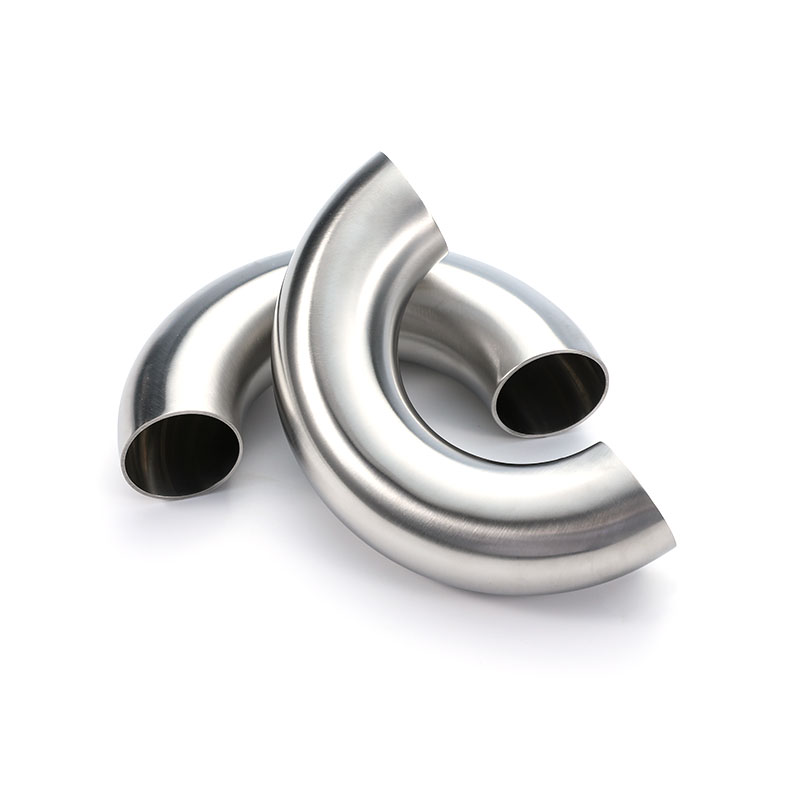

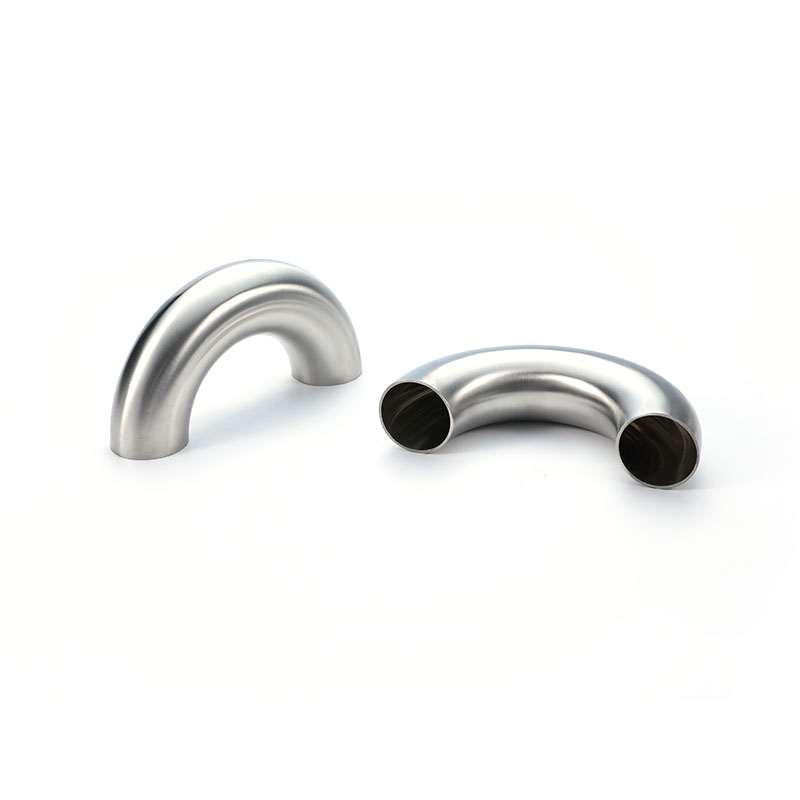

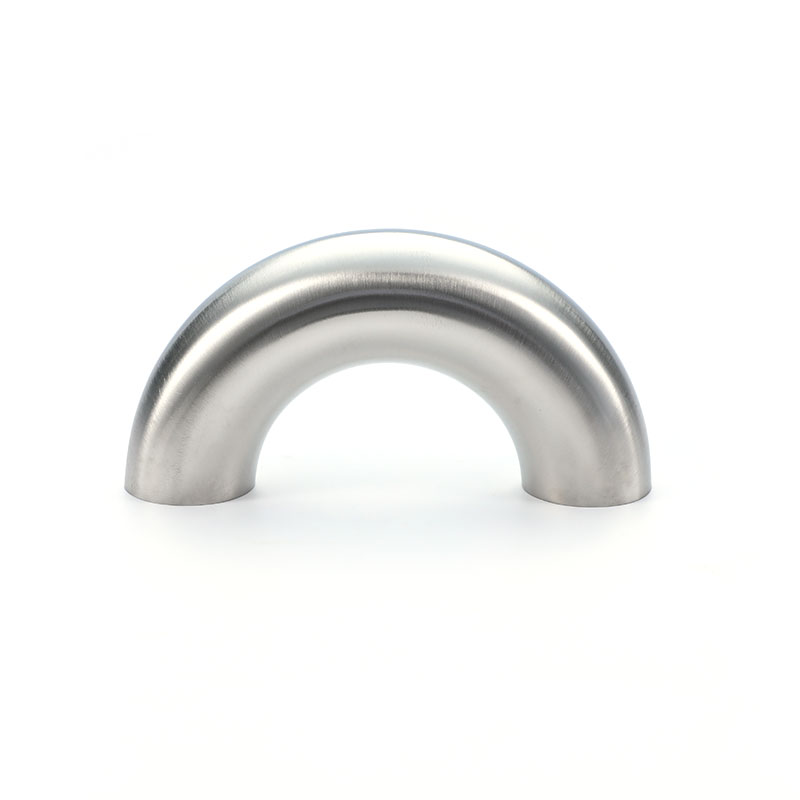

The 180° elbow is used to create a U-shaped return flow path and is commonly used in heat exchangers, jacketed tanks, or process systems requiring circulating return flow. The product features a precise bending radius and high roundness, ensuring smooth fluid flow and reduced resistance. The inner wall is polished to sanitary standards, and the welded ends are compatible with DIN standard pipe diameters. Its one-piece molded structure reduces the number of welds, improving overall pressure resistance and hygienic performance, making it an ideal choice for applications requiring higher structural reliability.
| Size | A | R | L1 | T | |
| DN10 | 12/13 | 26 | 52 | 1.5 | |
| DN15 | 18/19 | 35 | 70 | 1.5 | |
| DN20 | 22/23 | 40 | 80 | 1.5 | |
| DN25 | 28/29 | 50 | 100 | 1.5 | |
| DN32 | 34/35 | 55 | 110 | 1.5 | |
| DN40 | 40/41 | 60 | 120 | 1.5 | |
| DN50 | 52/53 | 70 | 140 | 1.5 | |
| DN65 | 70 | 80 | 160 | 2 | |
| DN80 | 85 | 90 | 180 | 2 | |
| DN100 | 104 | 100 | 200 | 2 | |
| DN125 | 129 | 187 | 375 | 2 | |
| DN150 | 154 | 225 | 450 | 2 | |
| DN200 | 204 | 300 | 600 | 2 | |
| DN250 | 254 | 325 | 750 | 2 | |
| DN300 | 306 | 450 | 900 | 3 | |
