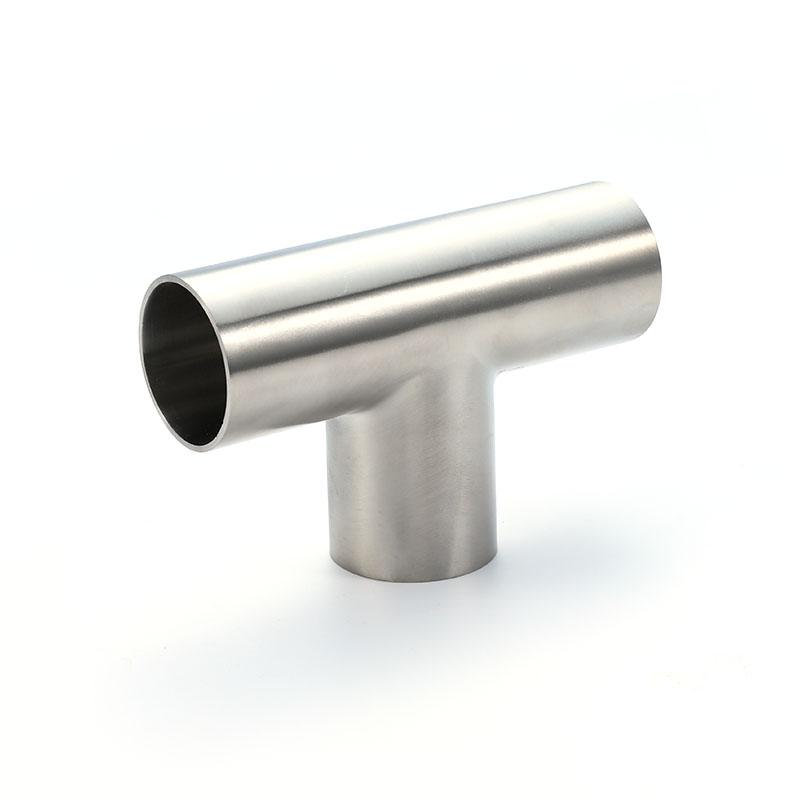

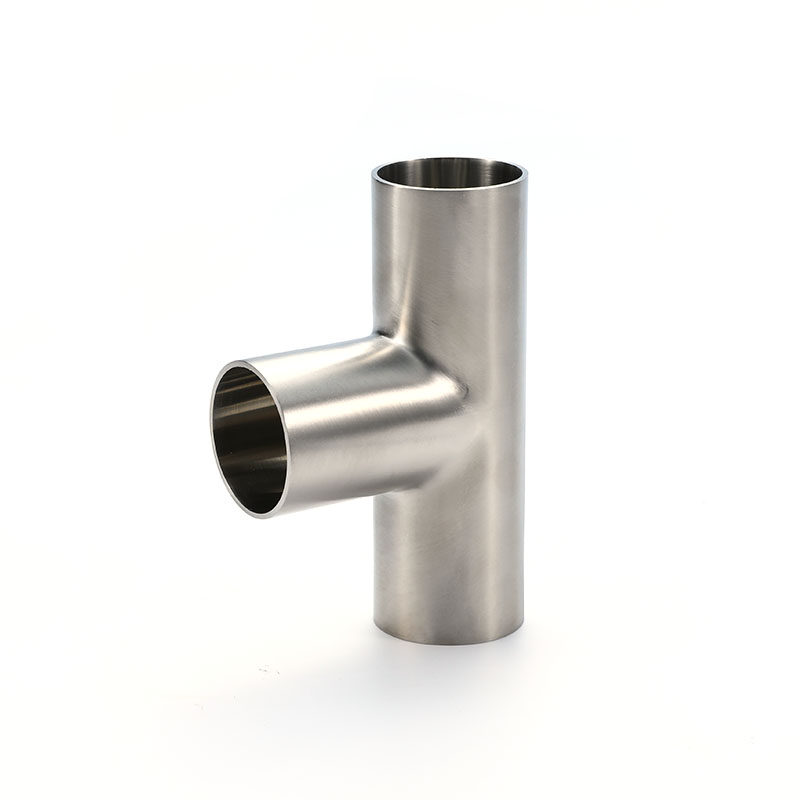

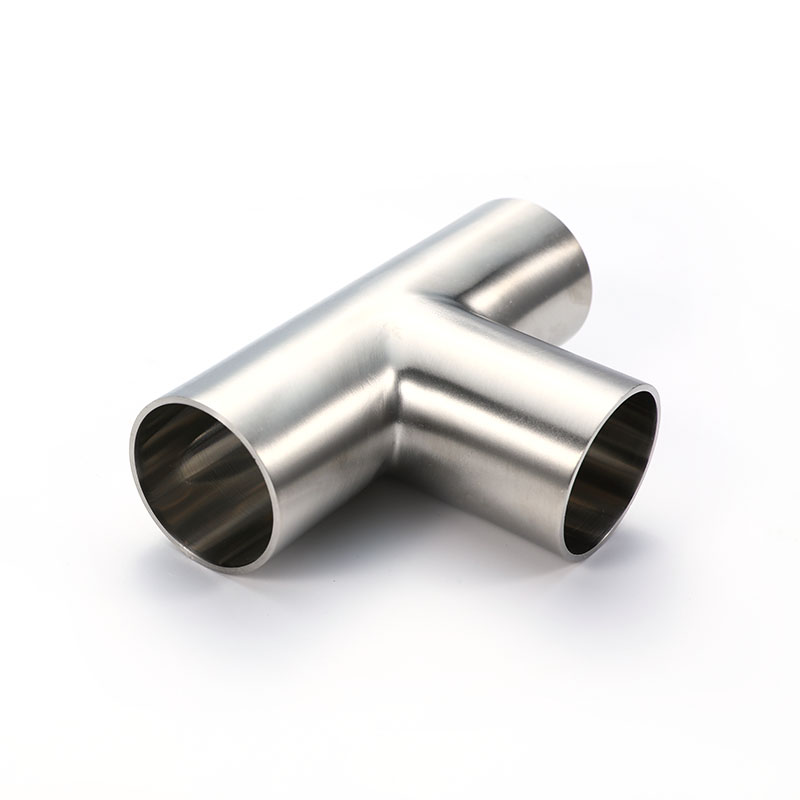

The elongated tee fitting provides more stable flow distribution, and its extended section reduces turbulence at the branch inlet, making it suitable for high-precision metering systems. The product features sanitary-grade welded joints and a finely polished inner surface, creating a smooth transition between the main pipe and the branch pipes. It is ideal for food, pharmaceutical, or mixing production lines that require precise control of material flow.
| Size | A | L1 | T | |||
| 1/2" | 12.7 | 47.6 | 1.65 | |||
| 3/4" | 19 | 47.6 | 1.65 | |||
| 1" | 25.4 | 47.6 | 1.65 | |||
| 1 1/4" | 31.8 | 55 | 1.65 | |||
| 1 1/2" | 38.1 | 57.2 | 1.65 | |||
| 2" | 50.8 | 76.2 | 1.65 | |||
| 2 1/2" | 63.5 | 76.2 | 1.65 | |||
| 3" | 76.2 | 82.6 | 1.65 | |||
| 4" | 101.6 | 98.4 | 2.11 | |||
| 6" | 152.4 | 143 | 2.8 | |||
| 8" | 203.2 | 178 | 2.8 | |||
| 10" | 254 | 216 | 2.8 | |||
