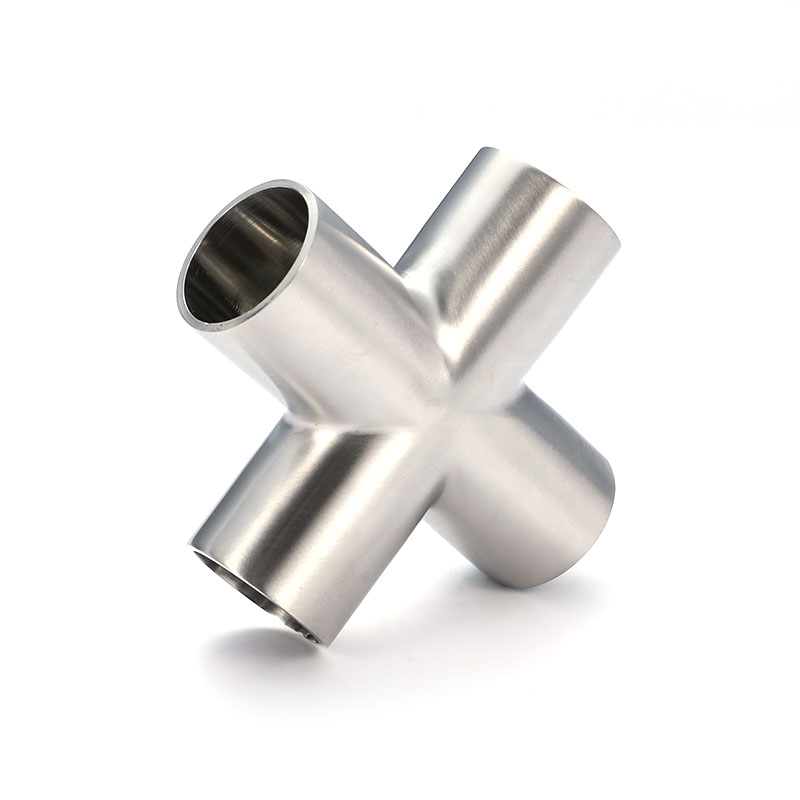

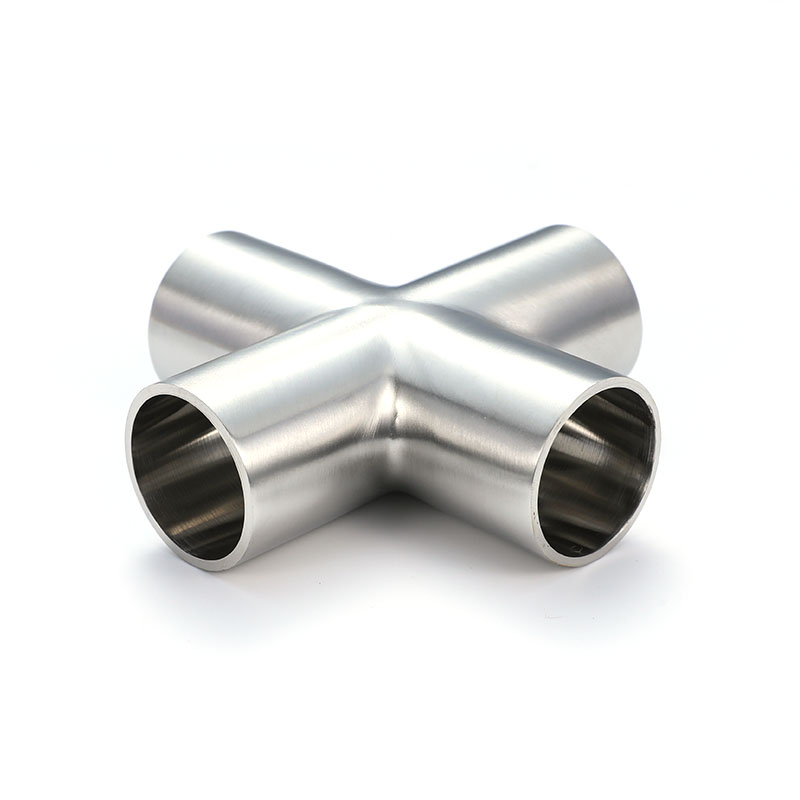

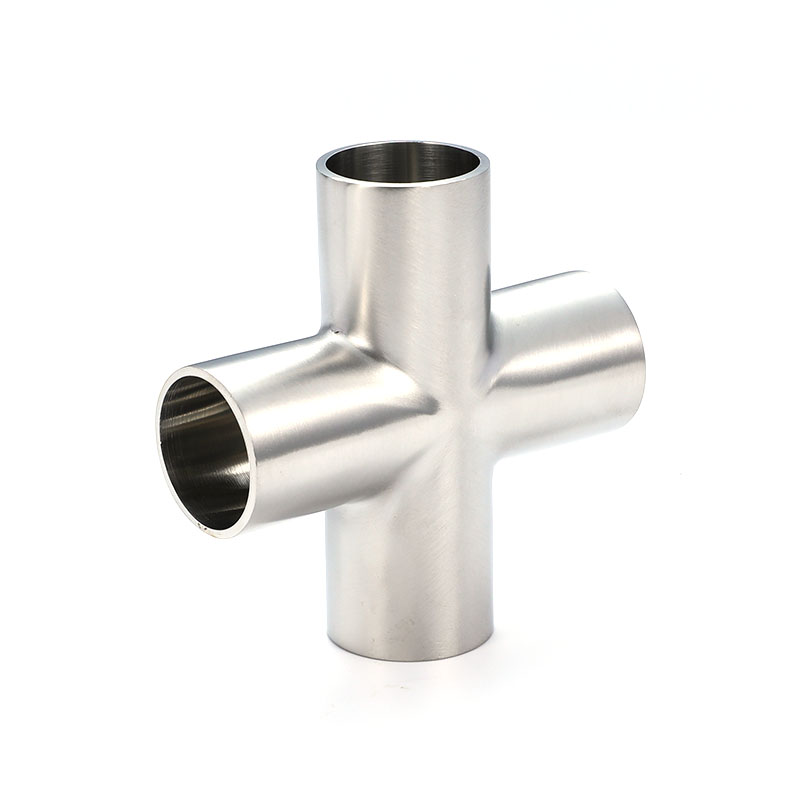

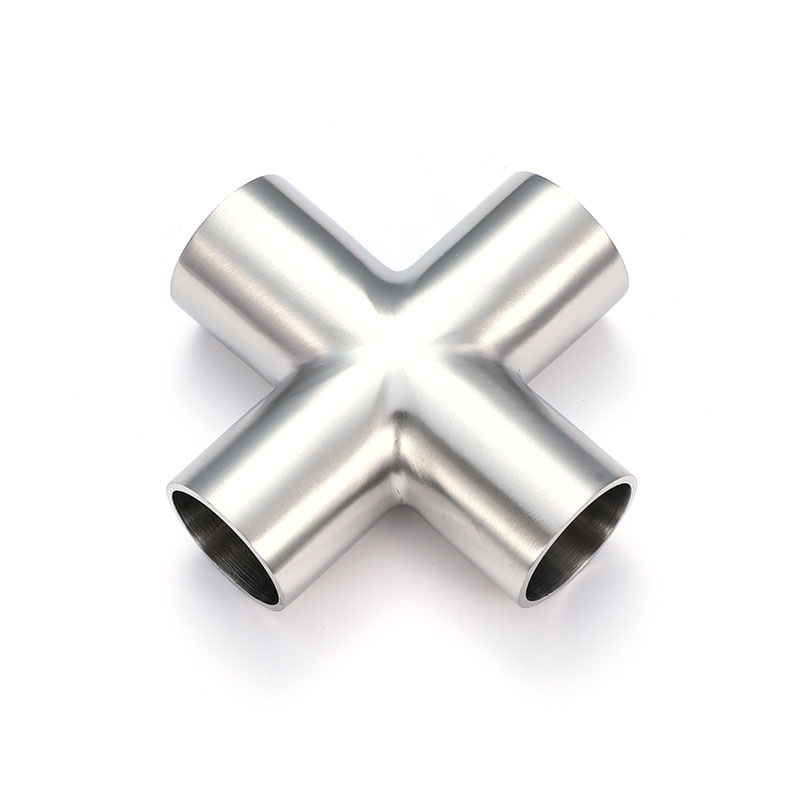

Welded four-way fittings are suitable for multi-directional fluid distribution nodes. We utilize a centrally symmetrical structure to ensure more balanced pressure distribution in all four directions, effectively reducing fatigue damage caused by impact. The internal corners are polished to ensure thorough cleaning of sanitary pipelines. They are commonly used in CIP circuits, cleaning and recovery systems, or multi-branch conveying systems.
| Size | A | L1 | T | ||||||||
| 1/2" | 12.7 | 19.1 | 1.6 | ||||||||
| 3/4" | 19.1 | 28.6 | 1.6 | ||||||||
| 1" | 25.4 | 38.1 | 1.6 | ||||||||
| 1 1/4" | 31.8 | 47.7 | 1.6 | ||||||||
| 1 1/2" | 38.1 | 57 | 1.6 | ||||||||
| 2" | 50.8 | 76.2 | 1.6 | ||||||||
| 2 1/2" | 63.5 | 95 | 1.6 | ||||||||
| 3" | 76.2 | 114.2 | 1.6 | ||||||||
| 4" | 101.6 | 152.4 | 2 | ||||||||
