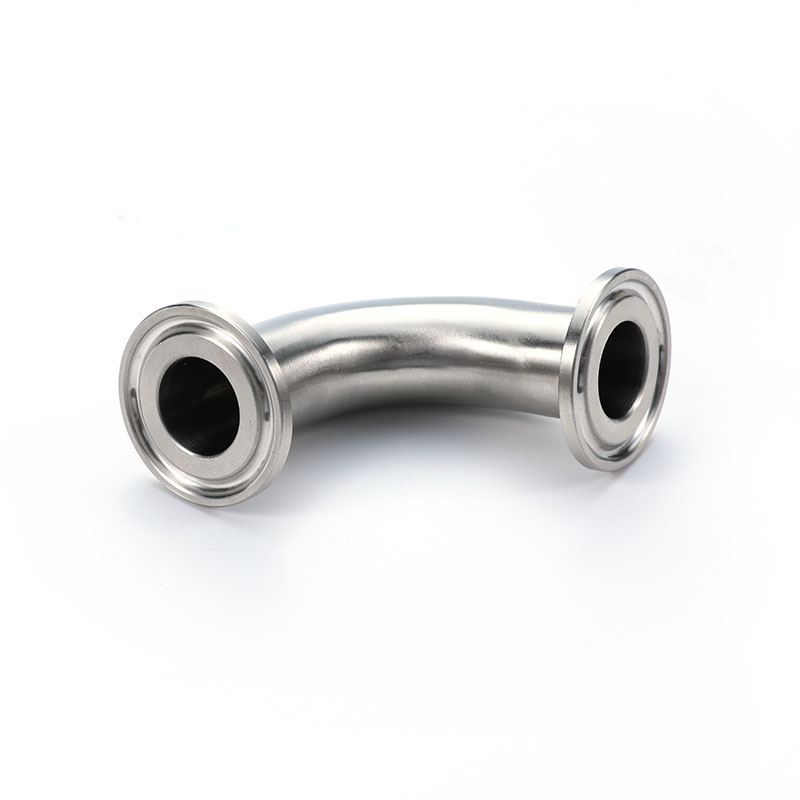

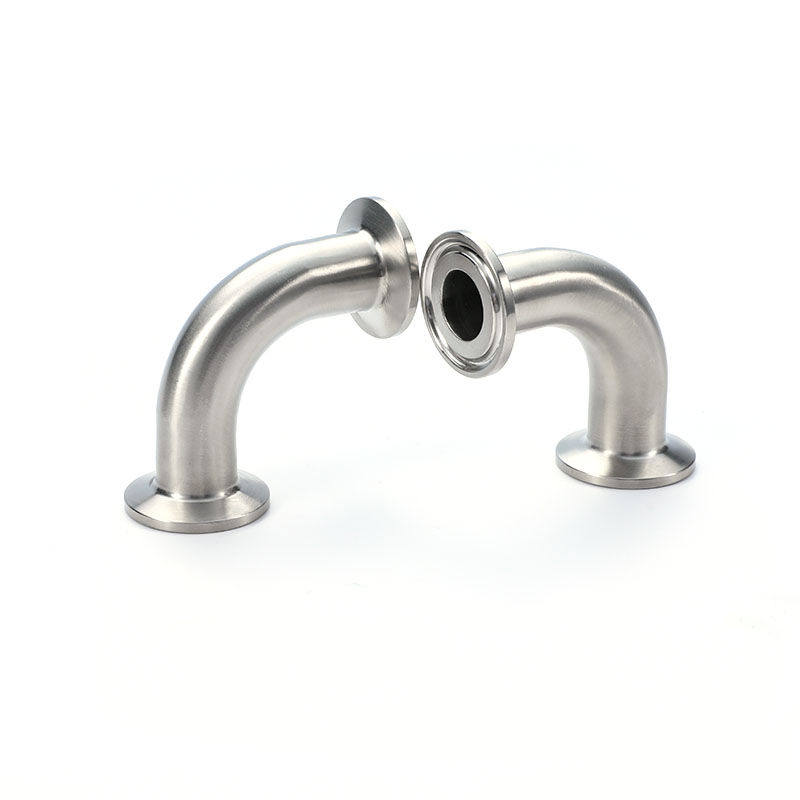

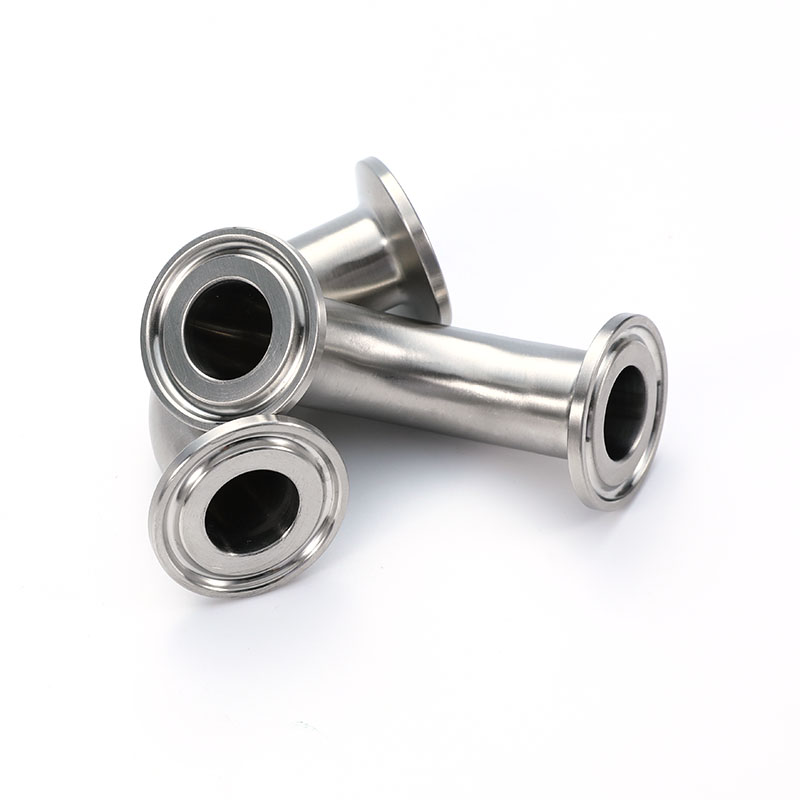

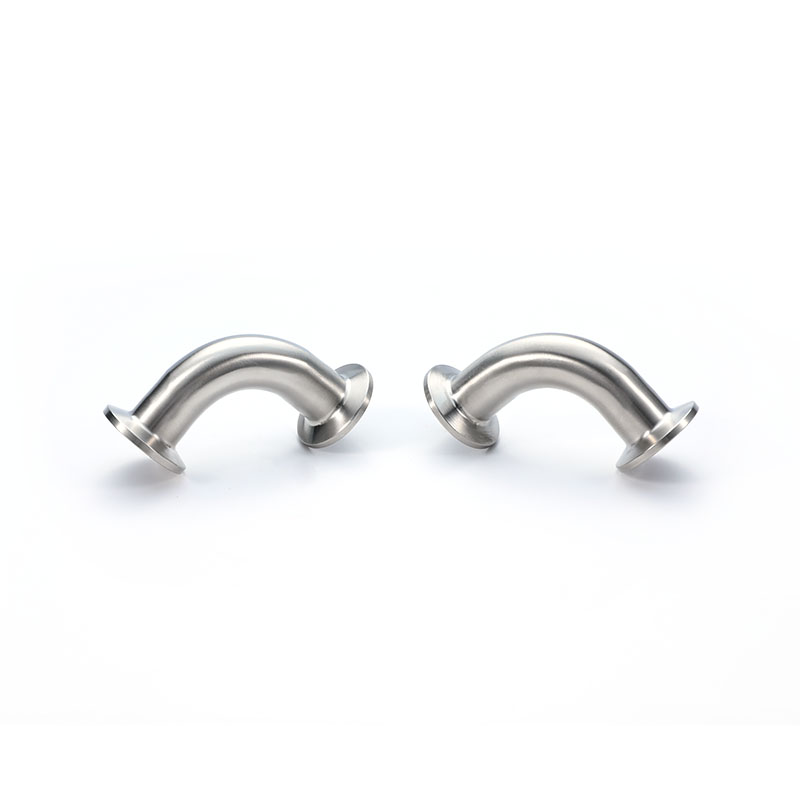

This 90° clamp elbow provides a right-angle turn using a quick-connect system, making it ideal for modular equipment and easy-to-clean systems. The clamp connection significantly shortens maintenance cycles, reducing downtime and improving production efficiency. Its inner surface is polished to a sanitary finish, improving fluid flow at the right angle and preventing the accumulation of highly sensitive food ingredients. The ISO/IDF standard ensures broad international compatibility, making it a commonly used sanitary elbow configuration for export-oriented factories.
| Size | A | R | L1 | T | ||||
| 1" | 25.4 | 33.5 | 55 | 50.5 | ||||
| 1 1/4" | 31.8 | 38 | 59.5 | 50.5 | ||||
| 1 1/2" | 38.1 | 48.5 | 70 | 50.5 | ||||
| 2" | 50.8 | 60.5 | 82 | 64 | ||||
| 2 1/2" | 63.5 | 83.5 | 105 | 77.5 | ||||
| 3" | 76.2 | 88.5 | 110 | 91 | ||||
| 3 1/2" | 89 | 103.5 | 125 | 106 | ||||
| 4" | 101.6 | 127 | 148.5 | 119 | ||||
90° welded elbows are primarily used in sanitary piping systems requiring right-angle turns. The product utilizes automatic welding and multi-stage polishing processes to ensure weld strength and sani...
See Details
Standard welded tees are used for equal-diameter branch extensions in process piping and are widely used in the main pipelines of food and pharmaceutical factories. The product uses high-precision pip...
See Details
Welded reducers are used for smooth transitions between pipes of different diameters. Available in concentric or eccentric designs, they adapt to various installation requirements and help reduce sudd...
See Details
Standard 90° SMS welded elbows are primarily used for right-angle connections in sanitary piping systems and are common basic components in Nordic dairy and beverage engineering. They are manufactured...
See Details
The long-radius 90° elbow is suitable for high-speed fluid transfer and significantly reduces pressure drop and turbulence caused by sharp turns. It is commonly used in large beverage plants, dairy pr...
See Details
The eccentric reducer features a non-coaxial structure, preventing media from settling at the bottom of the pipe, making it particularly suitable for horizontal pipelines or drainage systems. The exte...
See Details
This 90° clamp elbow provides a solution that combines quick installation with high cleanliness, and is commonly used in process piping for dairy products, flavorings, and fermentation liquids. The cl...
See Details
180° elbows are used for system return lines or U-shaped piping configurations, commonly found in circulating cooling, heat exchange systems, and bidirectional conveying processes. They are manufactur...
See Details
Clamp-type tees are suitable for food companies with multiple recipes and batches, allowing for quick switching of branch connections. Assembly can be completed without welding, significantly reducing...
See Details
This 45° short-radius welding elbow features a compact arc design, making it ideal for applications with strict space requirements, such as within equipment or in densely packed piping areas. We utili...
See Details
This long 45° welding elbow is designed specifically for high-purity fluid transfer. The extended section reduces turbulence and the risk of particle shedding when changing flow direction. Manufacture...
See Details
180° welded elbows are used in critical fluid handling and purified water systems where U-shaped loops are required. We utilize large-radius bending during manufacturing to ensure smoother media flow ...
See Details
