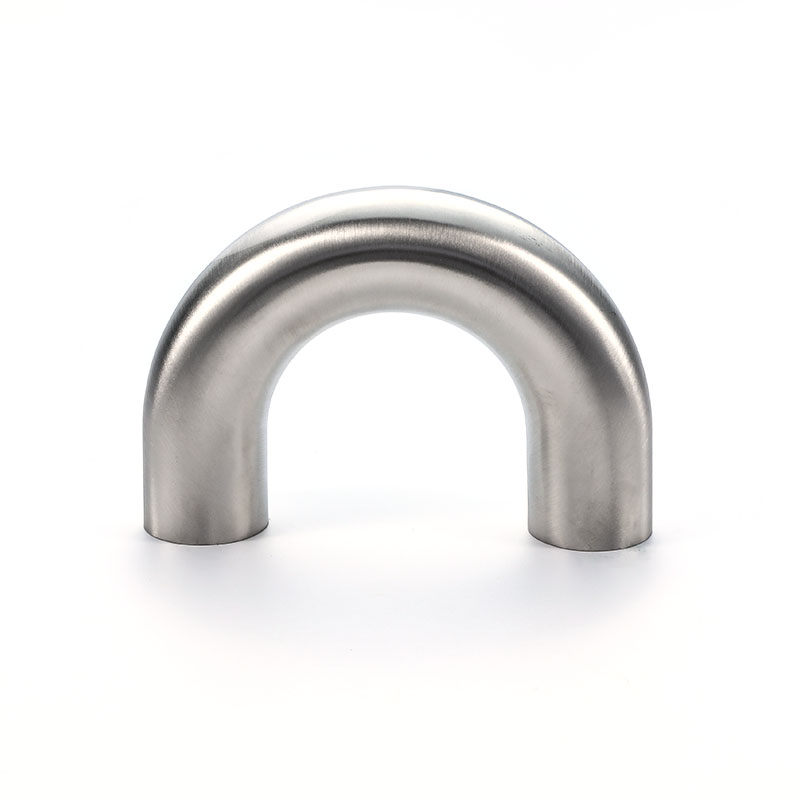

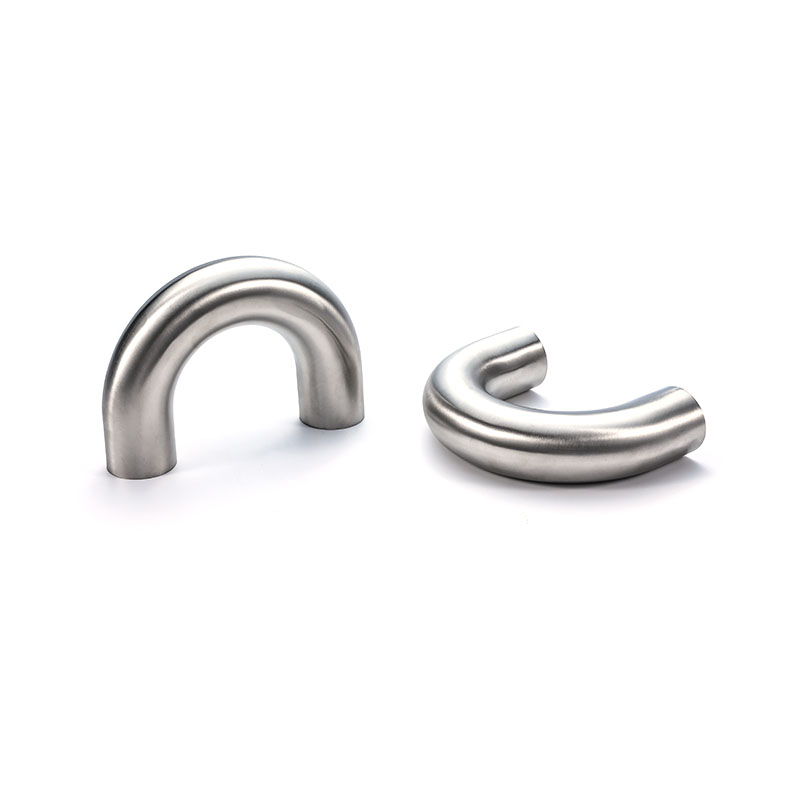

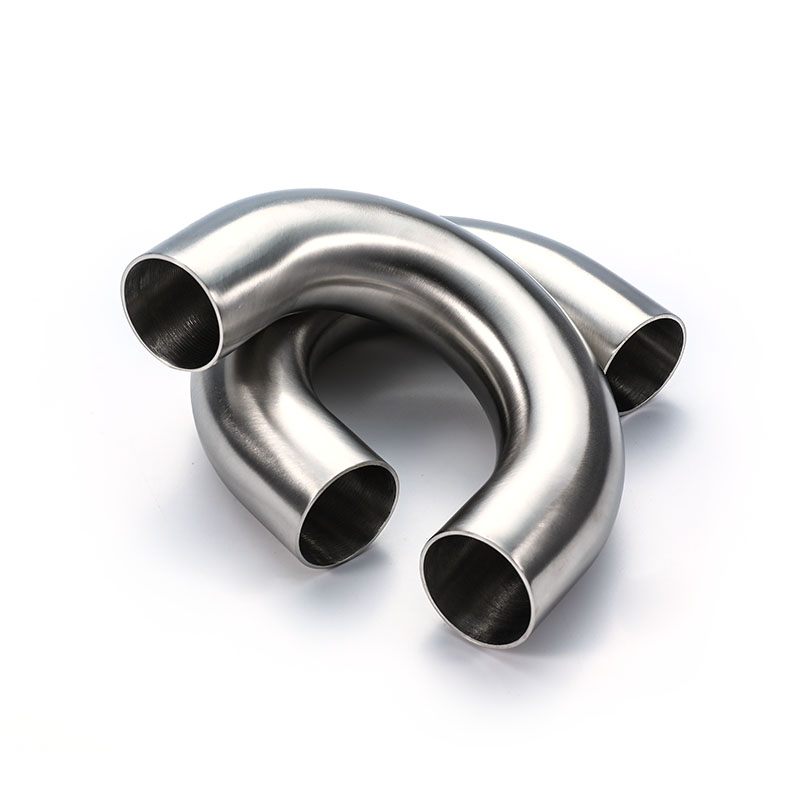

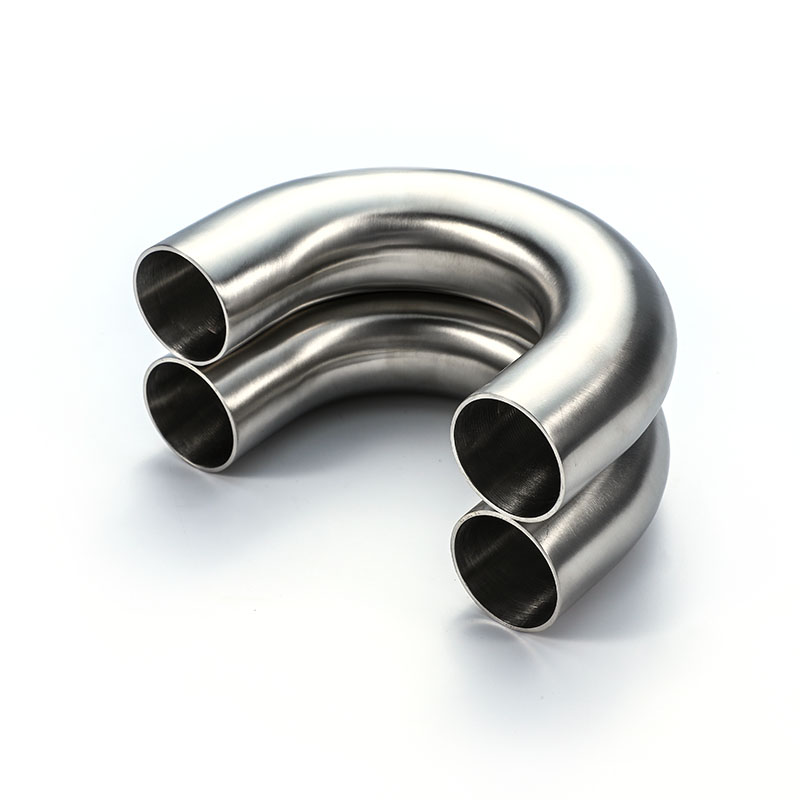

180° welded elbows are used in critical fluid handling and purified water systems where U-shaped loops are required. We utilize large-radius bending during manufacturing to ensure smoother media flow and reduce back pressure. They are particularly suitable for sampling loops, CIP/SIP return lines, or main loop applications. The inner surface is polished to BPE standards, ensuring no dead zones during system validation.
| Size | A | L1 | L2 | T | |||||||||
| 1/2" | 12.7 | 88.9 | 38.1 | 1.65 | |||||||||
| 3/4" | 19.05 | 88.9 | 57.2 | 1.65 | |||||||||
| 1" | 25.4 | 88.9 | 76.2 | 1.65 | |||||||||
| 1 1/2" | 38.1 | 127 | 114.3 | 1.65 | |||||||||
| 2" | 50.8 | 127 | 152.4 | 1.65 | |||||||||
| 2 1/2" | 63.5 | 146.1 | 190.5 | 1.65 | |||||||||
| 3" | 76.2 | 165.1 | 228.6 | 1.65 | |||||||||
| 4" | 101.6 | 215.9 | 304.8 | 2.11 | |||||||||
| Size | A | A | L1 | L2 | |
| 3/4"×1/2" | 25.4 | 57.15 | 57.2 | 95.25 | |
| 1"×1/2" | 25.58 | 57.15 | 76.2 | 95.25 | |
| 1"×3/4" | 25.58 | 57.15 | 76.2 | 95.25 | |
| 1 1/2"×1/2 | 34.93 | 76.2 | 114.3 | 114.3 | |
| 1 1/2"×3/4" | 34.93 | 76.2 | 114.3 | 114.3 | |
| 1 1/2"×1" | 34.93 | 76.24 | 114.3 | 114.3 | |
| 2"×1/2" | 41.28 | 76.2 | 152.4 | 127 | |
| 2"×3/4" | 41.28 | 76.2 | 152.4 | 127 | |
| 2"×1 | 41.28 | 76.2 | 152.4 | 127 | |
| 2"×1 1/2" | 41.28 | 76.2 | 152.4 | 127 | |
| 2 1/2"×1/2" | 47.63 | 95.25 | 190.5 | 146.05 | |
| 2 1/2"×3/4" | 47.63 | 95.25 | 190.5 | 146.05 | |
| 2 1/2"×1" | 47.63 | 95.25 | 190.5 | 146.05 | |
| 2 1/2"×1 1/2" | 47.63 | 95.25 | 190.5 | 146.05 | |
| 2 1/2"×2" | 47.63 | 95.25 | 190.5 | 146.05 | |
| 3"×1/2" | 53.98 | 114.3 | 228.6 | 165.1 | |
| 3"×3/4" | 53.98 | 114.3 | 228.6 | 165.1 | |
| 3"×1 | 53.98 | 114.3 | 228.6 | 165.1 | |
| 3"×1 1/2" | 53.98 | 114.3 | 228.6 | 165.1 | |
| 3"×2" | 53.95 | 114.3 | 228.6 | 165.1 | |
| 3"×2 1/2" | 53.95 | 114.3 | 228.6 | 165.1 | |
| 4"×1/2" | 66.68 | 152.4 | 304.8 | 215.9 | |
| 4"×3/4" | 66.68 | 152.4 | 304.8 | 215.9 | |
| 4"×1" | 66.68 | 152.4 | 304.8 | 215.9 | |
| 4"×1 1/2" | 66.68 | 152.4 | 304.8 | 215.9 | |
| 4"×2" | 66.68 | 152.4 | 304.8 | 215.9 | |
| 4"×2 1/2" | 66.68 | 152.4 | 304.8 | 215.9 | |
| 4"×3" | 66.68 | 152.4 | 304.8 | 215.9 | |
