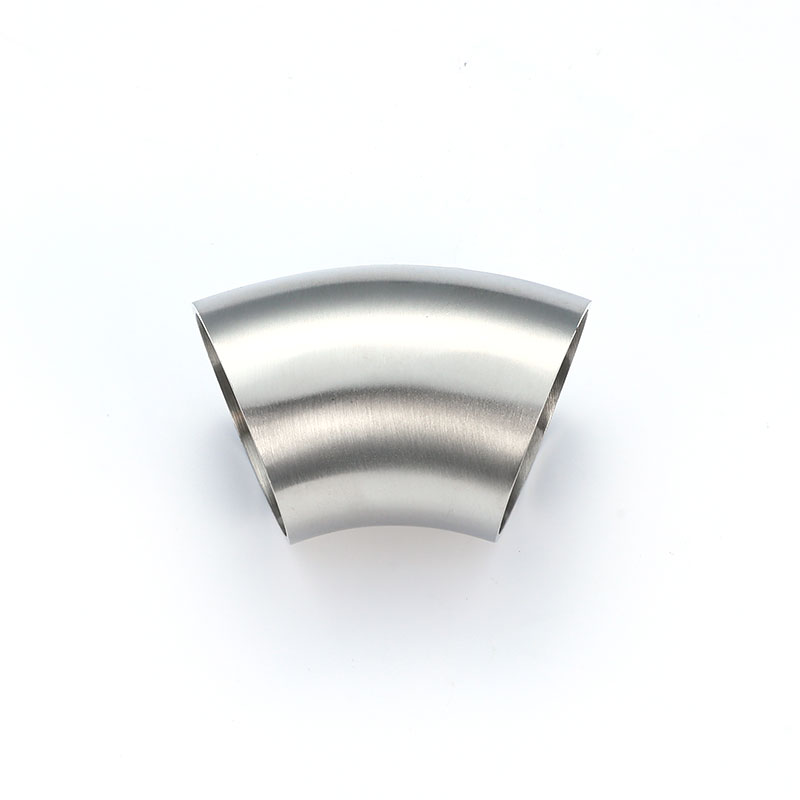

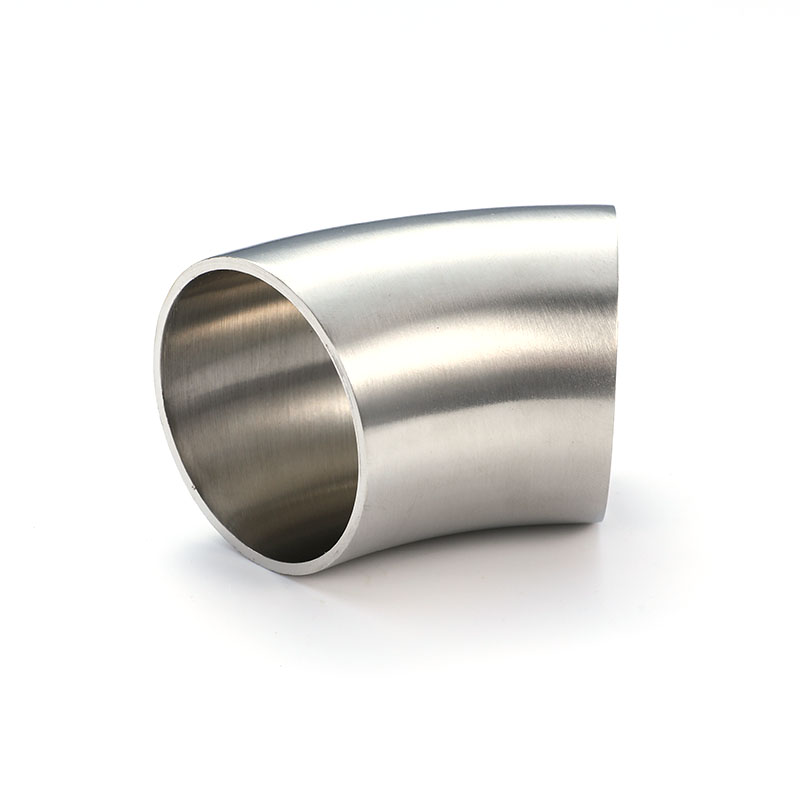

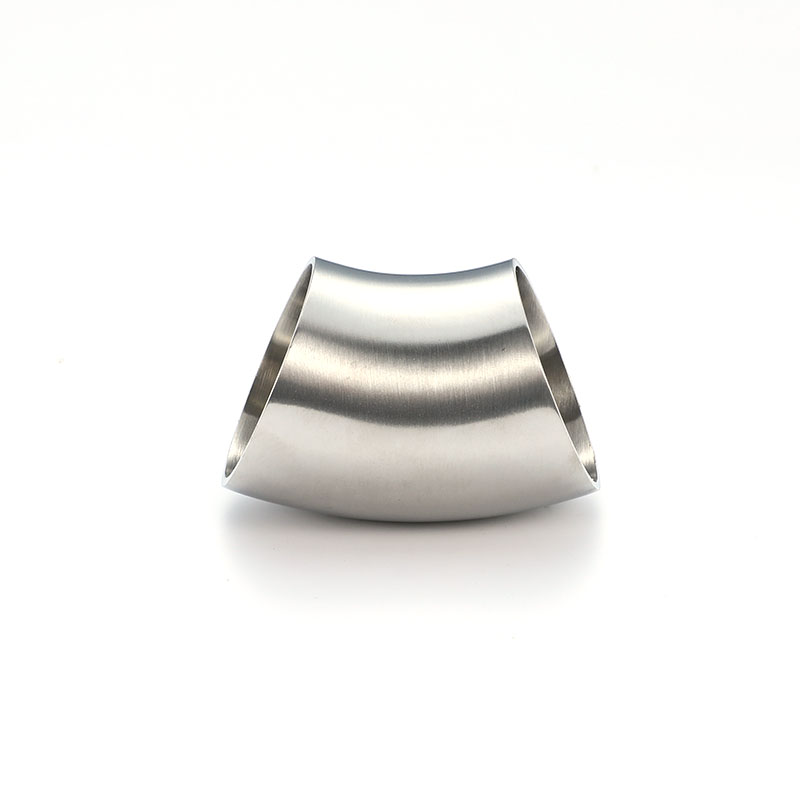

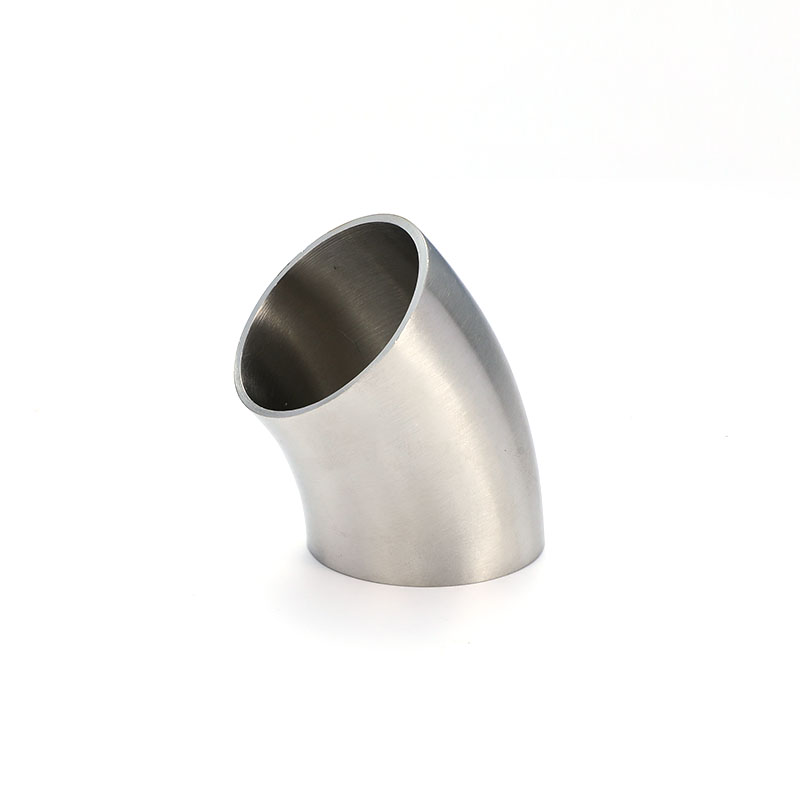

This 45° welded elbow is specifically designed for American 3A dairy and food systems, featuring a gentle bend suitable for conveying processes sensitive to fluid shear. Made from 316L stainless steel through deep drawing and precision welding, its inner surface is mirror-polished to ensure that media such as milk and fruit pulp do not accumulate. The welded ends are manufactured to strict 3A standards, meeting CIP/SIP cleaning requirements, making it a fundamental component for improving hygiene in food-grade piping systems.
| Size | A | R | L1 | T | |
| 1/2" | 12.7 | 19 | 7.1 | 1.65 | |
| 3/4" | 19 | 28.6 | 11.9 | 1.65 | |
| 1" | 25.4 | 38.1 | 15.8 | 1.65 | |
| 1 1/4" | 31.8 | 47.7 | 19.8 | 1.65 | |
| 1 1/2" | 38.1 | 57.2 | 23.8 | 1.65 | |
| 2" | 50.8 | 76.2 | 31.8 | 1.65 | |
| 2 1/2" | 63.5 | 95.3 | 39.6 | 1.65 | |
| 3" | 76.2 | 114.3 | 47.6 | 1.65 | |
| 4" | 101.6 | 152.4 | 63.5 | 2.1 | |
| 6" | 152.4 | 228.6 | 94.7 | 2.8 | |
| 8" | 203.2 | 305.2 | 126.4 | 2.8 | |
| 10" | 254 | 381 | 157.8 | 2.8 | |
| 12" | 304.8 | 457 | 189.3 | 2.8 | |
| Size | A | R | L1 | T | |
| 1/2" | 12.7 | 19 | 57.5 | 1.65 | |
| 3/4" | 19.5 | 28.58 | 57.2 | 1.65 | |
| 1" | 25.4 | 38.1 | 30.2 | 1.65 | |
| 11/4" | 31.8 | 47.7 | 41.3 | 1.65 | |
| 11/2" | 38.1 | 57.2 | 41.3 | 1.65 | |
| 2" | 50.8 | 76.2 | 58.7 | 1.65 | |
| 21/2" | 63.5 | 95.3 | 76.2 | 1.65 | |
| 3" | 76.2 | 114.3 | 93.7 | 1.65 | |
| 4" | 101.6 | 152.4 | 122.2 | 1.65 | |
| 6" | 152.4 | 228.6 | 158.2 | 2.8 | |
| Size | A | R | L1 | T | |||||||
| 1/2" | 12.7 | 19.1 | 25.4 | 1.65 | |||||||
| 3/4" | 19.1 | 28.6 | 38.1 | 1.65 | |||||||
| 1" | 25.4 | 38.1 | 52.4 | 1.65 | |||||||
| 11/4" | 31.8 | 47.7 | 69.7 | 1.65 | |||||||
| 11/2 | 38.1 | 57.2 | 74.6 | 1.65 | |||||||
| 2" | 50.8 | 76.2 | 103.2 | 1.65 | |||||||
| 21/2" | 63.5 | 95.3 | 131.8 | 1.65 | |||||||
| 3" | 76.2 | 114.3 | 160.3 | 1.65 | |||||||
| 4" | 101.6 | 152.4 | 211.1 | 2 | |||||||
| 6" | 152.4 | 228.6 | 292.1 | 2.8 | |||||||
| 8" | 203.2 | 228.6 | 304.8 | 2.8 | |||||||
90° welded elbows are primarily used in sanitary piping systems requiring right-angle turns. The product utilizes automatic welding and multi-stage polishing processes to ensure weld strength and sani...
See Details
Compared to standard 90° elbows, this long-radius design features a larger bending radius, reducing fluid impact and pressure drop, making it suitable for high-speed fluid or large-particle material c...
See Details
This 45° welding elbow is manufactured according to SMS standards and is suitable for medium-angle directional adjustments in Nordic piping systems. The compact design of the bend reduces the space re...
See Details
The eccentric reducer features a non-coaxial structure, preventing media from settling at the bottom of the pipe, making it particularly suitable for horizontal pipelines or drainage systems. The exte...
See Details
This 90° clamp elbow provides a solution that combines quick installation with high cleanliness, and is commonly used in process piping for dairy products, flavorings, and fermentation liquids. The cl...
See Details
This 45° long-radius welding elbow features a longer bending radius, allowing for a smoother fluid transition while changing direction, thus reducing turbulence and pressure loss. We use thickened pip...
See Details
This long-radius 90° elbow features a smoother curve, making it ideal for high-speed fluid or low-solids liquid transfer, minimizing media impact. We use highly ductile steel in the manufacturing proc...
See Details
Clamp-type elbows are designed for quick assembly and disassembly. We utilize a high-precision groove forming process to ensure a stable seal after the clamp is tightened. They are suitable for applic...
See Details
The clamp-type tee connector supports quick assembly and modular combination. We utilize seamless branching technology to ensure smoother internal transitions and facilitate CIP and SIP hygienic clean...
See Details
This standard welded tee is made of corrosion-resistant steel and features a one-piece molded design, suitable for most conventional branching requirements in SA process pipelines. Its branch connecti...
See Details
Welded four-way fittings are suitable for multi-directional fluid distribution nodes. We utilize a centrally symmetrical structure to ensure more balanced pressure distribution in all four directions,...
See Details
This 90° clamp elbow is designed for systems requiring quick adjustments or frequent disassembly, such as validation areas and filter outlet connections. We utilize a highly polished clamp face to ens...
See Details
