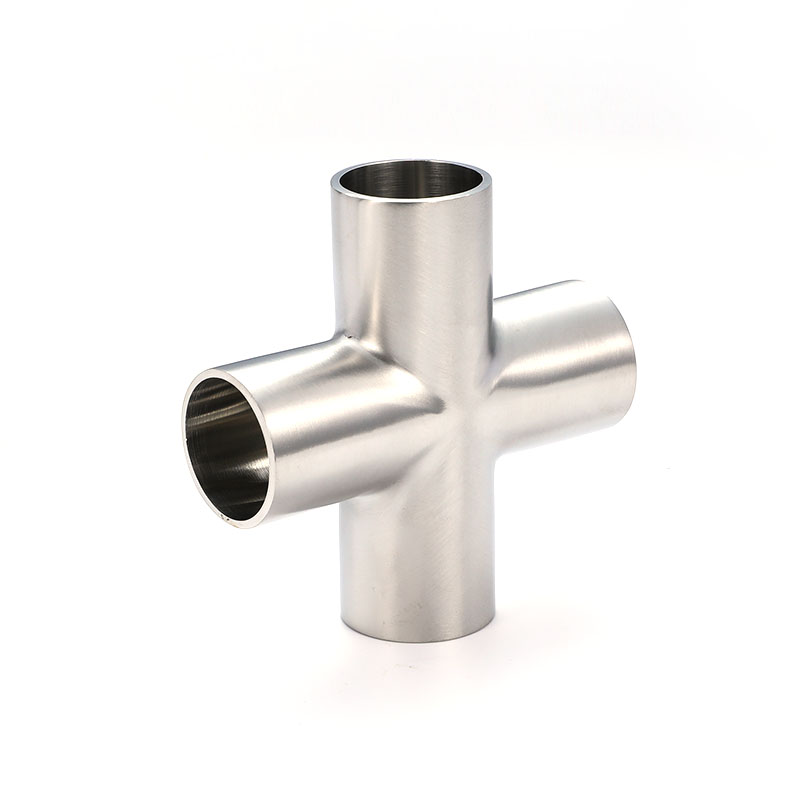

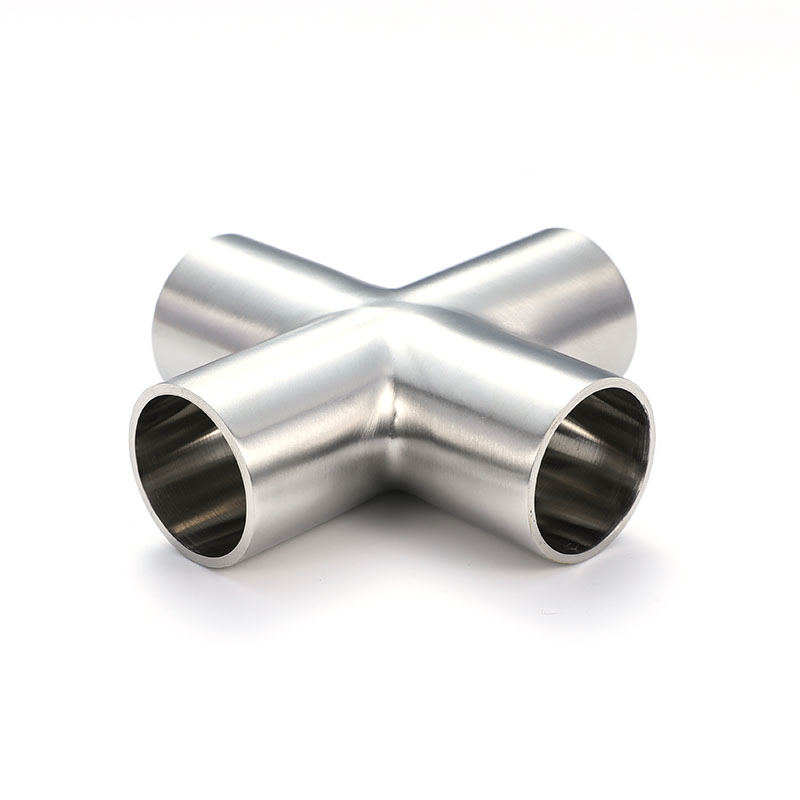

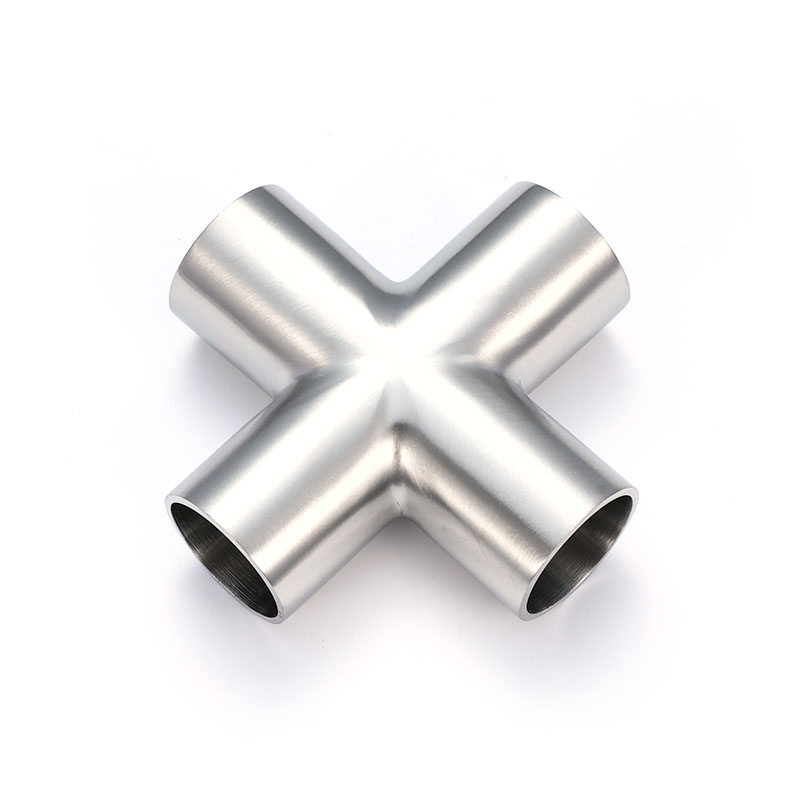

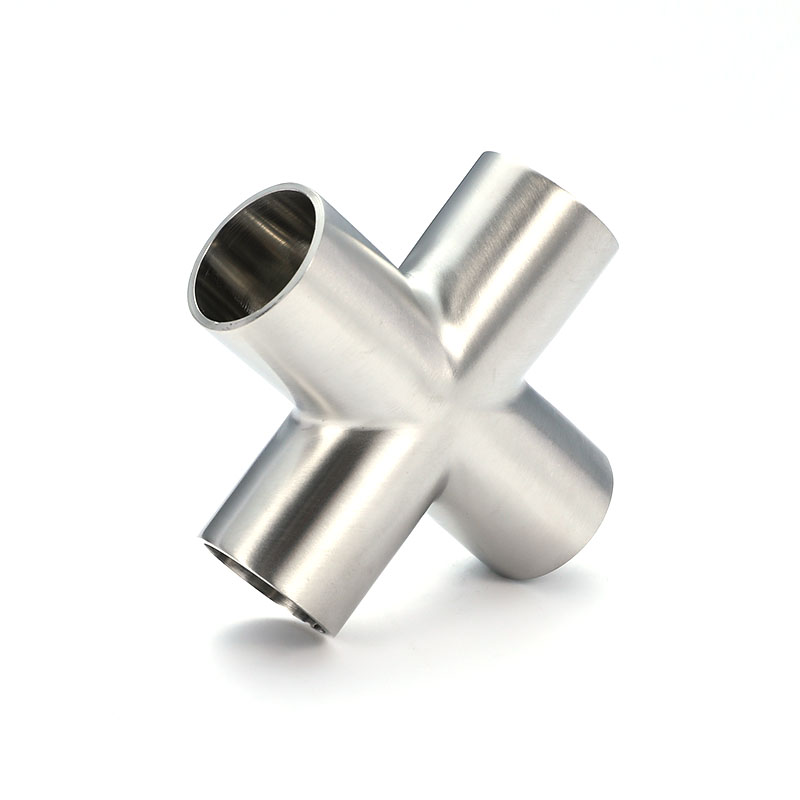

Welded four-way connectors are commonly used in multi-directional distribution nodes, such as multi-branch structures for clean water, buffer solutions, or cleaning fluids. We design the central area of the four-way connector for pressure equalization, preventing concentrated impact or stagnation of internal flow. It is suitable for fixed installation in complex process modules, providing stable connection points for automatic control valve groups and ensuring clean and reliable system operation over the long term.
| Size | A | L1 | T | ||||
| 1/2" | 12.7 | 47.6 | 1.6 | ||||
| 3/4" | 19.05 | 50.8 | 1.6 | ||||
| 1" | 25.4 | 54 | 1.6 | ||||
| 1 1/2" | 38.1 | 60.3 | 1.6 | ||||
| 2" | 50.8 | 73 | 1.6 | ||||
| 2 1/2" | 63.5 | 79.4 | 1.6 | ||||
| 3" | 76.2 | 85.7 | 1.6 | ||||
| 4" | 101.6 | 104.8 | 2.11 | ||||
| 6" | 152.4 | 1429 | 2.77 |
