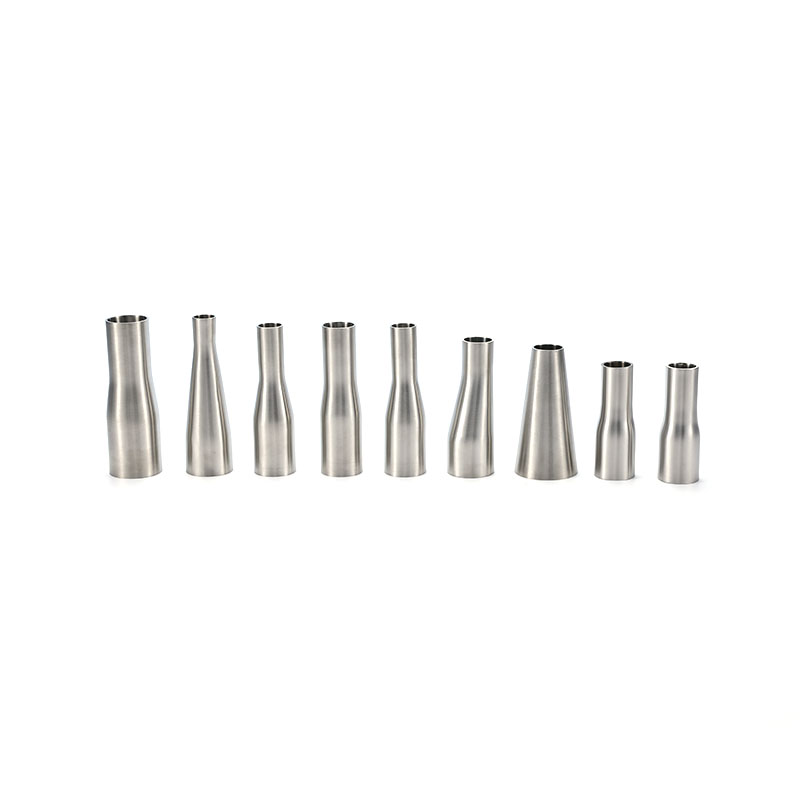

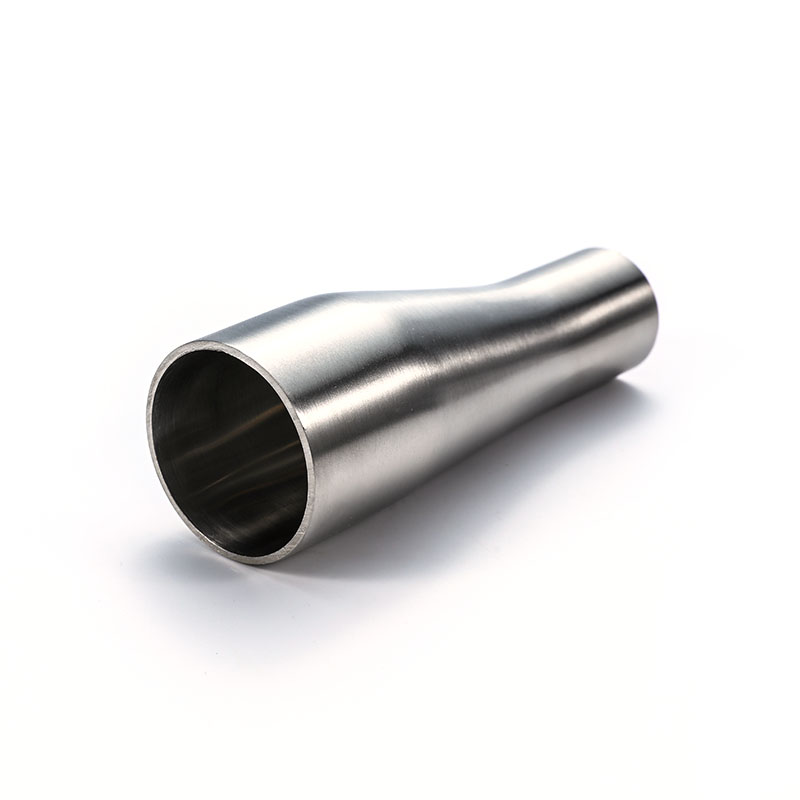

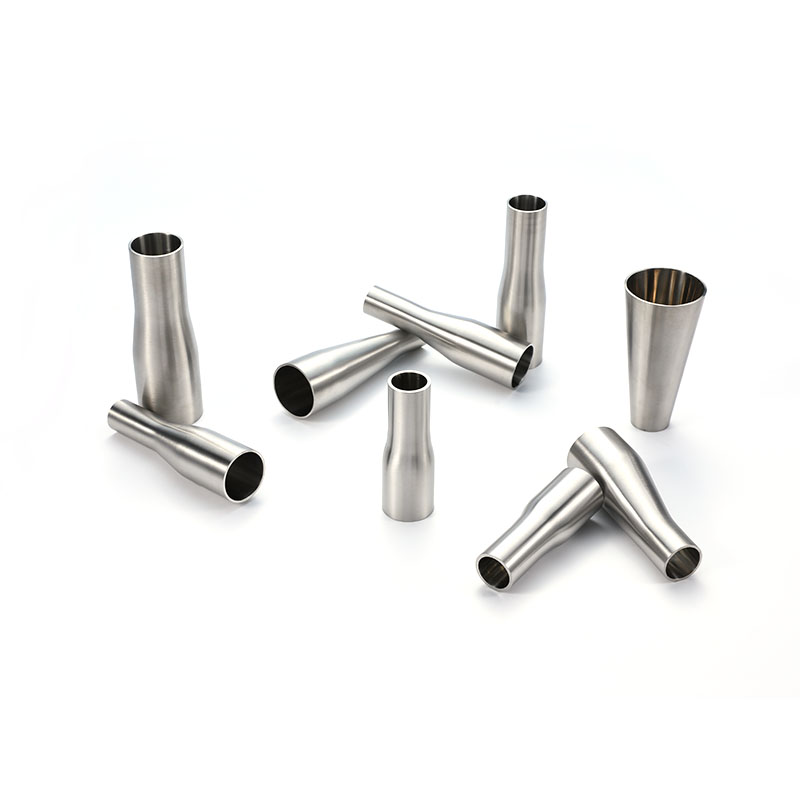

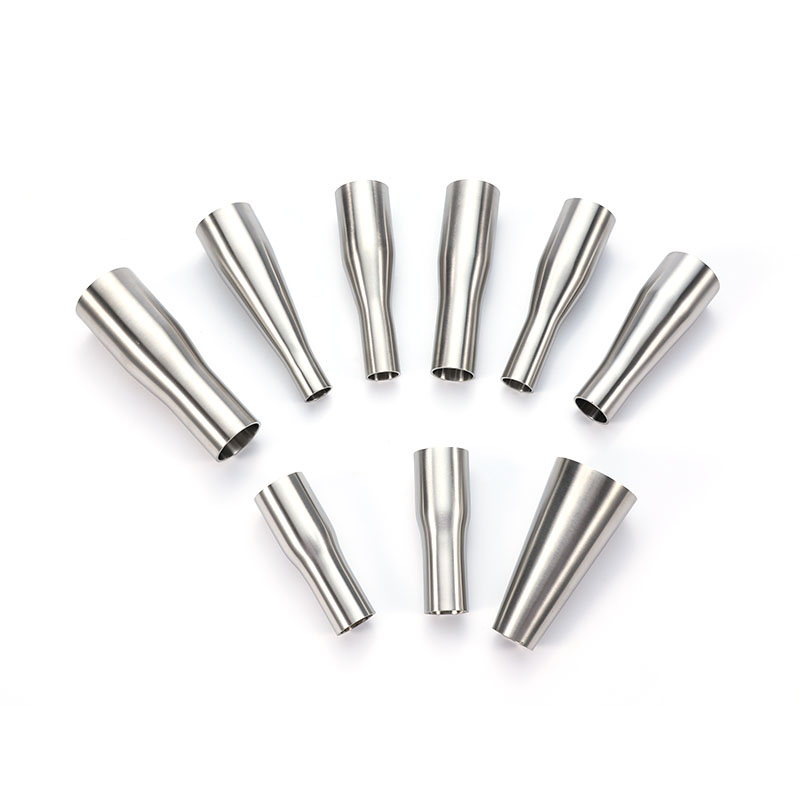

This welding reducer is used for smooth transitions between high-purity pipelines of different diameters. We offer both concentric and eccentric configurations under BPE specifications to suit various applications such as flow stabilization before pumps and tank bottom drainage. The internal expansion and reduction sections are formed using seamless technology, resulting in less fluid shear and lower particle risk, making it ideal for critical fluid transfer systems.

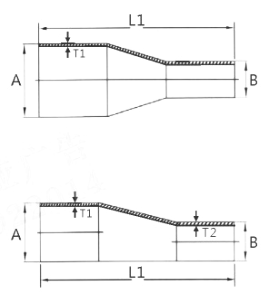

| Size | A×B | L1 | T1×T2 |
| 3/4"-1/2 | 19.05×12.7 | 101.6 | 1.65×1.65 |
| 1"-1/2" | 25.4×12.7 | 114.3 | 1.65×1.65 |
| 1"-3/4 | 25.4×19.05 | 114.3 | 1.65×1.65 |
| 1 1/2"-1/2" | 38.1×12.7 | 139.7 | 1.65×1.65 |
| 1 1/2"-3/4" | 38.1×19.05 | 127 | 1.65×1.65 |
| 1 1/2"-1" | 38.1×25.4 | 127 | 1.65×1.65 |
| 2"-1/2" | 50.8×12.7 | 196.9 | 1.65×1.65 |
| 2"-3/4" | 50.8×19.05 | 184.2 | 1.65×1.65 |
| 2"-1" | 50.8×25.4 | 184.2 | 1.65×1.65 |
| 2"-1 1/2" | 50.8×38.1 | 133.4 | 1.65×1.65 |
| 2 1/2"-1/2" | 63.5×12.7 | 247.7 | 1.65×1.65 |
| 2 1/2"-3/4" | 63.5×19.05 | 235 | 1.65×1.65 |
| 2 1/2"-1 | 63.5×25.4 | 235 | 1.65×1.65 |
| 2 1/2"-1 1/2" | 63.5×38.1 | 184.2 | 1.65×1.65 |
| 2 1/2"-2" | 63.5×50.8 | 139.7 | 1.65×1.65 |
| 3"-1" | 76.2×25.4 | 285.8 | 1.65×1.65 |
| 3"-1 1/2" | 76.2×38.1 | 235 | 1.65×1.65 |
| 3"-2" | 76.2×50.8 | 190.5 | 1.65×1.65 |
| 3"-2 1/2" | 76.2×63.5 | 139.7 | 1.65×1.65 |
| 4"-1" | 76.2×25.4 | 393.7 | 1.65×1.65 |
| 4"-1 1/2 | 76.2×38.1 | 342.9 | 1.65×1.65 |
| 4"-2" | 101.6×50.8 | 298.5 | 2.11×1.65 |
| 4"-2 1/2" | 1016×63.5 | 247.7 | 2.11×1.65 |
| 4"-3" | 101.6×76.2 | 196.9 | 2.11×1.65 |
| 6"-4" | 152.4×101.6 | 254 | 2.8×2.11 |
