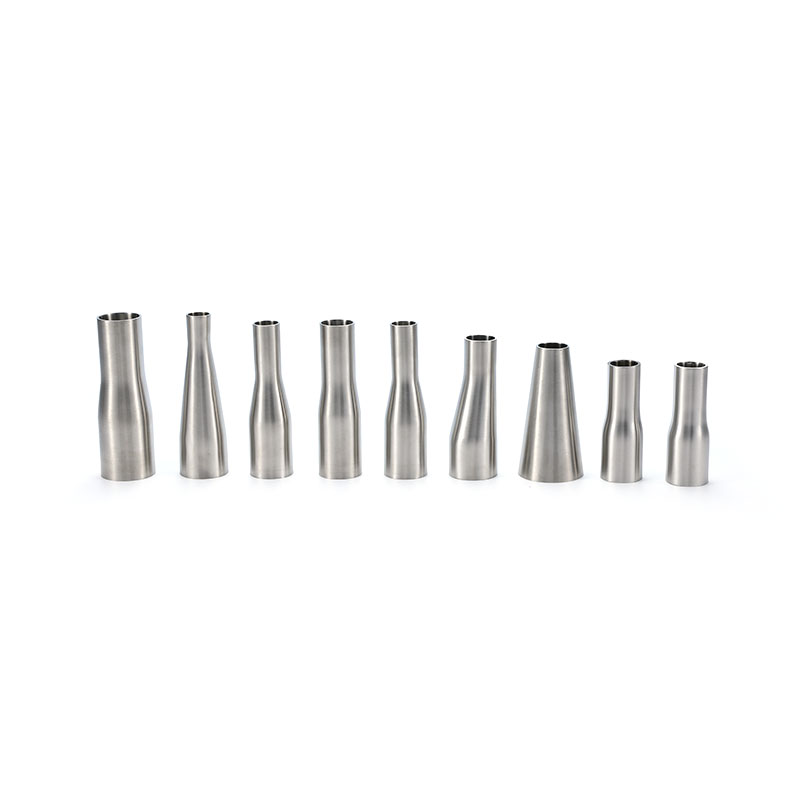

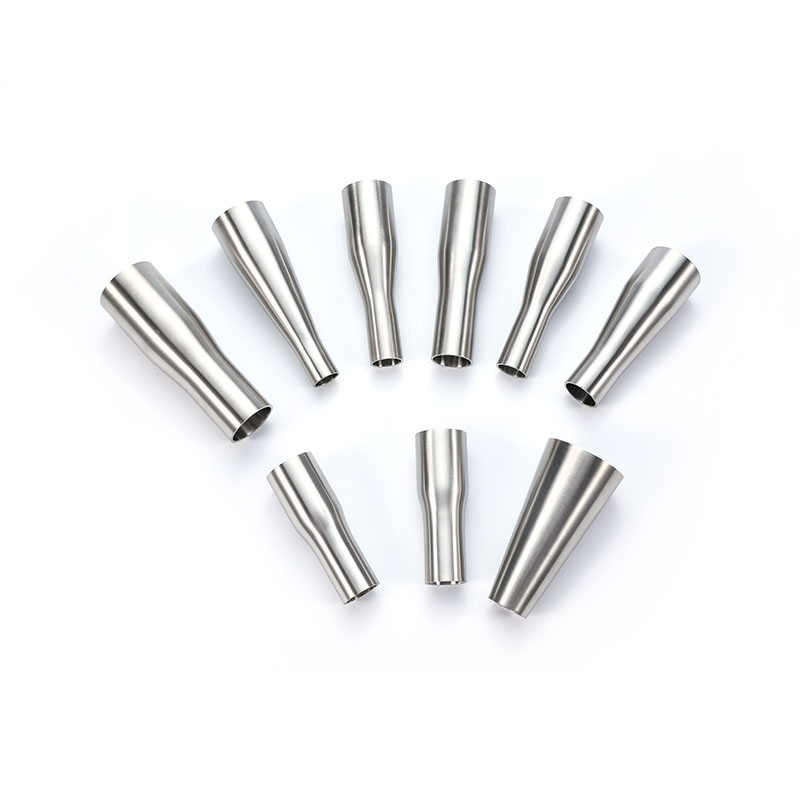

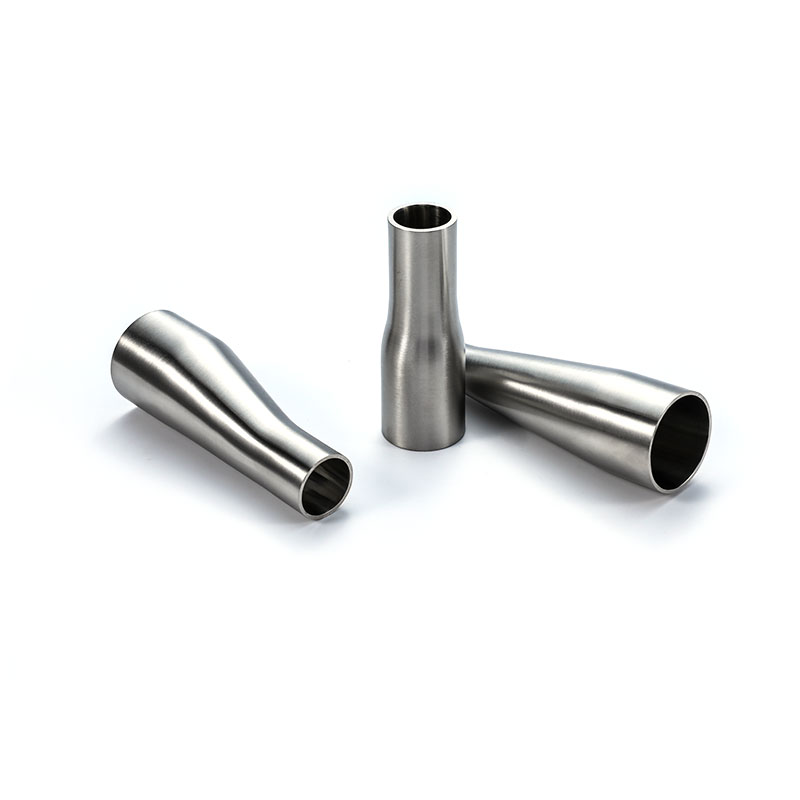

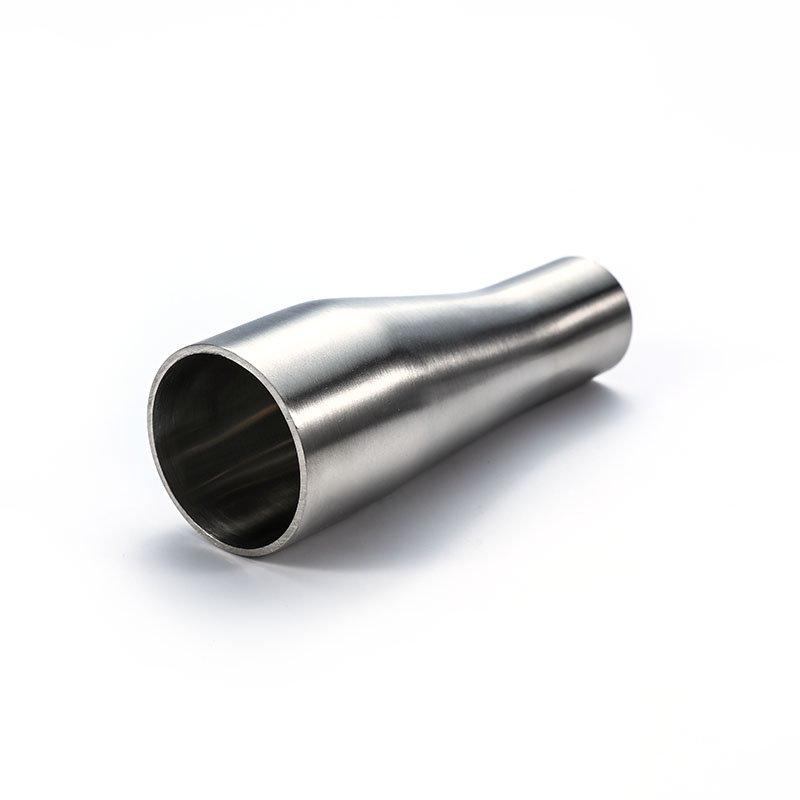

Concentric reducers are used to provide a smooth transition between pipes of different diameters, maintaining linear fluid flow and reducing turbulence and pressure loss. Manufactured to JIS standards with precision machining and a smooth, polished interior, they are suitable for pump inlet reduction, tank connections, and critical process pipelines. With their compact structure and high-pressure resistance, they can be used in key nodes of dairy, beverage, and pharmaceutical fluid transfer systems.
| Size | OD | T | OD1 | T1 | A | B |
| 10A×8A | 17.3 | 1.2 | 13.8 | 1.2 | 36 | 90 |
| 15A×8A | 21.7 | 1.65 | 13.8 | 1.2 | 36 | 100 |
| 15A×10A | 21.7 | 1.65 | 17.3 | 1.2 | 36 | 100 |
| 20A×8A | 27.2 | 1.65 | 13.8 | 1.2 | 36 | 105 |
| 20A×10A | 27.2 | 1.65 | 17.3 | 1.2 | 36 | 105 |
| 20A×15A | 27.2 | 1.65 | 21.7 | 1.65 | 36 | 105 |
| 25A×8A | 34 | 1.65 | 13.8 | 1.2 | 36 | 120 |
| 25A×10A | 34 | 1.65 | 17.3 | 1.2 | 36 | 120 |
| 25A×15A | 34 | 1.65 | 21.7 | 1.65 | 36 | 120 |
| 25A×20A | 34 | 1.65 | 27.2 | 1.65 | 36 | 120 |
| 32A×8A | 42.7 | 1.65 | 13.8 | 1.2 | 46 | 125 |
| 32A×10A | 42.7 | 1.65 | 17.3 | 1.2 | 46 | 125 |
| 32A×15A | 42.7 | 1.65 | 21.7 | 1.65 | 46 | 125 |
| 32A×20A | 42.7 | 1.65 | 27.2 | 1.65 | 46 | 125 |
| 32A×25A | 42.7 | 1.65 | 34 | 1.65 | 46 | 125 |
| 40A×8A | 48.6 | 1.65 | 13.8 | 1.2 | 46 | 130 |
| 40A×10A | 48.6 | 1.65 | 17.3 | 1.2 | 46 | 130 |
| 40A×15A | 48.6 | 1.65 | 21.7 | 1.65 | 46 | 130 |
| 40A×20A | 48.6 | 1.65 | 27.2 | 1.65 | 46 | 130 |
| 40A×25A | 48.6 | 1.65 | 34 | 1.65 | 46 | 130 |
| 40A×32A | 48.6 | 1.65 | 42.7 | 1.65 | 46 | 130 |
| 50A×8A | 60.5 | 1.65 | 13.8 | 1.2 | 46 | 140 |
| 50A×10A | 60.5 | 1.65 | 17.3 | 1.2 | 46 | 140 |
| 50A×15A | 60.5 | 1.65 | 21.7 | 1.65 | 46 | 140 |
| 50A×20A | 60.5 | 1.65 | 27.2 | 1.65 | 46 | 140 |
| 50A×25A | 60.5 | 1.65 | 34 | 1.65 | 46 | 140 |
| 50A×32A | 60.5 | 1.65 | 42.7 | 1.65 | 46 | 140 |
| 50A×40A | 60.5 | 1.65 | 48.6 | 1.65 | 46 | 140 |
| 65A×15A | 76.3 | 2.1 | 21.7 | 1.65 | 51 | 165 |
| 65A×20A | 76.3 | 2.1 | 27.2 | 1.65 | 51 | 165 |
| 65A×25A | 76.3 | 2.1 | 34 | 1.65 | 51 | 165 |
| 65A×32A | 76.3 | 2.1 | 42.7 | 1.65 | 51 | 165 |
| 65A×40A | 76.3 | 2.1 | 48.6 | 1.65 | 51 | 165 |
