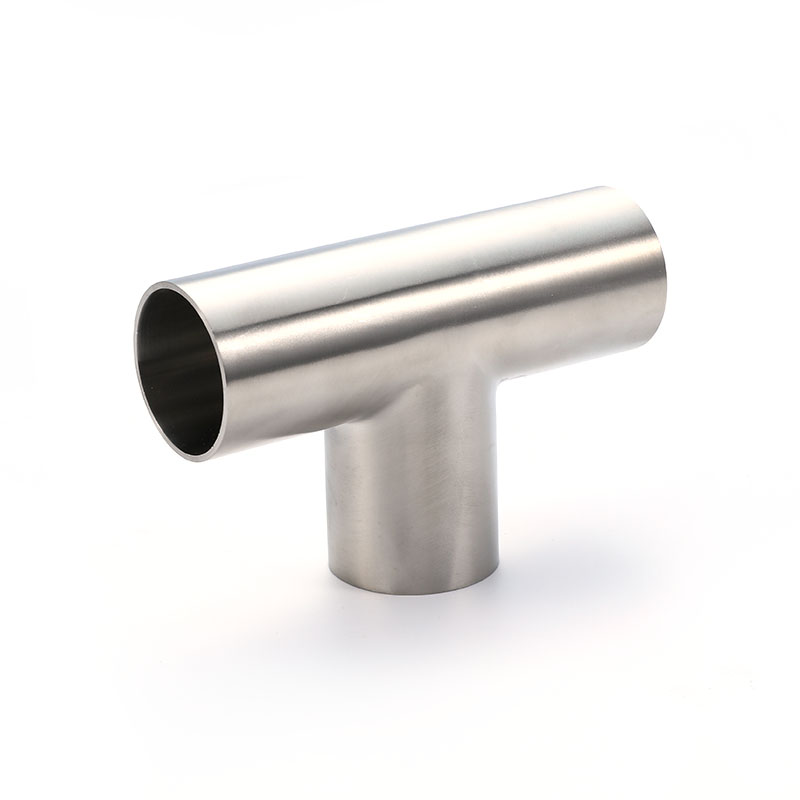

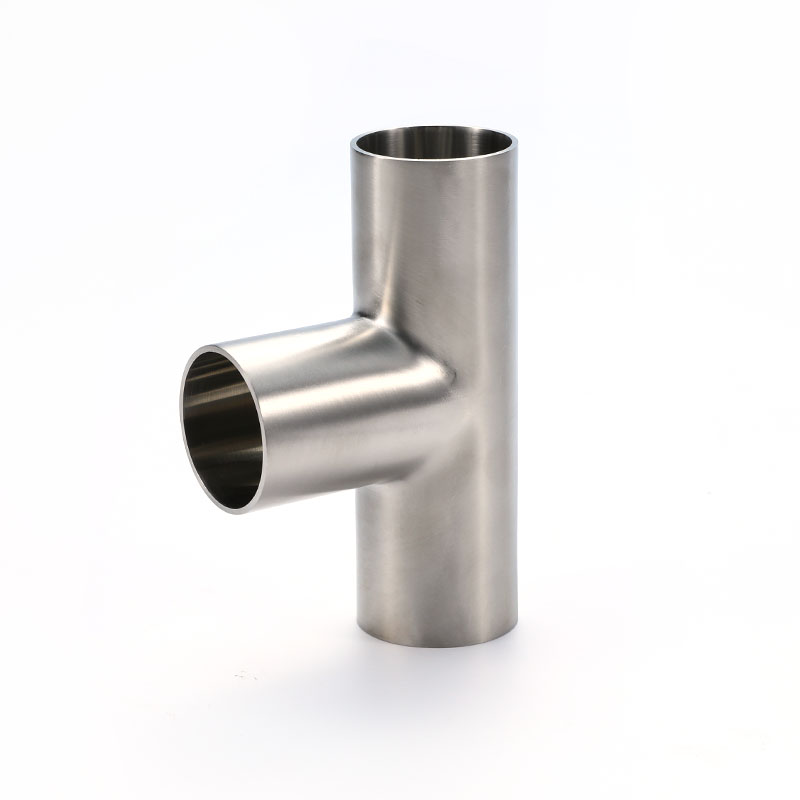

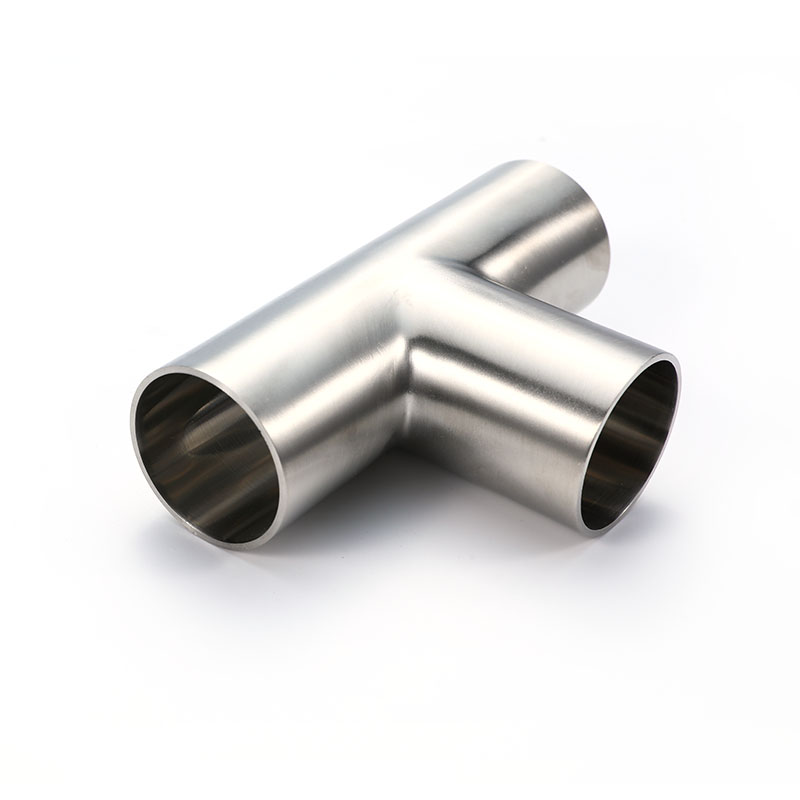

Welded tees offer higher strength and pressure resistance, making them suitable for continuous production or high-flow pipelines. The smooth internal transitions reduce turbulence and dead zones, meeting the cleanliness requirements for sanitary fluids. The welded ports are precisely polished, facilitating on-site welding, installation, and verification, and are widely used in dairy, juice, and pharmaceutical processes for branching or converging flow points.
| Size | OD | T | OD1 | T1 | A | B |
| 10A×8A | 17.3 | 1.2 | 13.8 | 1.2 | 47 | 44 |
| 15A×8A | 21.7 | 1.65 | 13.8 | 1.2 | 47 | 44 |
| 15A×10A | 21.7 | 1.65 | 17.3 | 1.2 | 52 | 52 |
| 20A×8A | 27.2 | 1.65 | 13.8 | 1.2 | 47 | 47 |
| 20A×10A | 27.2 | 1.65 | 17.3 | 1.2 | 55 | 55 |
| 20A×15A | 27.2 | 1.65 | 21.7 | 1.65 | 55 | 55 |
| 25A×8A | 34 | 1.65 | 13.8 | 1.2 | 47 | 50 |
| 25A×10A | 34 | 1.65 | 17.3 | 1.2 | 59 | 59 |
| 25A×15A | 34 | 1.65 | 21.7 | 1.65 | 59 | 59 |
| 25A×20A | 34 | 1.65 | 27.2 | 1.65 | 59 | 59 |
| 32A×8A | 42.7 | 1.65 | 13.8 | 1.2 | 57 | 54 |
| 32A×10A | 42.7 | 1.65 | 17.3 | 1.2 | 68 | 62 |
| 32A×15A | 42.7 | 1.65 | 21.7 | 1.65 | 68 | 62 |
| 32A×20A | 42.7 | 1.65 | 27.2 | 1.65 | 68 | 62 |
| 32A×25A | 42.7 | 1.65 | 34 | 1.65 | 68 | 62 |
| 40A×8A | 48.6 | 1.65 | 13.8 | 1.2 | 57 | 57 |
| 40A×10A | 48.6 | 1.65 | 17.3 | 1.2 | 68 | 65 |
| 40A×15A | 48.6 | 1.65 | 21.7 | 1.65 | 68 | 65 |
| 40A×20A | 48.6 | 1.65 | 27.2 | 1.65 | 68 | 65 |
| 40A×25A | 48.6 | 1.65 | 34 | 1.65 | 68 | 65 |
| 40A×32A | 48.6 | 1.65 | 42.7 | 1.65 | 77 | 77 |
| 50A×8A | 60.5 | 1.65 | 13.8 | 1.2 | 57 | 63 |
| 50A×10A | 60.5 | 1.65 | 17.3 | 1.2 | 68 | 71 |
| 50A×15A | 60.5 | 1.65 | 21.7 | 1.65 | 68 | 71 |
| 50A×20A | 60.5 | 1.65 | 27.2 | 1.65 | 68 | 71 |
| 50A×25A | 60.5 | 1.65 | 34 | 1.65 | 68 | 71 |
| 50A×32A | 60.5 | 1.65 | 42.7 | 1.65 | 83 | 83 |
| 50A×40A | 60.5 | 1.65 | 48.6 | 1.65 | 83 | 83 |
| 65A×15A | 76.3 | 2.1 | 21.7 | 1.65 | 72 | 79 |
| 65A×20A | 76.3 | 2.1 | 27.2 | 1.65 | 72 | 79 |
| 65A×25A | 76.3 | 2.1 | 34 | 1.65 | 72 | 79 |
| 65A×32A | 76.3 | 2.1 | 42.7 | 1.65 | 88 | 90 |
| 65A×40A | 76.3 | 2.1 | 48.6 | 1.65 | 88 | 90 |
| 65A×50A | 76.3 | 2.1 | 60.5 | 1.65 | 88 | 90 |
| 80A×15A | 89.1 | 2.1 | 21.7 | 1.65 | 72 | 85 |
| 80A×20A | 89.1 | 2.1 | 27.2 | 1.65 | 72 | 85 |
| 80A×25A | 89.1 | 2.1 | 34 | 1.65 | 72 | 85 |
| 80A×32A | 89.1 | 2.1 | 42.7 | 1.65 | 88 | 96 |
| 80A×40A | 89.1 | 2.1 | 48.6 | 1.65 | 88 | 96 |
| 80A×50A | 89.1 | 2.1 | 60.5 | 1.65 | 88 | 96 |
| 80A×65A | 89.1 | 2.1 | 76.3 | 2.1 | 103 | 103 |
| 100A×15A | 114.3 | 2.1 | 21.7 | 1.65 | 72 | 98 |
| 100A×20A | 114.3 | 2.1 | 27.3 | 1.65 | 72 | 98 |
| 100A×25A | 114.3 | 2.1 | 34 | 1.65 | 72 | 98 |
| 100A×32A | 114.3 | 2.1 | 42.7 | 1.65 | 88 | 109 |
| 100A×40A | 114.3 | 2.1 | 48.6 | 1.65 | 88 | 109 |
| 100A×50A | 114.3 | 2.1 | 60.5 | 1.65 | 88 | 109 |
| 100A×65A | 114.3 | 2.1 | 76.3 | 2.1 | 116 | 116 |
| 100A×80A | 114.3 | 2.1 | 89.1 | 2.1 | 116 | 116 |
