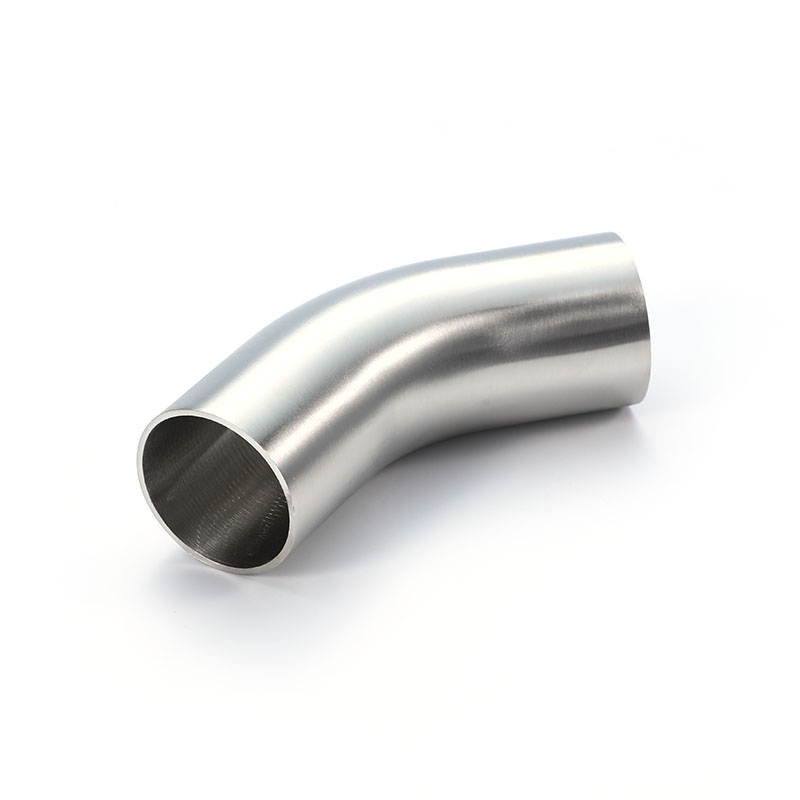

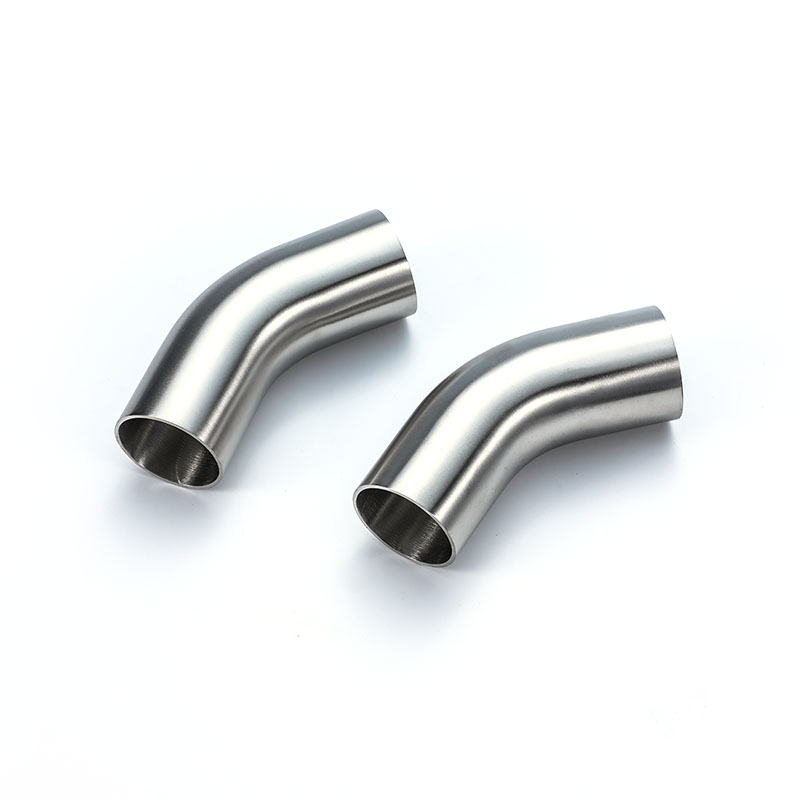

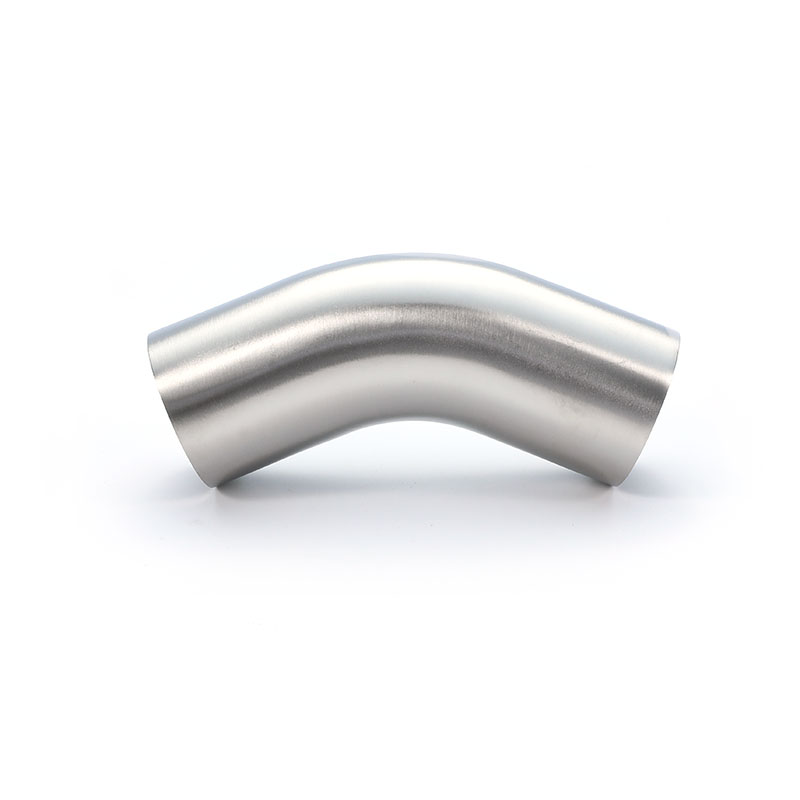

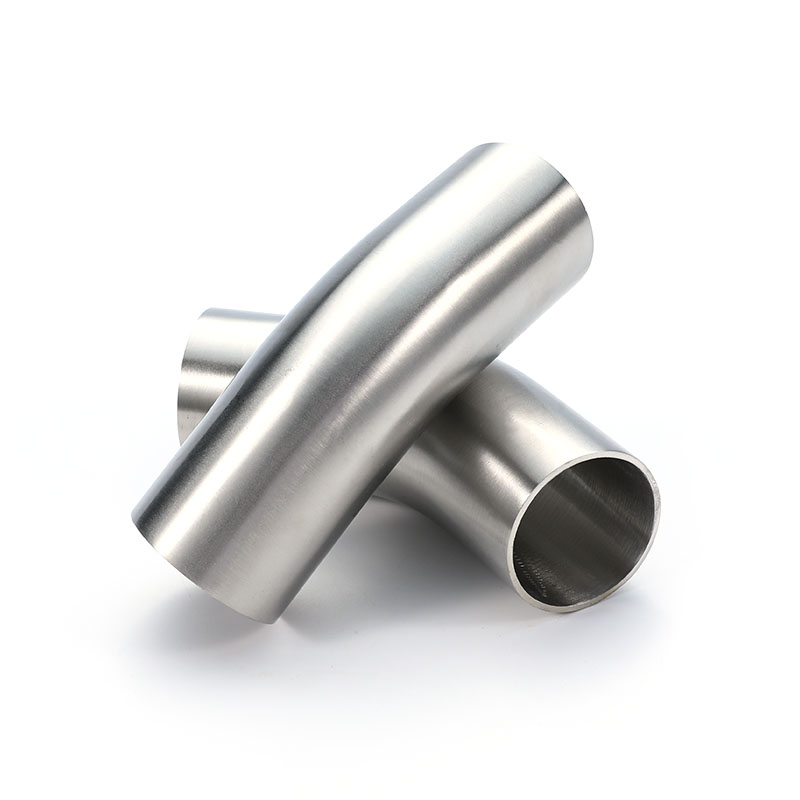

This 45° elbow is used for slight changes in direction or flow adjustment. The fluid experiences minimal shear stress when passing through the bend, making it suitable for conveying sensitive liquids or high-purity media. Manufactured to JIS standards with precision machining, it features a smooth inner wall and uniform welding port dimensions for easy and quick connection to equipment. It is commonly used for directional changes in small production lines or laboratory-scale piping systems.
| Size | OD | T | R | A | |
| 8A | 13.8 | 1.2 | 25.4 | 40 | |
| 10A | 17.3 | 1.2 | 25.4 | 47 | |
| 15A | 21.7 | 1.65 | 38.1 | 52 | |
| 20A | 27.2 | 1.65 | 38.1 | 52 | |
| 25A | 34 | 1.65 | 38.1 | 52 | |
| 32A | 42.7 | 1.65 | 47.6 | 66 | |
| 40A | 48.6 | 1.65 | 57.2 | 70 | |
| 50A | 60.5 | 1.65 | 76.2 | 78 | |
| 65A | 76.3 | 2.1 | 95.3 | 91 | |
| 80A | 89.1 | 2.1 | 114.3 | 99 | |
| 100A | 114.3 | 2.1 | 152.4 | 115 | |
This 45° welding elbow is manufactured to DIN sanitary standards and is used in piping systems to provide a smooth change of direction, reducing fluid flow resistance. Made from high-quality 304/316L ...
See Details
Standard 90° SMS welded elbows are primarily used for right-angle connections in sanitary piping systems and are common basic components in Nordic dairy and beverage engineering. They are manufactured...
See Details
The elongated tee fitting provides more stable flow distribution, and its extended section reduces turbulence at the branch inlet, making it suitable for high-precision metering systems. The product f...
See Details
Clamp-type tees are suitable for food companies with multiple recipes and batches, allowing for quick switching of branch connections. Assembly can be completed without welding, significantly reducing...
See Details
The short-type four-way connector provides a compact four-way connection solution for complex process networks. Its short block structure is particularly suitable for multi-branch piping in equipment-...
See Details
This reducer is suitable for connecting pipes of different diameters and features a symmetrical, concentric structure for smoother flow transitions. The welded ends provide a high-strength connection,...
See Details
This 45° welded elbow is manufactured according to ISO/IDF international dairy standards and is suitable for medium-angle turning requirements in global food processing equipment. The curved section i...
See Details
Welded ISO/IDF tees are suitable for stable flow splitting and combining processes. The three-way junction is designed with rounded corners to minimize impact and stagnation of fluids during distribut...
See Details
This 45° long-radius welding elbow features a longer bending radius, allowing for a smoother fluid transition while changing direction, thus reducing turbulence and pressure loss. We use thickened pip...
See Details
The 90° welded elbow is the most commonly used corner fitting in imperial sanitary piping systems. We ensure precise angles and uniform wall thickness through automatic pipe bending and plasma welding...
See Details
This 90° welded elbow features precise bending and a mirror-polished inner surface, making it ideal for pharmaceutical piping systems requiring complete cleanability and verifiability. We maintain str...
See Details
This 90° clamp elbow is designed for systems requiring quick adjustments or frequent disassembly, such as validation areas and filter outlet connections. We utilize a highly polished clamp face to ens...
See Details
Wenzhou Dicheng Fluid Equipment Co., Ltd. is located in the renowned Wenzhou Valve Industry Cluster. As an established manufacturer, we specialize in the R&D, production, and sales of fluid equipment, valves, and pipeline accessories. Our core products, including stainless steel valves and pipe fittings, are widely used in the chemical, HVAC, water treatment, and environmental protection industries. Featuring excellent sealing, high corrosion resistance, and reliable operation, our products meet both standard specifications and customized requirements.
Leveraging the mature local industrial chain and equipped with professional manufacturing and testing facilities, we uphold the principles of precision craftsmanship and corporate integrity. We provide one-stop integrated solutions that deliver high efficiency and exceptional cost-effectiveness. Dicheng is committed to building long-term partnerships with global clients for mutual growth and success.
Export City
0+
Production Capacity（Million）
0+
R & D team
0+
Factory Area（square meters）
0+In food production, beverage processing, and other hygiene-sensitive environments, piping components must support more than fluid transfer. Their geometry, connection arrangement, and surface conditio...
Sanitary piping projects often require a combination of elbows, tees, reducers, unions, clamps, and other connection components. Even when each fitting meets its individual specification, poor purchas...
Sanitary piping systems are used in food processing, beverage production, pharmaceutical manufacturing, and other applications where cleanliness and reliable connections matter. A fitting that appears...
