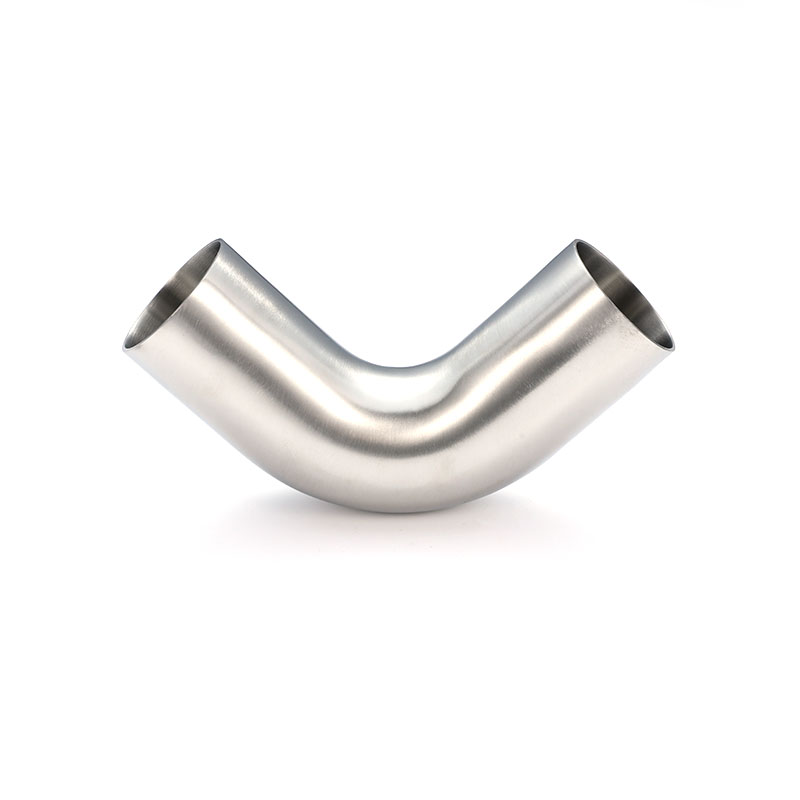

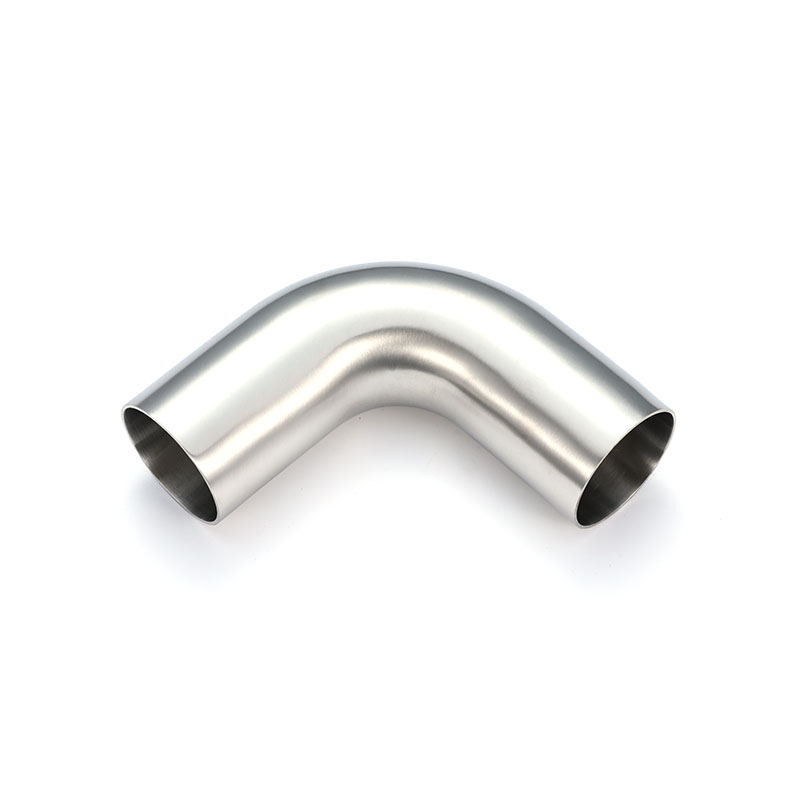

This 90° elbow is manufactured according to Japanese JIS sanitary standards and is suitable for right-angle turns in piping systems. The elbow utilizes a precision bending process to ensure uniform wall thickness and features a mirror-polished inner surface to minimize media residue. Its robust structure can withstand high pressure and frequent cleaning, making it ideal for right-angle flow adjustments in piping systems for the dairy, beverage, and pharmaceutical industries. It is a key component for equipment modularization and space optimization.
| Size | OD | T | R | A | |
| 8A | 13.8 | 1.2 | 25.4 | 55 | |
| 10A | 17.3 | 1.2 | 25.4 | 62 | |
| 15A | 21.7 | 1.65 | 38.1 | 75 | |
| 20A | 27.2 | 1.65 | 38.1 | 75 | |
| 25A | 34 | 1.65 | 38.1 | 75 | |
| 32A | 42.7 | 1.65 | 47.6 | 94 | |
| 40A | 48.6 | 1.65 | 57.2 | 104 | |
| 50A | 60.5 | 1.65 | 76.2 | 123 | |
| 65A | 76.3 | 2.1 | 95.3 | 147 | |
| 80A | 89.1 | 2.1 | 114.3 | 166 | |
| 100A | 114.3 | 2.1 | 152.4 | 204 | |
