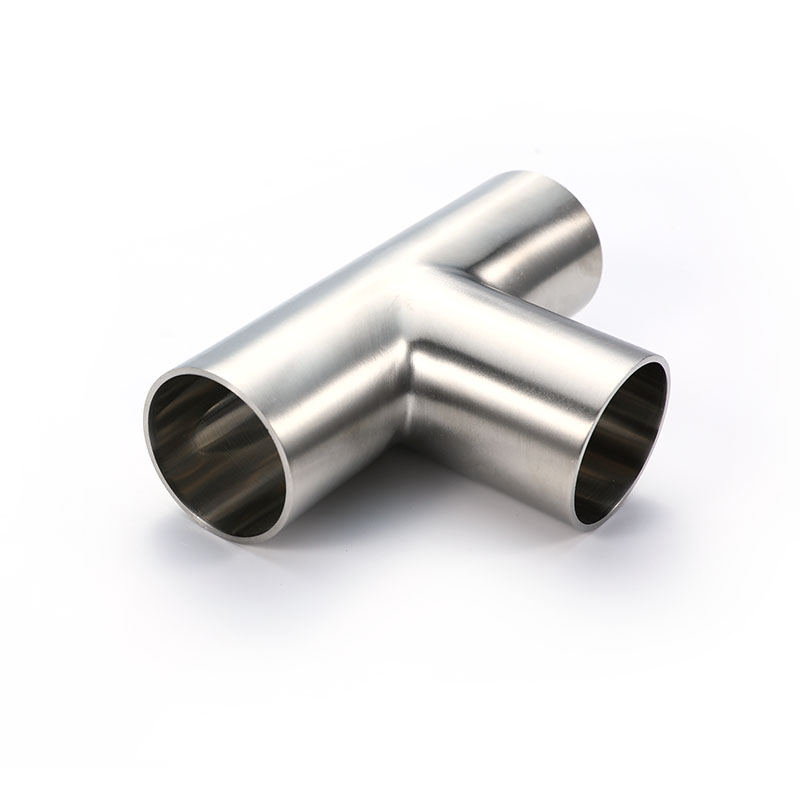

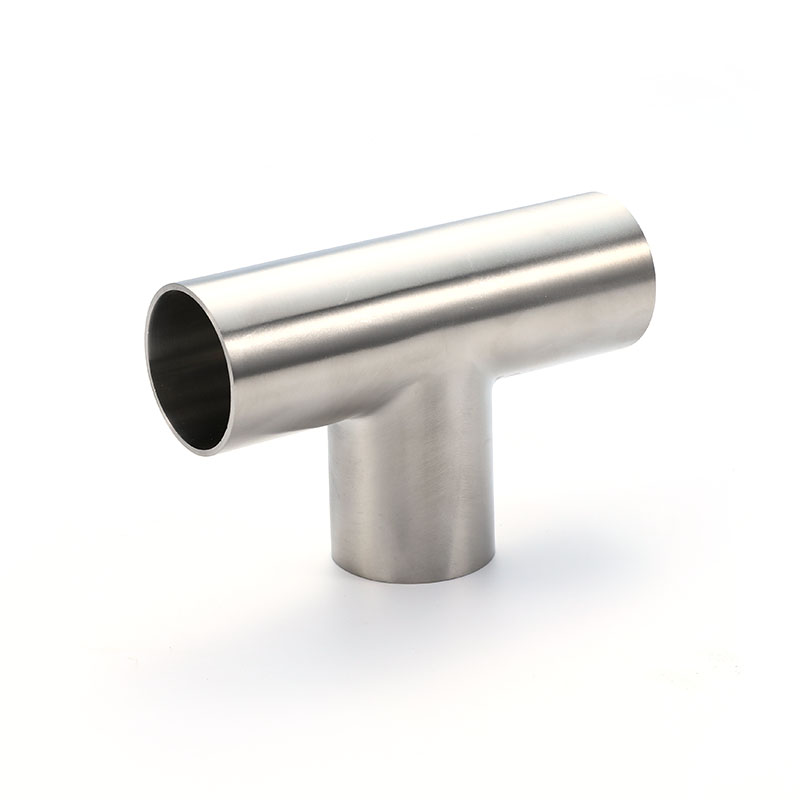

Equal-diameter tees are used for standard branching or merging of a main pipe with two branch pipes, ensuring balanced fluid distribution. We utilize a one-piece molding process to ensure smooth internal transitions and eliminate dead spaces, facilitating CIP/SIP cleaning. Their standardized dimensions are compatible with Japanese and export-type equipment piping, making them suitable for food, dairy, and low-viscosity liquid transfer systems.
| Size | OD | T | R | A | |
| 8A | 13.8 | 1.2 | 42 | 84 | |
| 10A | 17.3 | 1.2 | 49 | 98 | |
| 15A | 21.7 | 1.65 | 59 | 118 | |
| 20A | 27.2 | 1.65 | 65 | 130 | |
| 25A | 34 | 1.65 | 68 | 136 | |
| 32A | 42.7 | 1.65 | 88 | 176 | |
| 40A | 48.6 | 1.65 | 95 | 190 | |
| 50A | 60.5 | 1.65 | 102 | 204 | |
| 65A | 76.3 | 2.1 | 121 | 242 | |
| 80A | 89.1 | 2.1 | 130 | 206 | |
| 100A | 114.3 | 2.1 | 145 | 290 | |
